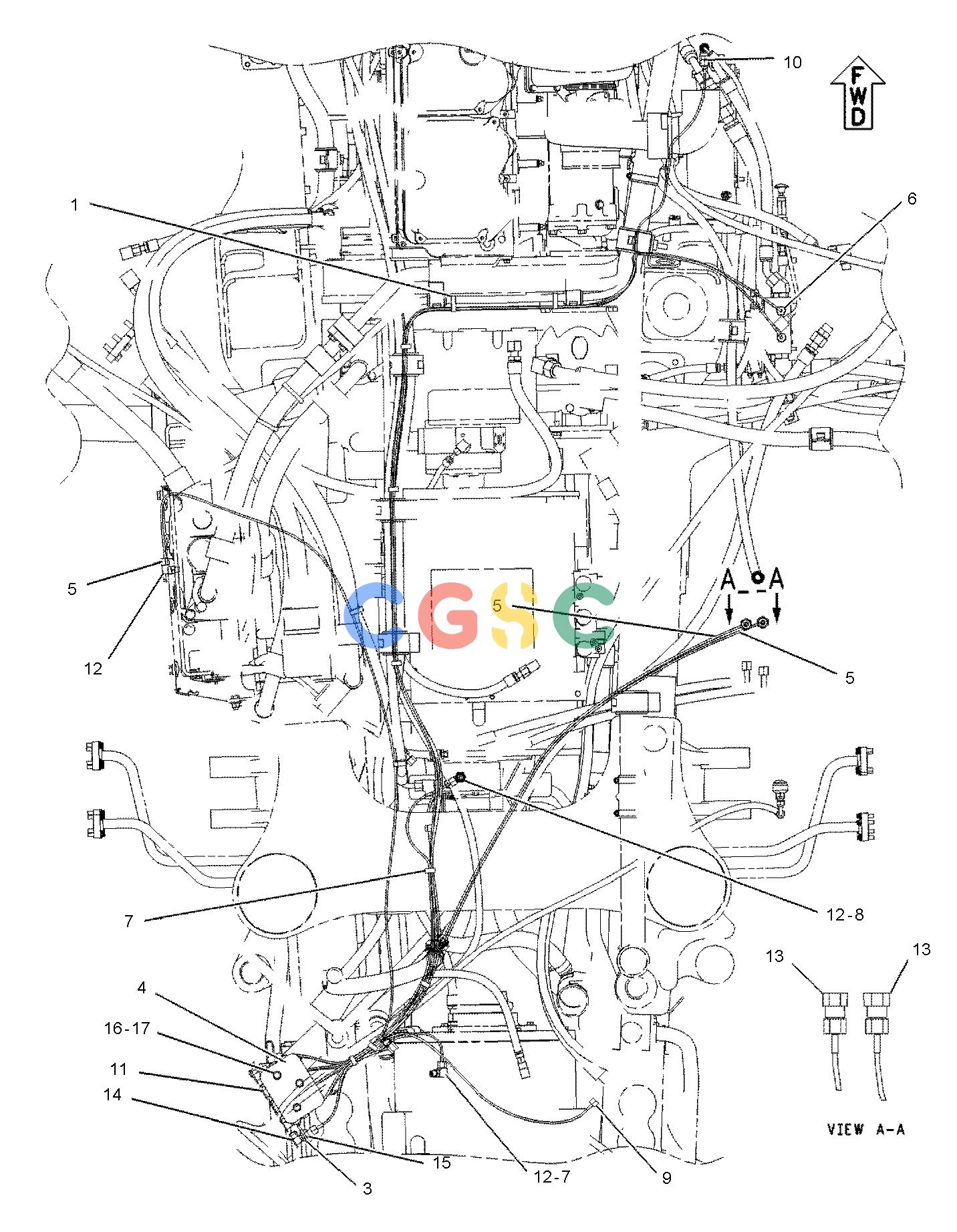

卡特零件查询（735） 179-1712: LINES GP-PRESSURE TEST
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [11] | STRAP | |
| 3. | 121-0530 | [10] | FITTING AS-HYDRAULIC(QUICK DISCONNECT) | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 4. | 185-2620 | [1] | PLATE | |
| 5. | 257-8083 | [3] | HOSE AS | |
| 6. | 257-8092 | [2] | HOSE AS | |
| 7. | 257-8093 | [2] | HOSE AS | |
| 8. | 257-8094 | [1] | HOSE AS | |
| 9. | 257-8095 | [1] | HOSE AS | |
| 10. | 257-8096 | [1] | HOSE AS | |
| 11. | 204-6012 | [1] | BRACKET AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 12. | 148-8378 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8724 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 13. | 148-8415 | [2] | REDUCER AS(ORFS) | |
| | | | (EACH INCLUDES) |
| | 6V-8936 | [1] | REDUCER | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 14. | 6V-0852 | [10] | CAP-DUST | |
| 15. | 6V-9168 | [10] | NUT(11/16-16-THD) | |
| 16. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
