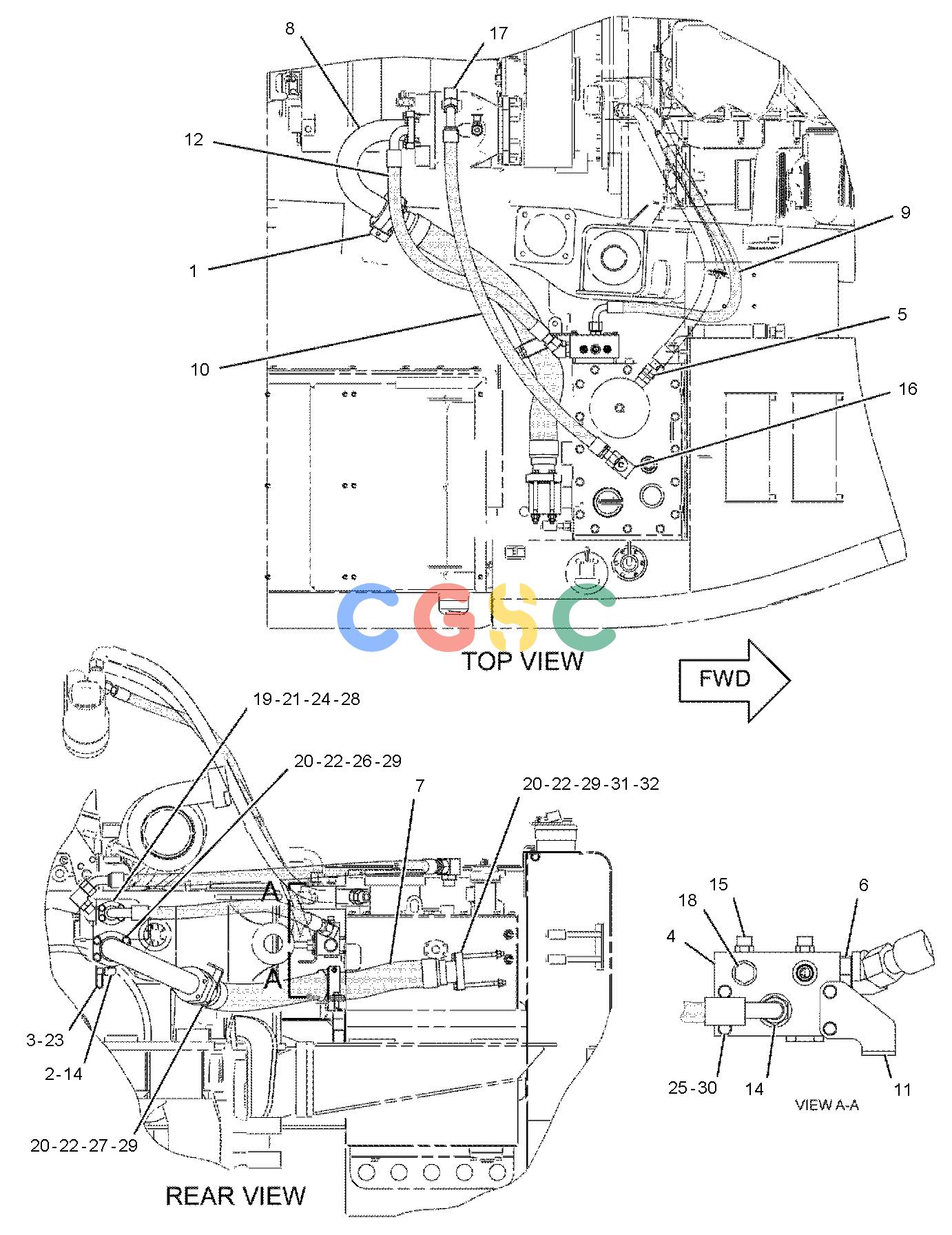

卡特零件查询（735） 227-5289: LINES GP-PUMP
广数供应链运营团队, 15 02月, 2025，浏览：
299 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-2703 | [1] | BRACKET-ANGLE | |
| 2. | 150-3065 | [1] | ELBOW AS | |
| | 6V-0484 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 3. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 4. | 176-5691Y | [1] | VALVE GP-CHECK(STEERING) | |
| 5. | 180-4850 | [1] | VALVE GP-CHECK(STEERING TANK) | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 6. | 188-2008 | [1] | ELBOW AS | |
| | 8T-7970 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 7. | 190-6259I | [1] | HOSE AS | |
| 8. | 191-0884 | [1] | TUBE AS | |
| 9. | 191-0895I | [1] | HOSE AS | |
| 10. | 194-1428I | [1] | HOSE AS | |
| 11. | | [1] | BRACKET |
| 12. | 227-5291I | [1] | HOSE AS | |
| 13. | 148-8309 | [1] | ADAPTER AS | |
| | 2P-8421 | [1] | ADAPTER-O-RING | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| 14. | 148-8327 | [1] | CONNECTOR AS | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 15. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 16. | 148-8357 | [1] | ELBOW AS | |
| | 6V-9008 | [1] | ELBOW | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 17. | 148-8362 | [1] | ELBOW AS | |
| | 8T-6684 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 18. | 148-8411 | [1] | PLUG AS | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 19. | 1P-4578 | [2] | FLANGE-HALF | |
| 20. | 1P-4584 | [6] | FLANGE-HALF | |
| 21. | 4J-0522 | [1] | SEAL-O-RING | |
| 22. | 6J-2680 | [3] | SEAL-O-RING | |
| 23. | 6V-0852 | [1] | CAP-DUST | |
| 24. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4177M | [4] | BOLT(M8X1.25X90-MM) | |
| 26. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 27. | 8T-4194M | [4] | BOLT(M12X1.75X50-MM) | |
| 28. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 29. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 30. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 31. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 32. | 8T-5041M | [4] | BOLT(M12X1.75X120-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
