卡特零件查询（735） 152-7114: LINES GP-TAILGATE

广数供应链运营团队, 15 02月, 2025，浏览： 145 次

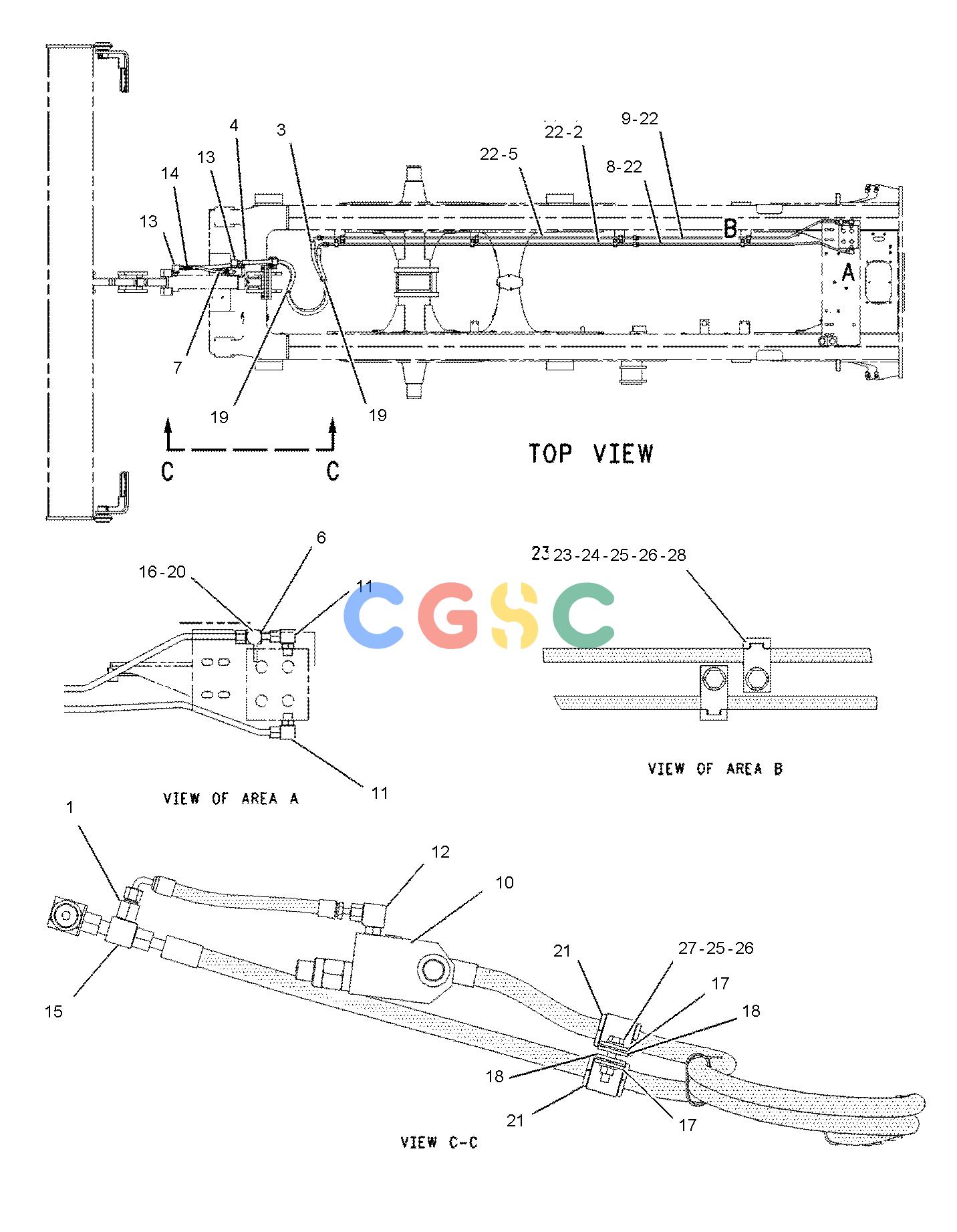

Pos.	Part No	Qty	Parts name
1.	9X-6582	[1]	NUT(13/16-16-THD)
2.	154-5585	[1]	TUBE AS
3.	9U-0361I	[1]	HOSE AS
4.	158-6092I	[1]	HOSE AS
5.		[1]	TUBE AS
6.	164-5586	[1]	TEE AS
	6V-8398	[1]	SEAL-O-RING
	7X-0871	[1]	TEE
7.	164-5847I	[1]	HOSE AS
8.	190-6283	[1]	TUBE AS
9.	224-4286	[1]	TUBE AS
10.	133-8810Y	[1]	VALVE GP-COUNTERBALANCE(TAILGATE)
11.	148-8364	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8625	[1]	ELBOW
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
12.	148-8368	[1]	ELBOW AS
	6V-8627	[1]	ELBOW
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
13.	148-8381	[2]	ELBOW AS
			(EACH INCLUDES)
	8T-5429	[1]	ELBOW
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
14.	148-8419	[1]	REDUCER AS(ORFS)
	6V-8935	[1]	REDUCER
	4J-5477	[1]	SEAL-O-RING
15.	148-8444	[1]	TEE AS-SWIVEL
	6V-9837	[1]	TEE-SWIVEL
	6V-8398	[2]	SEAL-O-RING
16.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	3J-1907	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
17.	5P-7464	[2]	CLIP(SLOT)
18.	5P-7465	[2]	CLIP(TAB)
19.	6U-0455	[2]	STRAP
20.	6V-0852	[1]	CAP-DUST
21.	6V-1249	[2]	GROMMET(22-MM ID)
22.	6V-8398	[4]	SEAL-O-RING
23.	8T-1885	[8]	CLIP(SLOT)
24.	8T-1886	[8]	CLIP(TAB)
25.	8T-4121	[18]	WASHER-HARD(11X21X2.5-MM THK)
26.	8T-4133M	[9]	NUT(M10X1.5-THD)
27.	8T-4185M	[1]	BOLT(M10X1.5X50-MM)
28.	8T-4195M	[8]	BOLT(M10X1.5X30-MM)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
