神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (05-01[00]) - TOOL & ACCESSORY (YM01T00002F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
715 次

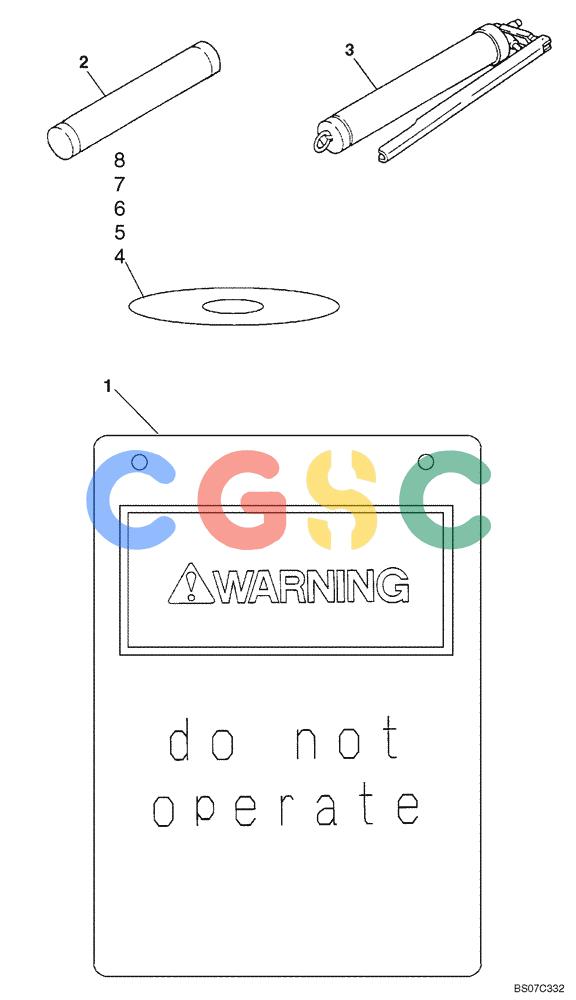

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN20T01320P1 | [1] | LABEL | KOBDecal, Warning, Do not Operate |
| 2. | 2421Z499 | [1] | Grease | |
| 3. | 2421R380 | [1] | GREASE GUN | KOB |
| 4. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 5. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 6. | B16T0442D5 | [1] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 7. | B16T0442D57 | [1] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| 8. | B16T0442D44 | [1] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
