神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (03-01[00]) - FRAME, LOWER (YM02FU0010P1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
317 次

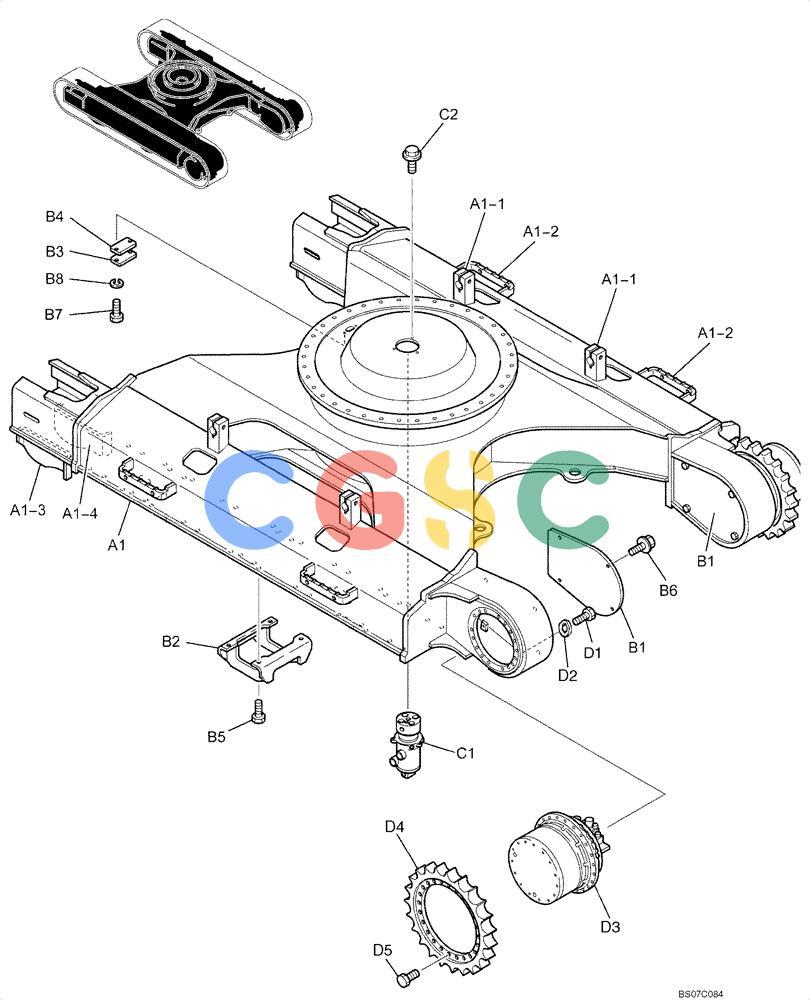

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YM02FU0010P1 | [1] | FRAME | KOBLower Frame, Incls. Refs. A1-1 - A1-4 |
| A1-1. | YN07F01270P1 | [4] | SUPPORT | KOB |
| A1-2. | YN41C00061P1 | [4] | STEP | KOBStep -- Was YN41C00037P1 Superseded by part number: 47488089 |
| A1-3. | YN07F01075P1 | [2] | GUIDE | KOB |
| A1-4. | YN07F01076P1 | [2] | GUIDE | KOB |
| B1. | YM01FU1008P1 | [2] | COVER | KOB |
| B2. | YN63D00003P1 | [2] | GUIDE | KOB Superseded by part number: YN63D00003P2 |
| B3. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| B4. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| B5. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOBM18x1.50x40mm |
| B6. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| B7. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| B8. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| C1. | YN55V00053F1 | [1] | CENTER JOINT | KOBSee Figure 08-39 |
| C2. | ZM73C12025 | [3] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| D1. | ZS18C20055 | [32] | SCREW,Hex, M20 x 55mm | KOBM20x2.50x55mm |
| D2. | YN02F01486P1 | [32] | WASHER | KOBSpecial |
| D3. | YM15V00007F1 | [2] | HYDRAULIC MOTOR | KOBSee Figure 08-11 |
| D4. | YM51D01001P1 | [2] | SPROCKET | KOB |
| D5. | ZS13C16045 | [60] | SCREW | KOBScrew -- M16x2.0x45mm |
