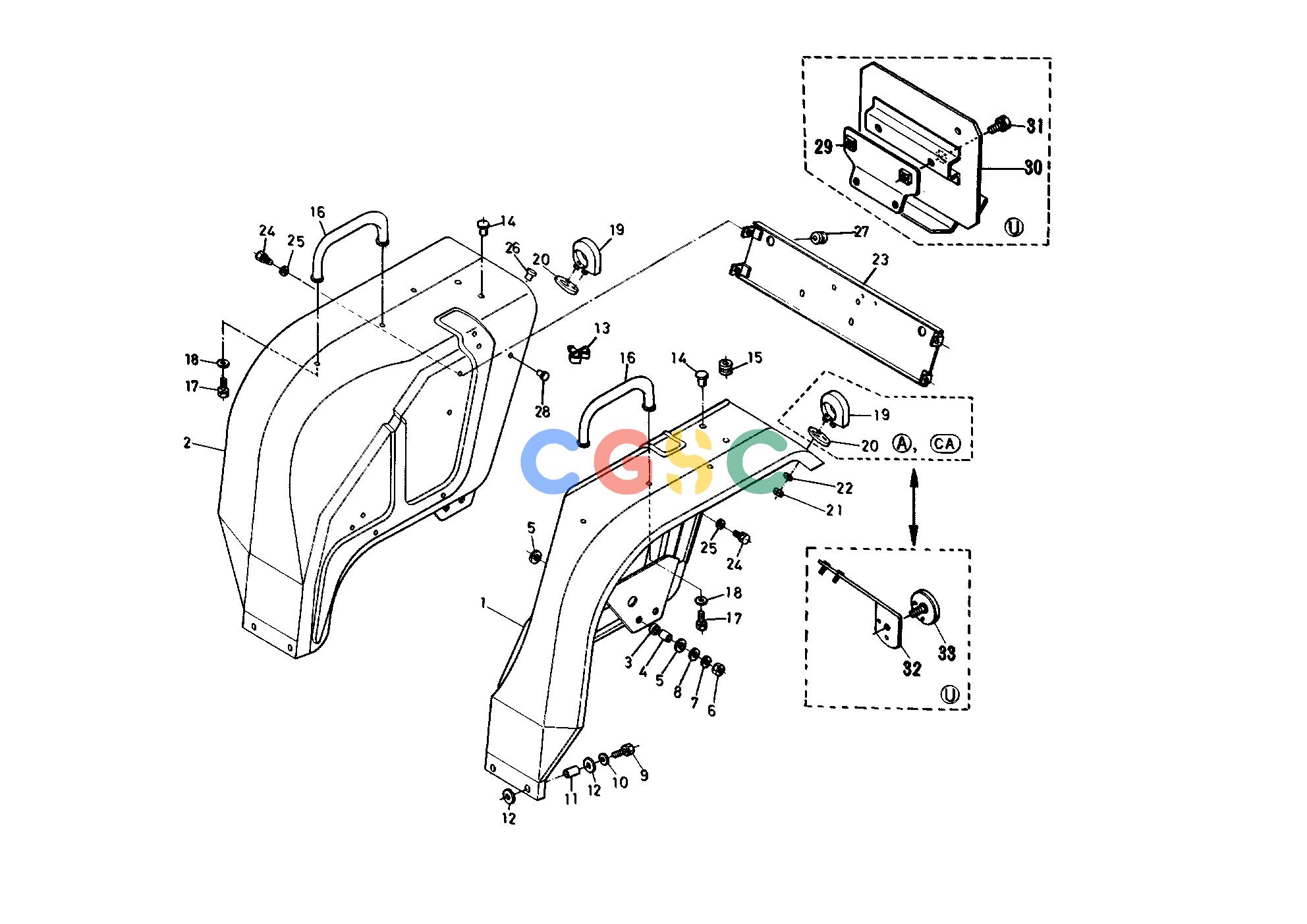

久保田零件查询T05300 FENDER HOOD (BONNET)/CHASSISEPC Kubota online_久保田Kubota_工程机械

久保田零件查询T05300 FENDER HOOD (BONNET)/CHASSISEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 227 次

Pos.	Part No	Qty	Parts name	Comments
001.	6780052116	[1]	FENDER LH	0.0000(lbs); 0.000
002.	6780052126	[1]	FENDER RH	0.0000(lbs); 0.000
003.	6780052140	[4]	SPACER	0.0990(lbs); 0.045
004.	6780052150	[4]	COLLAR	0.0462(lbs); 0.021
005.	6711152160	[8]	RUBBER	0.0066(lbs); 0.003
006.	0217450120	[4]	NUT	0.0220(lbs); 0.010
007.	0451250120	[4]	WASHER SPRING	0.0066(lbs); 0.003
008.	0401550120	[4]	WASHER PLAIN	0.0440(lbs); 0.020
009.	0112350830	[4]	BOLT	0.0330(lbs); 0.015
010.	0401550080	[4]	WASHER PLAIN	0.0220(lbs); 0.010
011.	6711152170	[4]	COLLAR	0.0176(lbs); 0.008
012.	6711152160	[8]	RUBBER	0.0066(lbs); 0.003
013.	6721152770	[5]	CLIP WIRE	0.0110(lbs); 0.005
014.	3824029290	[4]	PLUG	0.0022(lbs); 0.001
015.	3215029180	[2]	CUSHION	0.0044(lbs); 0.002
016.	6780052210	[2]	BALUSTRADE	0.4180(lbs); 0.190
017.	0112350820	[4]	BOLT	0.0242(lbs); 0.011
018.	0401350080	[4]	WASHER PLAIN	0.0066(lbs); 0.003
019.	6780055540	[2]	BRACKET	[A] [CA] 0.2420(lbs); 0.110
020.	6780055530	[2]	RUBBER	[A] [CA] 0.0330(lbs); 0.015
021.	0201450060	[4]	NUT	0.0044(lbs); 0.002
022.	0451250060	[4]	WASHER SPRING	0.0022(lbs); 0.001
023.	6780052250	[1]	STAY FENDER	1.7600(lbs); 0.800
024.	0112350814	[4]	BOLT	0.0220(lbs); 0.010
025.	0401350080	[4]	WASHER PLAIN	0.0066(lbs); 0.003
026.	3824029570	[4]	PLUG	0.0022(lbs); 0.001
027.	3215029180	[2]	CAP RUBBER	0.0044(lbs); 0.002
028.	3824029570	[5]	PLUG	0.0022(lbs); 0.001
029.	6784052220	[1]	STAY LICENCE HOLDER	[U] 0.2640(lbs); 0.120
030.	6660155120	[1]	HOLDER LICENCE	[U] 1.1000(lbs); 0.500
031.	0102050616	[4]	BOLT	[U] 0.0132(lbs); 0.006
032.	6784055540	[2]	STAY	[U] 0.4840(lbs); 0.220
033.	3325134900	[2]	REFLECTOR	[U] 0.0418(lbs); 0.019
