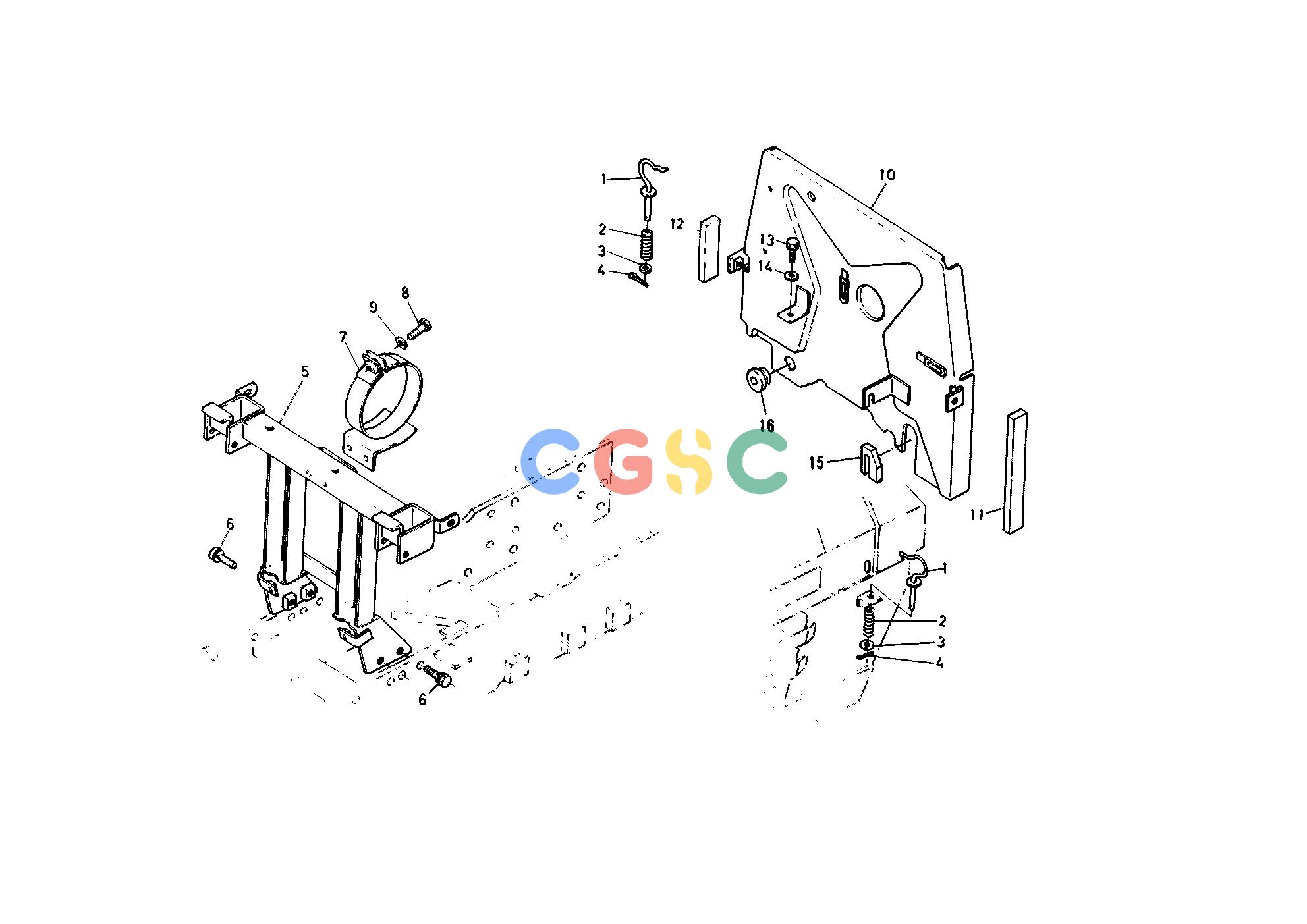

久保田零件查询T05400 BONNET BRACKET HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
915 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780054613
|
[2] |
HOOK BONNET
|
0.0990(lbs); 0.045
|
| 002. |
6780054623
|
[2] |
SPRING
|
0.0110(lbs); 0.005
|
| 003. |
0401550060
|
[2] |
WASHER PLAIN
|
0.0132(lbs); 0.006
|
| 004. |
0551150315
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 005. |
6630154710
|
[1] |
BRACKET BONNET
|
4.4000(lbs); 2.000
|
| 006. |
0113351025
|
[4] |
BOLT
|
0.0506(lbs); 0.023
|
| 007. |
6780054725
|
[1] |
SUPPORT AIR CLEANER
|
0.0000(lbs); 0.000
|
| 008. |
0112350825
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
| 009. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 010. |
6780054814
|
[1] |
COVER
|
0.0000(lbs); 0.000
|
| 011. |
6780054820
|
[1] |
TAPE 1
|
0.0044(lbs); 0.002
|
| 012. |
6780054830
|
[1] |
TAPE 2
|
0.0176(lbs); 0.008
|
| 013. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 014. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 015. |
6780054630
|
[1] |
TAPE 12
|
0.0110(lbs); 0.005
|
| 016. |
3215029180
|
[1] |
CAP RUBBER
|
0.0044(lbs); 0.002
|
