卡特零件查询（735） 188-4455: PUMP GP-GEAR
广数供应链运营团队, 15 02月, 2025，浏览：
316 次

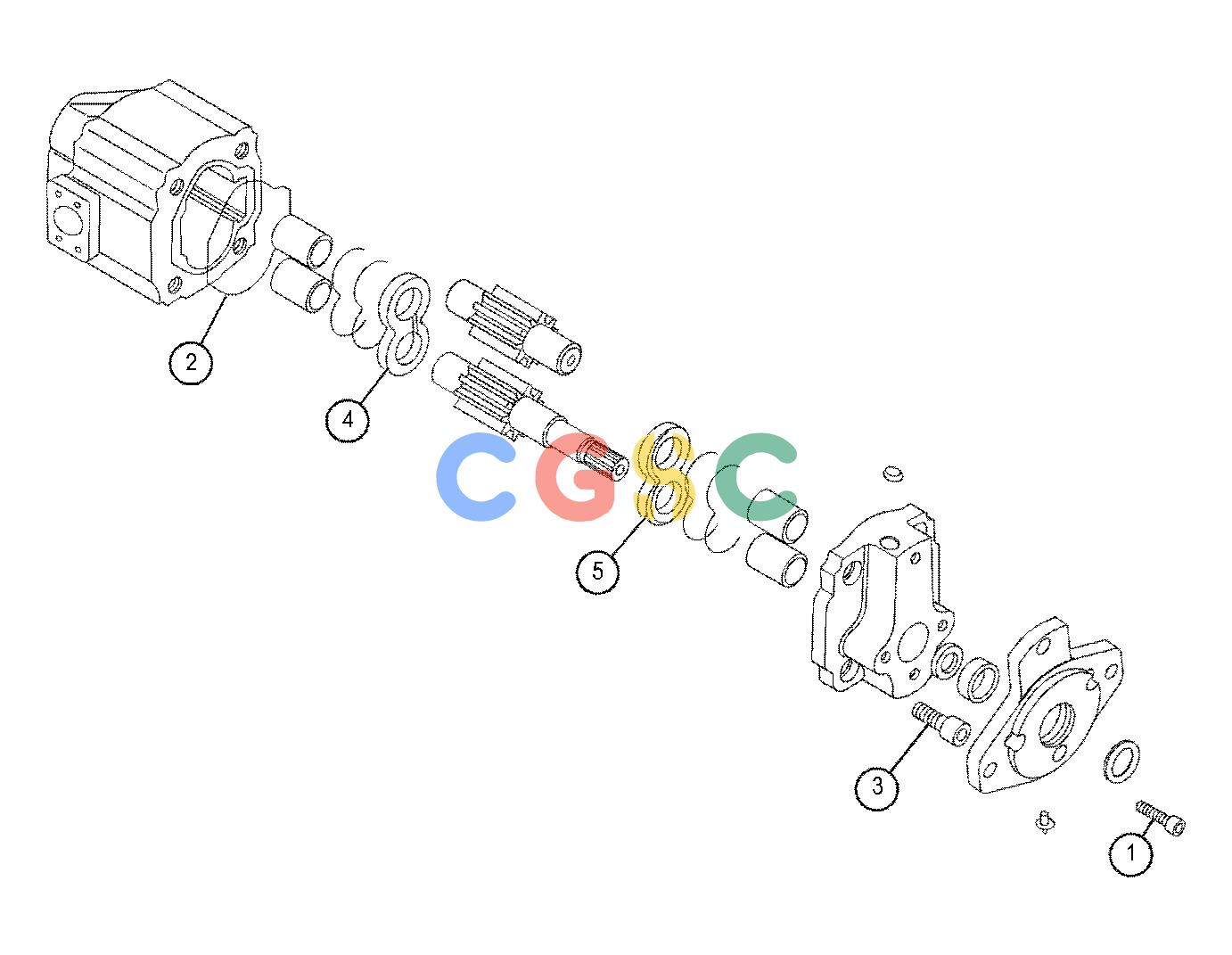

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 170-8553M | [4] | BOLT-SOCKET HEAD(M12X1.75X40-MM) | |
| 2. | 6V-5553 | [1] | SEAL-O-RING | |
| 3. | 118-0589M | [4] | BOLT-SOCKET HEAD(M20X2.5X60-MM) | |
| 4. | 184-4426 | [1] | PLATE-WEAR | |
| 5. | 184-4427 | [1] | PLATE-WEAR | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 184-4429 | [1] | KIT-SEAL(GEAR PUMP) | |
| | | | (INCLUDES SEALS, WEAR PLATES, BACK UP RINGS, SHAFT SEAL, LIP SEAL & O-RINGS) |
| | M | | METRIC PART |
