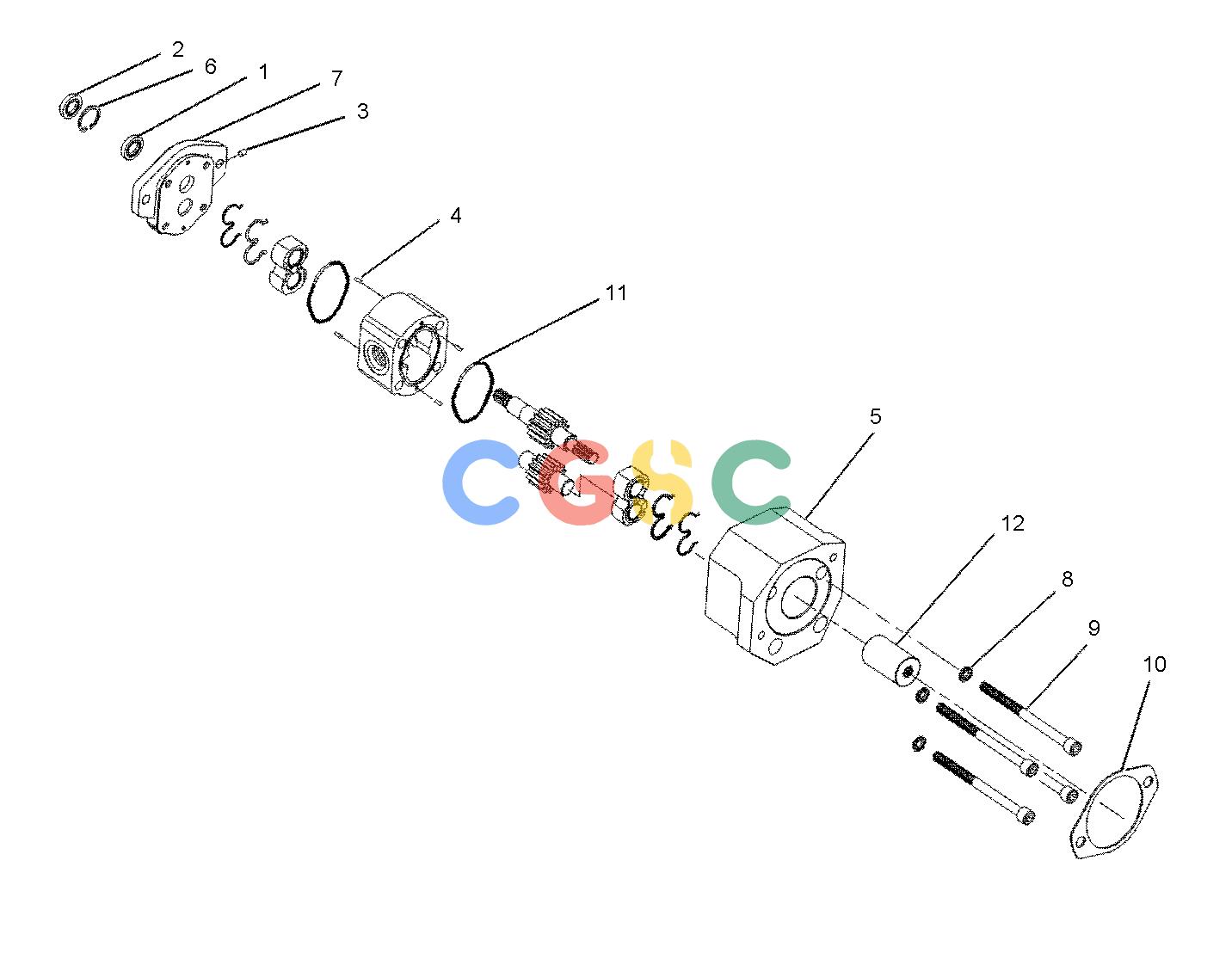

卡特零件查询（735） 201-5733: PUMP GP-GEAR
广数供应链运营团队, 15 02月, 2025，浏览：
679 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-0715J | [1] | SEAL-SHAFT | |
| 2. | 204-4148J | [1] | SEAL-SHAFT | |
| 3. | 6E-2943 | [1] | PLUG | |
| 4. | 099-3095 | [4] | DOWEL | |
| 5. | 196-5731 | [1] | PLATE | |
| 6. | 8J-6273 | [1] | RING-RETAINING | |
| 7. | 204-4147 | [1] | FLANGE | |
| 8. | 192-7640 | [4] | SEAL | |
| 9. | 086-2369M | [4] | BOLT-SOCKET HEAD(M10X1.5X130-MM) | |
| 10. | 117-5268 | [1] | GASKET | |
| 11. | 004-1964J | [2] | SEAL-O-RING | |
| 12. | 204-5174 | [1] | COUPLING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 201-5242J | [1] | KIT-SEAL(GEAR PUMP) | |
| | | | (INCLUDES BACKUP RINGS, SEALS, RETAINING RING, SEAL-O-RINGS & SHAFT SEAL) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
