神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-09[00]) - AIR CLEANER - COMPONENTS (YM11P00009F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
349 次

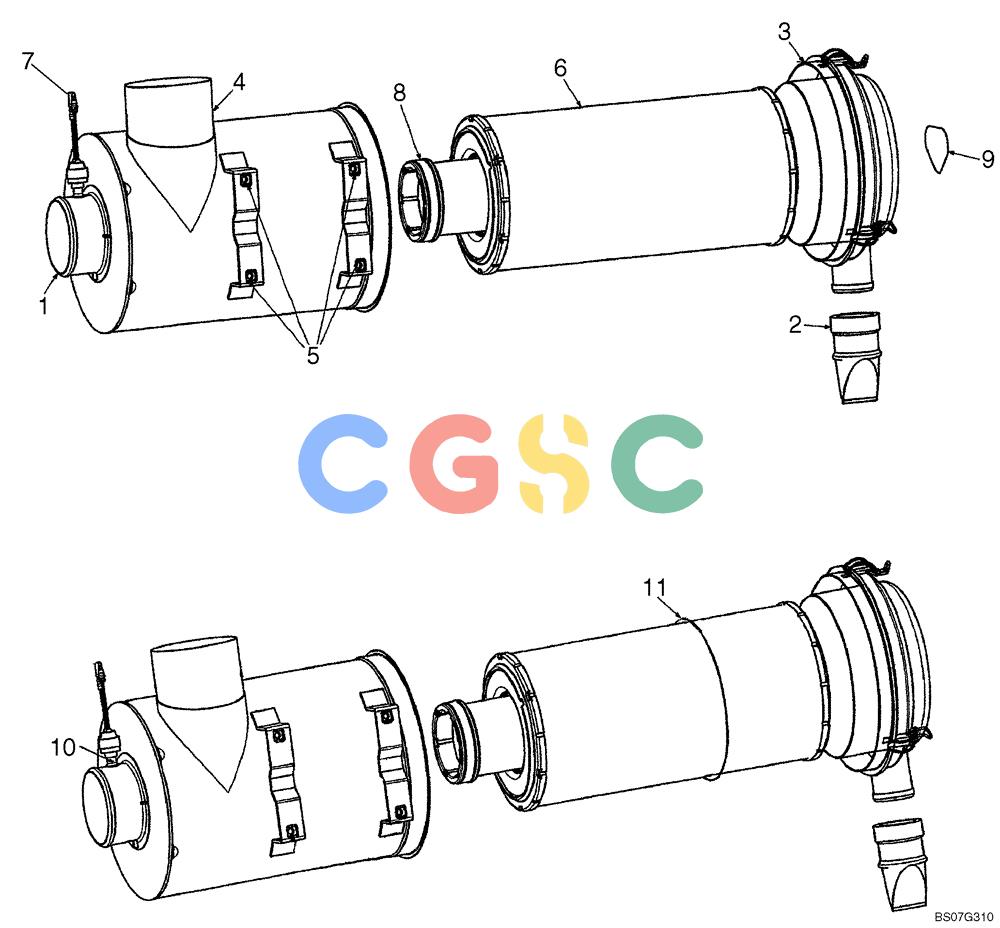

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM11P00009F1 | [1] | CLEANER ASSY. | KOBAir Cleaner - Components |
| 1. | YM11P00009S001 | [1] | Body Assembly | |
| 2. | YM11P00009S002 | [1] | VALVE | KOBValve Assembly Superseded by part number: 8604231 |
| 3. | YM11P00009S003 | [1] | Cover Assembly | |
| 4. | YM11P00009S004 | [1] | BODY | KOBBody Assembly |
| 5. | YM11P00009S005 | [4] | NUT | KOBNut |
| 6. | YM11P01033P1 | [1] | AIR FILTER | KOBElement, Outer (Primary) See Figure 01-01 Superseded by part number: 87682990 |
| 7. | YM11P00009S007 | [1] | INDICATOR | KOBIndicator, Air Filter Restriction Superseded by part number: 72211062 |
| 8. | YM11P01032P1 | [1] | AIR FILTER | KOBElement, Inner (Secondary) See Figure 01-01 Superseded by part number: 87683000 |
| 9. | YM11P00009S009 | [1] | LABEL | KOBLabel |
| 10. | YM11P00009S006 | [1] | Filter | |
| 11. | YM11P00009S005 | [1] | NUT | KOBO-Ring |
