神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-14[00]) - FUEL TANK INSTALLATION (YM20P00020F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
575 次

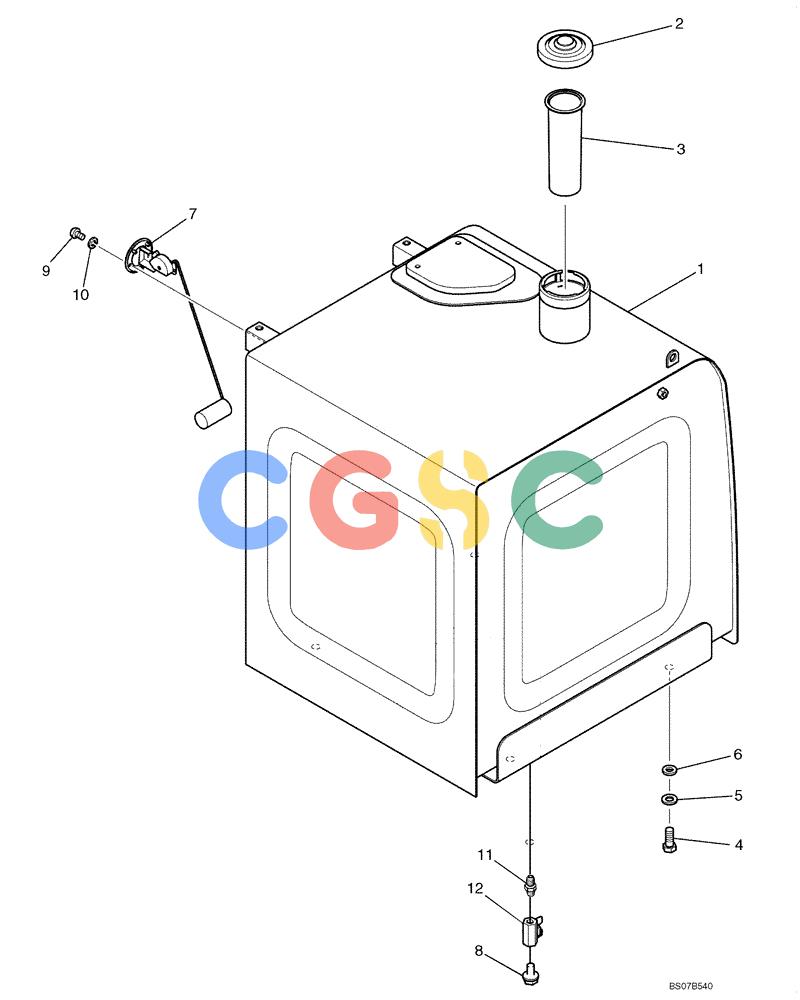

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM20P00022P1 | [1] | FUEL TANK | KOB Superseded by part number: 87576576 |
| 2. | YB20P01085P1 | [1] | CAP | KOBFuel Tank Superseded by part number: 87748274 |
| 3. | YN50V00024P1 | [1] | FILTER STRAINER | KOB Superseded by part number: 72105459 |
| 4. | ZS13C16040 | [4] | SCREW | KOBM16x2.0x40mm |
| 5. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 6. | LE33H01017D1 | [3] | SHIM,1.0mm Thk | KOB(1.0) |
| 7. | YN52S00045F1 | [1] | SENSOR | SMFuel Level |
| . . | YN52S00045S005 | [1] | GASKET | KOB |
| 8. | YB20P01063P1 | [5] | PLUG | KOB1/4in gas cylinder |
| 9. | ZS31C05012 | [5] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBM05x0.8x12mm |
| 10. | ZW26X05000 | [5] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 11. | YB20P01062P1 | [1] | HYD CONNECTOR | KOB1/4"-18 NPTF (male on both ends) Superseded by part number: 217-1080 |
| 12. | YB20P01061P1 | [1] | COCK, DRAIN | KOB Superseded by part number: 71405228 |
