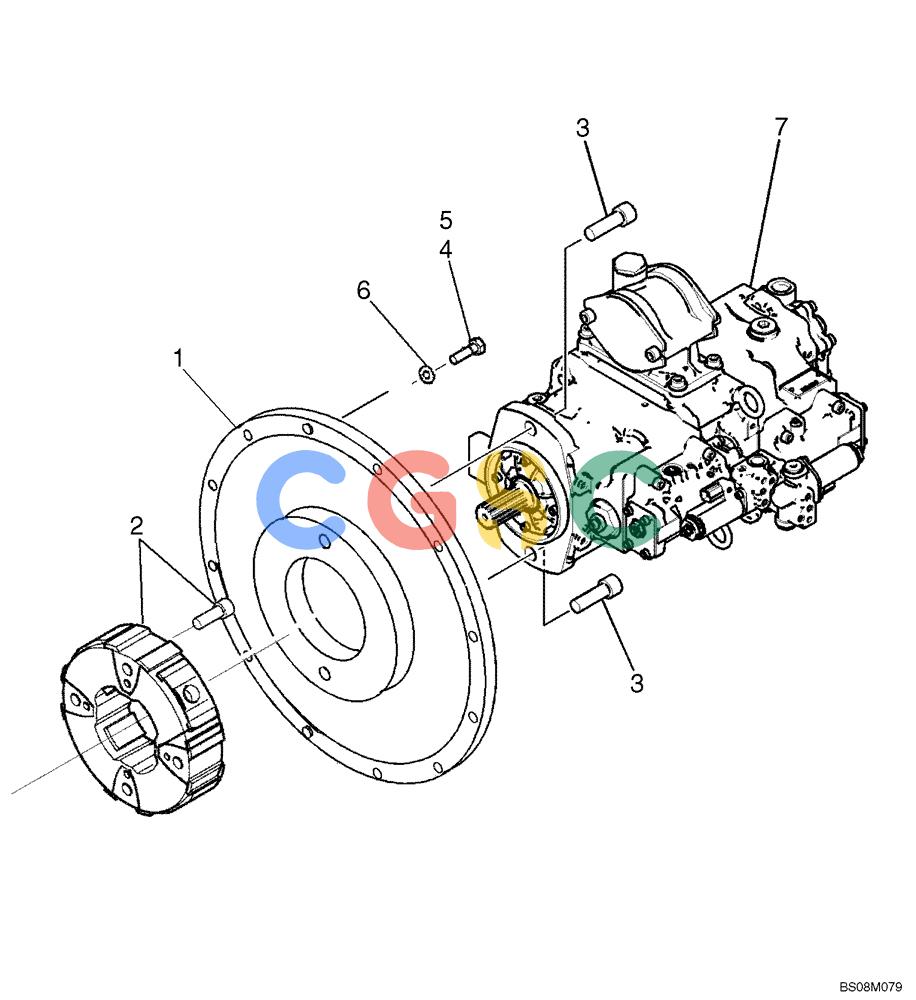

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-15[01]) - POWER TAKE OFF ASSY (YM30P00007F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
345 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM30P01009P1 | [1] | BRACKET | SM |
| 2. | YM30P01007F1 | [1] | COUPLING | KOBSee Fig. 02-15[02] |
| 3. | ZS28C16050 | [2] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm |
| 4. | ZS18C10035 | [8] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 5. | ZS18C10045 | [4] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 6. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 7. | YM10V00005F1 | [1] | HYDRAULIC PUMP | SMAssembly, See Figure 08-14, Used From Date 10/06/2006 - 01/11/2008 Superseded by part number: YM10V00005F5 |
| . . | YM10V00005F2 | [1] | HYDRAULIC PUMP | SMAssembly, See Figure 08-14, Used After Date 01/11/2008 - Up Superseded by part number: YM10V00005F5 |
