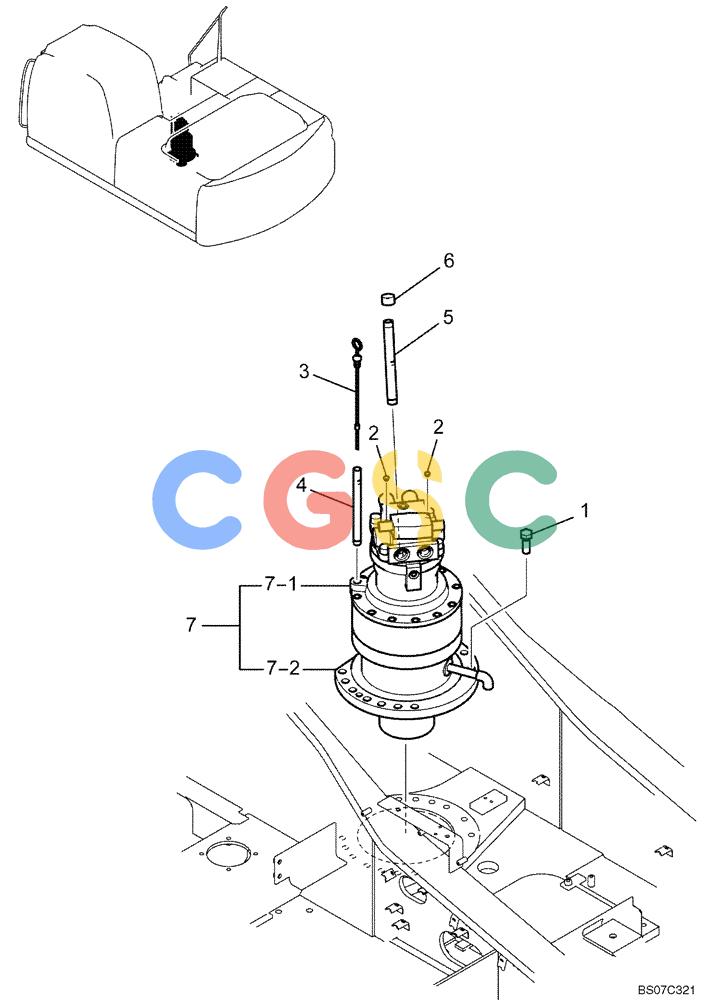

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-17[00]) - SWING MOTOR - INSTALLATION (YM32W00006F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
182 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZS13C20055 | [13] | SCREW | KOBScrew -- M20x2.50x55mm |
| 2. | PV02B01073D3 | [2] | CAP | KOB10.7mm Plastic (before date 05/21/07) Superseded by part number: YN64H01391D1 |
| 2. | YN64H01391D1 | [2] | CAP | KOB10.0mm Slotted Plastic (after date 05/21/07) |
| 3. | YN32W01101D1 | [1] | LEVEL GAUGE | SM385.5mm Long (15-11/64 in) |
| 4. | YN32W01114D1 | [1] | RIGID TUBE | SM262mm Long (10-5/16 in) |
| 5. | YN32W01075D1 | [1] | RIGID TUBE | SM250mm Long (9-27/32 in) |
| 6. | ZE91T12000 | [1] | PLUG | SMCap, 3/4" PT |
| 7. | YM15V00004F1 | [1] | HYDRAULIC MOTOR | SMAssembly, Swing (Incls. Refs. 7-1 & 7-2) (before date 7/16/07) Superseded by part number: YM15V00004F3 |
| 7. | YM15V00004F2 | [1] | HYDRAULIC MOTOR | SMAssembly, Swing (Incls. Refs. 7-1 & 7-2) (after date 7/16/07) Superseded by part number: YM15V00004F3 |
| 7-1. | YM15V00006F1 | [1] | HYDRAULIC MOTOR | KOBAssembly -- See Figure 08-10 |
| 7-2. | YM32W00004F1 | [1] | MOTOR | KOBReduction Assembly, Swing -- See Figure 08-12, (before date 7/16/07) Superseded by part number: YM32W00008F2 |
| 7-2. | YM32W00008F1 | [1] | MOTOR | KOBReduction Assembly, Swing -- See Figure 08-12, (after date 7/16/07) Superseded by part number: YM32W00008F2 |
