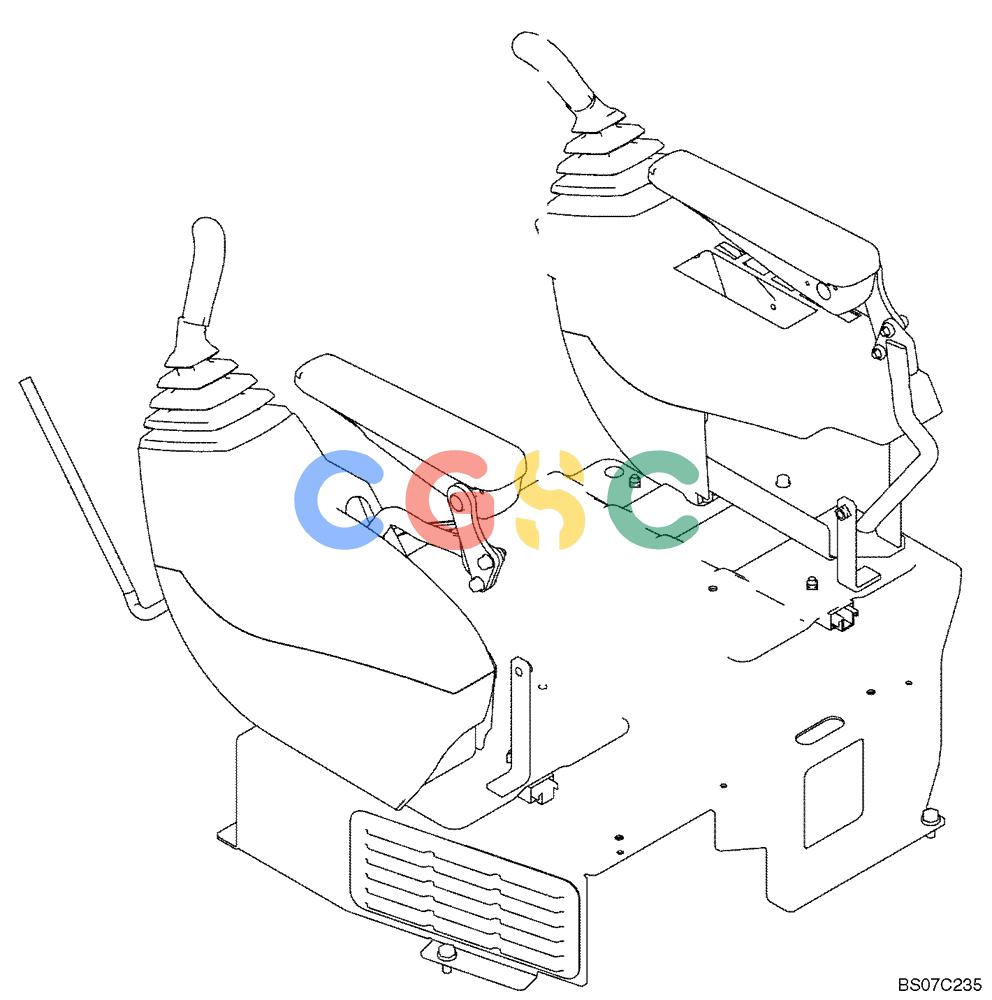

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-25[00]) - CONTROL, OPERATORS (STD) (YN03M00148F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
878 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN03M00137F1 | [1] | Operator Controls (See Figure 02-26) | |
| . . | YN03M00149F1 | [1] | Control Box Assembly (See Figure 02-27) | |
| . . | YN03M01870F1 | [1] | GRIP | KOBGrip Assembly (See Figure 02-28) |
| . . | YN03M01968F1 | [1] | GRIP | KOBGrip Assembly (See Figure 02-29) Superseded by part number: YN03M01505P1, YN03M01503P1, YN03M01328P2, YN03M01971F1, ZN18C14011 |
| . . | YN50E00018F1 | [1] | Switch installation (See Figure 02-32) | |
| . . | YN50M00015F1 | [1] | LEVER | KOBPropel Lever Assembly (See Figure 02-30) |
| . . | YN55M00003F1 | [1] | FLOOR MAT | KOB(See Figure 02-30) Superseded by part number: YN26M00064P1 |
| . . | YN55M00004F1 | [1] | PEDAL | KOBAssembly (See Figure 02-31) |
| . . | YN54E00010F1 | [1] | Radio Installation (See Figure 02-32) | |
| . . | YN12P01163F1 | [1] | CLAMP | KOBClamp Assembly(See Figure 02-33) |
| . . | YN25M01183F1 | [1] | ARMREST | KOBArm Rest (See Figure 02-34) |
