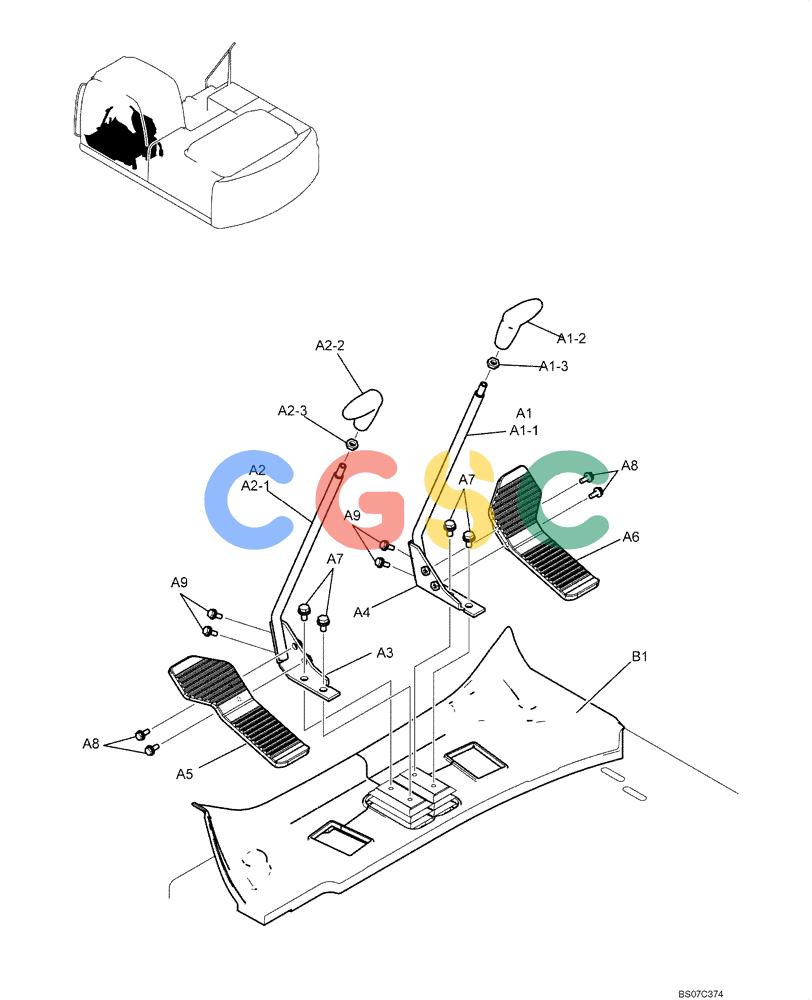

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-30[00]) - LEVER ASSY, PROPEL (YN50M00015F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
261 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YN50M01051F1 | [1] | LEVER | KOBRH |
| A1-1. | NA | [1] | NOT SERVICED | FORLever |
| A1-2. | YN03M01040P1 | [1] | GRIP | KOB |
| A1-3. | 2420Z1232 | [1] | NUT | KOBM12x1.25mm |
| A2. | YN50M01052F1 | [1] | LEVER | KOBLH |
| A2-1. | NA | [1] | NOT SERVICED | FORLever |
| A2-2. | YN03M01040P1 | [1] | GRIP | KOB |
| A2-3. | 2420Z1232 | [1] | NUT | KOBM12x1.25mm |
| A3. | YN50M01056P1 | [1] | SUPPORT | KOBRH |
| A4. | YN50M01057P1 | [1] | SUPPORT | KOBLH |
| A5. | YN55M01011P1 | [1] | PEDAL | SMLH |
| A6. | YN55M01010P1 | [1] | PEDAL | SMRH |
| A7. | ZM73C10020 | [4] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| A8. | ZM22C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| A9. | ZM73C08016 | [4] | BOLT,M8x16mm - Course Thread | KOBM08x1.25x16mm (Incls. Washer) |
| B1. | YN26M00064P1 | [1] | FOOT BOARD | SM |
