神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-31[00]) - PEDAL ASSEMBLY (YN55M00004F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
345 次

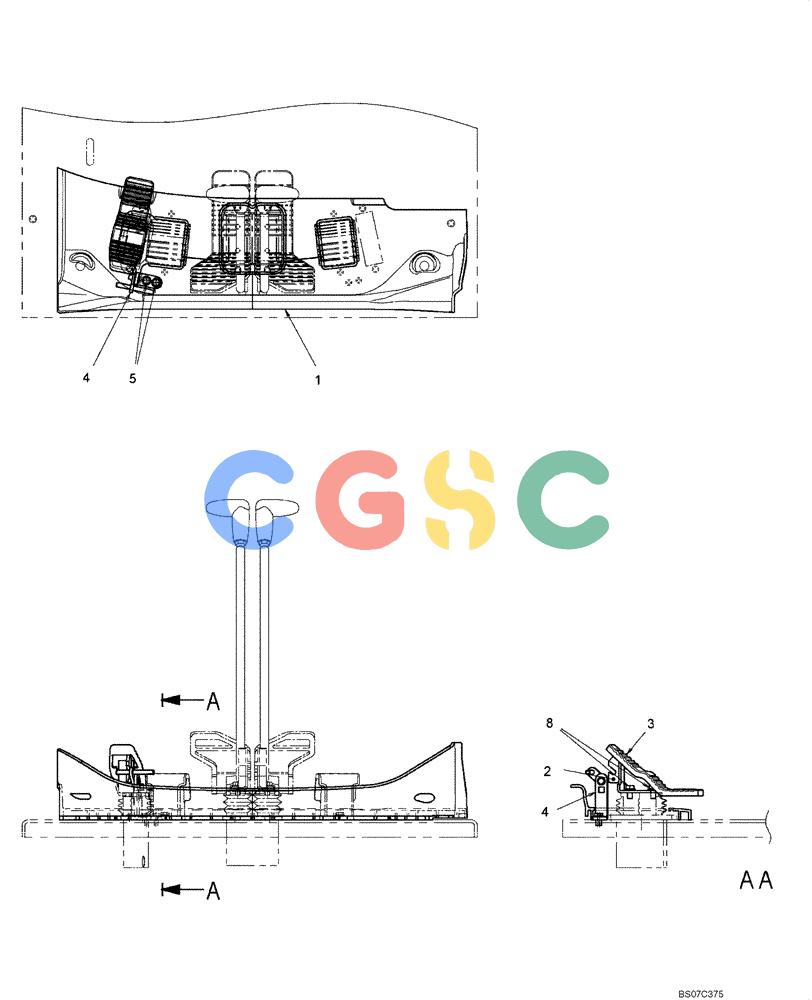

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN26M00066P1 | [1] | FOOT BOARD | SM |
| 2. | YN03M01852P1 | [1] | PEDAL | SMRH |
| 3. | YN03M01858P1 | [1] | RUBBER PEDAL PAD | SM |
| 4. | YN03M01684P1 | [1] | BRACKET | SM |
| 5. | ZM73C08020 | [2] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 6. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
