神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-32[00]) - RADIO INSTALLATION (YN54E00010F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1014 次

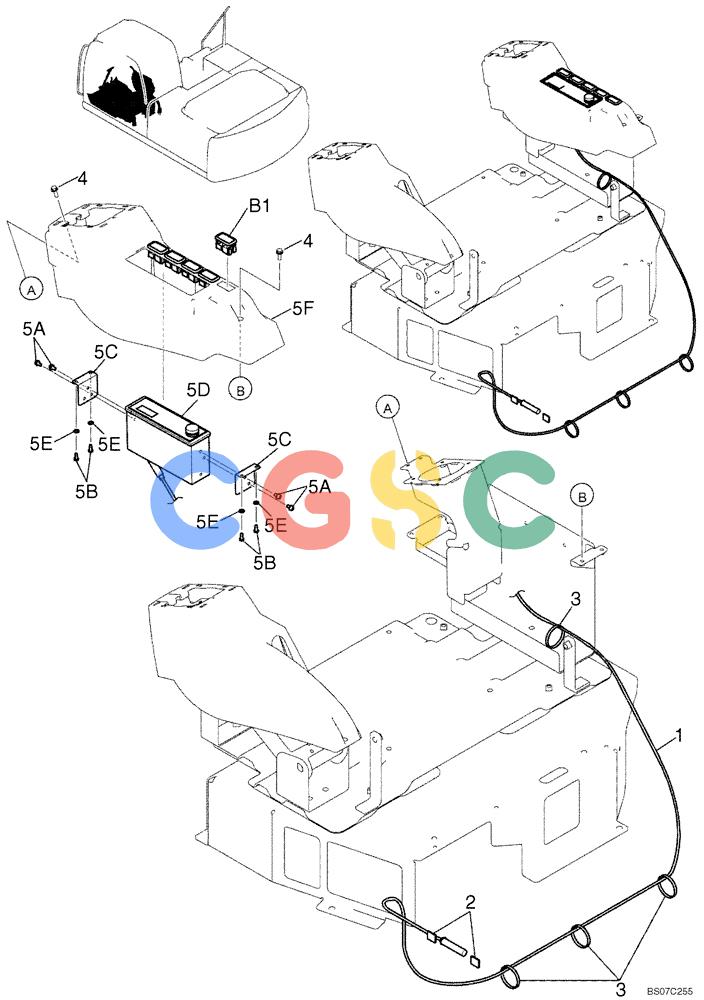

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN17M01072P1 | [1] | CABLE | KOB2000mm Long (78-3/4 in) Superseded by part number: 72203961 |
| 2. | 2432Z478D1 | [2] | CLIP | KOBClamp -- Ø5.4x17.5x20.5x9.8mm |
| 3. | PY01P01043D3 | [1] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 4. | ZM66C06016 | [3] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 5-A. | 2420R1089D1 | [4] | BOLT,M5 x 10mm | KOBM05x0.8x10mm (Incls. Washer & Lockwasher) |
| 5-B. | YN17M01262P1 | [4] | SCREW,Phillips Drive, Pan HD, M5 x 10mm | SMM05x10mm Self-Taper |
| 5-C. | YN54E01020P1 | [2] | BRACKET | KOB |
| 5-D. | YN54S00045P1 | [1] | RADIO | KOBAM/FM -- Soken Co. LTD., No Component Parts Superseded by part number: YN54S00074P1 |
| 5-E. | ZW16P05000 | [4] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 5-F. | YN03M01942F2 | [1] | COVER ASSY | KOB |
| B1. | YN17M01282P1 | [5] | CAP | KOBPlug -- 43x25x27mm Superseded by part number: YN17M01282P2 |
