卡特零件查询（735） 211-2038: MIRROR GP-REAR VIEW
广数供应链运营团队, 15 02月, 2025，浏览：
146 次

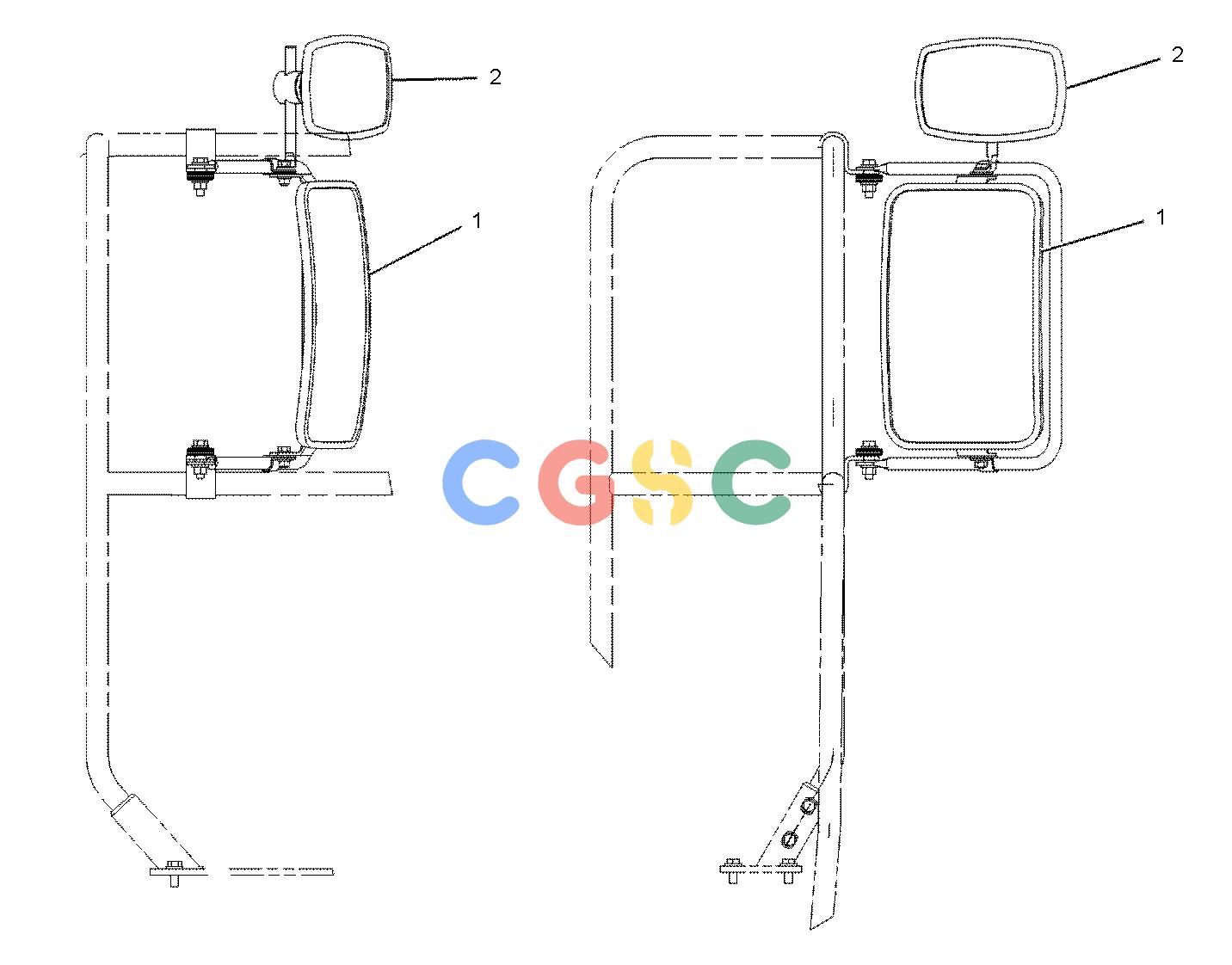

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 110-0017 | [2] | MIRROR | |
| 2. | 208-4539 | [2] | MIRROR | |
| | | | |
| | 6L-7008BF | [53] | STRAP-CABLE | |
| | 102-8802F | [3] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 4P-7581F | [5] | CLIP(LADDER) | |
| | 186-3735F | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 165-5979F | [1] | SWITCH AS-ROCKER(HEATED MIRROR) | |
| | 3E-8825 | [2] | LAMP(24-VOLT)(MINIATURE) | |
| | 3E-8857 | [1] | SWITCH AS-ROCKER(HEATED MIRROR) | |
| | 165-5980 | [1] | ACTUATOR | |
| | 211-2039F | [2] | HARNESS AS-WIRING(HEATED MIRROR) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [4] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
