卡特零件查询（735） 228-2758: CYLINDER GP-SUSPENSION
广数供应链运营团队, 15 02月, 2025，浏览：
246 次

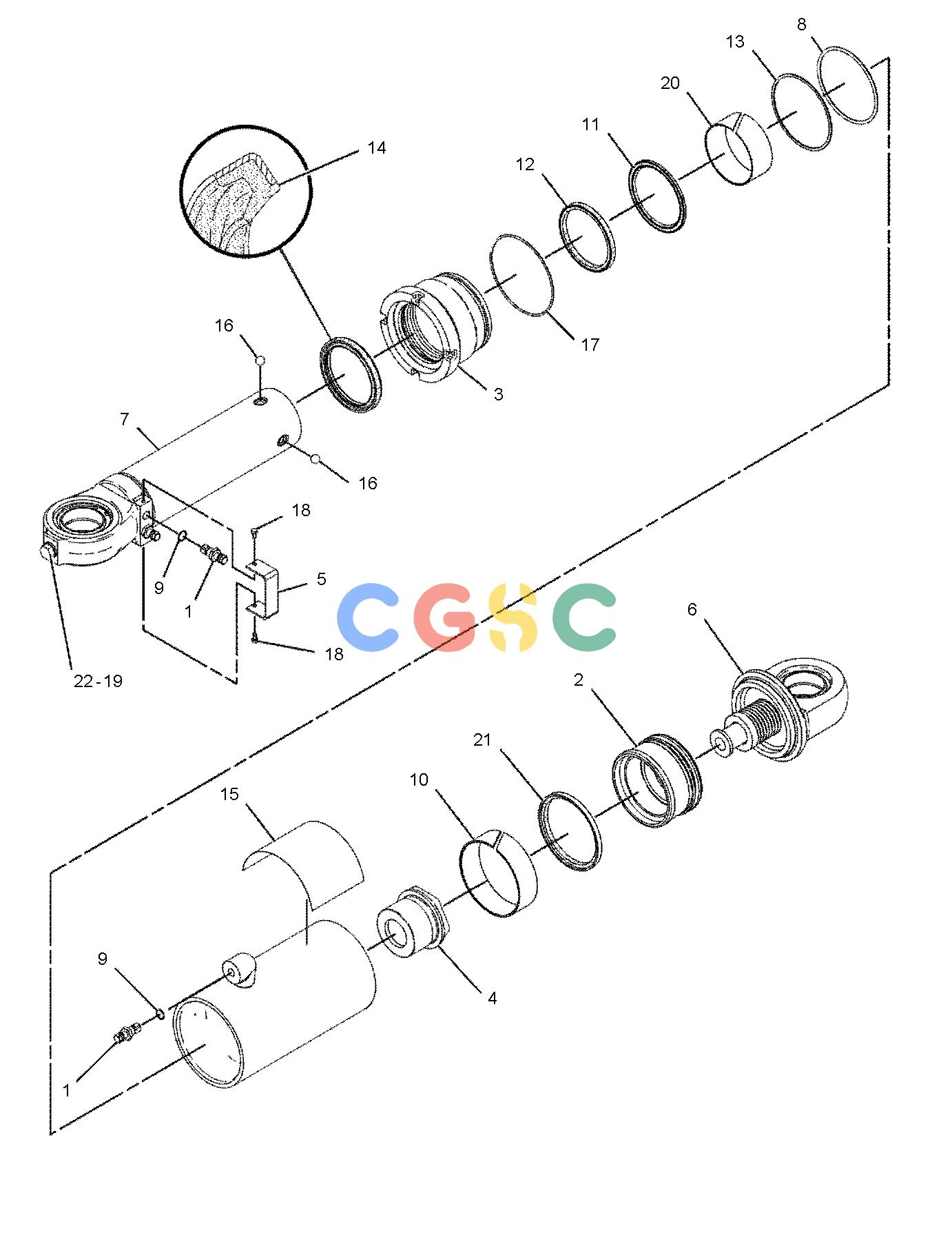

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 175-3184 | [3] | VALVE GP(HYDRAULIC CYLINDER) | |
| | | | (EACH INCLUDES) |
| | 6J-0368 | [1] | CAP | |
| | 175-3185 | [1] | CORE-VALVE | |
| 2. | 200-4290 | [1] | PISTON | |
| 3. | 200-4291 | [1] | HEAD | |
| 4. | 201-1311 | [1] | RETAINER | |
| 5. | 226-9765 | [1] | PLATE-COVER | |
| 6. | 235-3487 | [1] | CYLINDER AS | |
| | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| | 8T-1159M | [1] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| | 8T-7567 | [1] | RING-RETAINING(INTERNAL) | |
| | 164-9309 | [1] | BEARING | |
| 7. | 235-3491 | [1] | ROD AS | |
| | 8T-7567 | [1] | RING-RETAINING(INTERNAL) | |
| | 164-9309 | [1] | BEARING | |
| 8. | 095-1633J | [1] | SEAL-O-RING | |
| 9. | 114-3361 | [3] | SEAL-O-RING | |
| 10. | 116-3589J | [1] | RING | |
| 11. | 295-1317J | [1] | SEAL AS-BUFFER | |
| 12. | 295-1316J | [1] | SEAL-U-CUP | |
| 13. | 198-2643J | [1] | RING-BACKUP | |
| 14. | 295-1315J | [1] | SEAL-WIPER | |
| 15. | 231-6533 | [1] | FILM-WARNING(HIGH PRESSURE CYLINDER) | |
| 16. | 4B-9786 | [2] | BALL | |
| 17. | 8F-8733J | [1] | SEAL-O-RING | |
| 18. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 19. | 8T-4190M | [1] | BOLT(M16X2X25-MM) | |
| 20. | 9X-3579J | [1] | RING-WEAR | |
| 21. | 9X-3601J | [1] | SEAL AS | |
| 22. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 416-0092J | [1] | KIT-HYD CYLINDER SEAL | |
| | | | (INCLUDES RINGS & SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
