神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-44[00]) - CAB INSTALLATION (YN02C00151F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
171 次

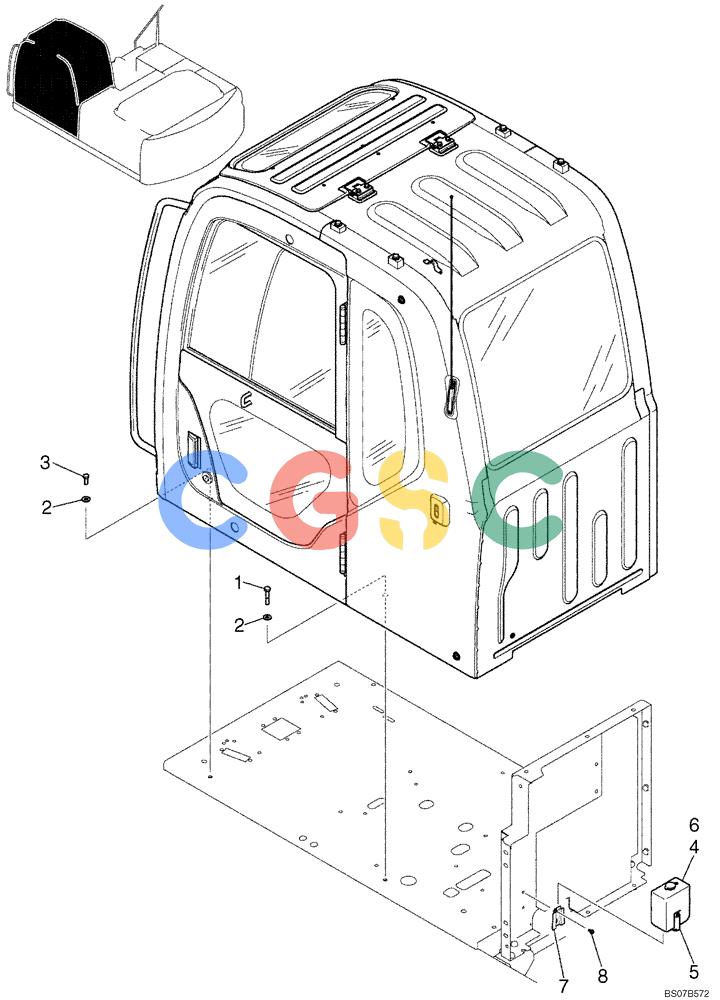

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZS18C12065 | [5] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 2. | 2418T10357 | [6] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 3. | ZS18C12030 | [1] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 4. | YT54C00003F1 | [1] | TANK | KOBIncls. Refs. 5 - 7 |
| 5. | YT54C00003S001 | [1] | ELECTRIC MOTOR | KOBAssembly only -- No service parts |
| 6. | YT54C00003S002 | [1] | TANK | KOB |
| 7. | YT54C00003S003 | [1] | BRACKET | KOB Superseded by part number: 2416P7292 |
| 8. | ZM73C06016 | [2] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm (Incls. Washer) |
