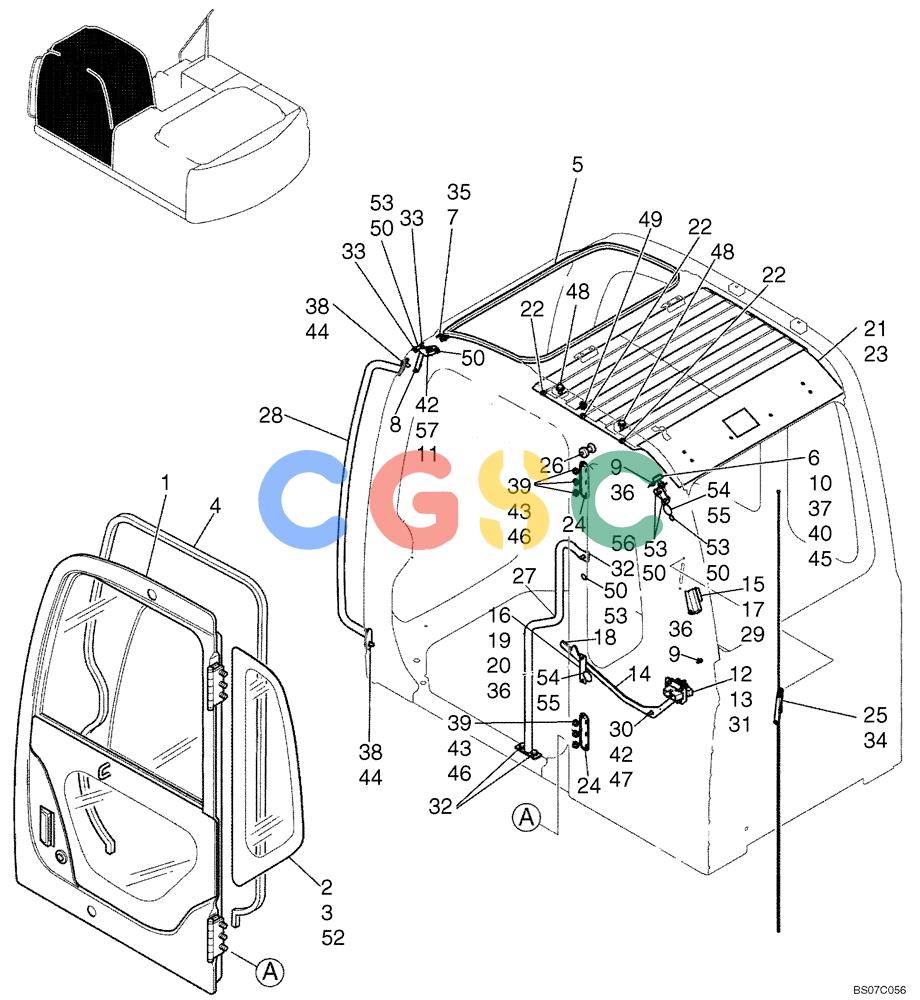

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-45[00]) - CAB ASSY (YN02C00156F1) PAGE 1 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
952 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN51C00010F2 | [1] | DOOR ASSY. | KOB |
| 2. | YN02C02136P1 | [1] | GLASS | KOB |
| 3. | YT02C01515D1 | [1] | TRIM PANEL | KOB Superseded by part number: YT02C01515D2 |
| 4. | YN02C01741P1 | [1] | SEAL | KOB Superseded by part number: YN02C01741P2 |
| 5. | YN02C03669P2 | [1] | GASKET | SM |
| 6. | YT02C01066P1 | [1] | STOP | KOB |
| 7. | YT50S00004P1 | [1] | SWITCH | KOB |
| 8. | YN02C02970F1 | [1] | CABLE | KOB |
| 9. | YT02C01161P1 | [2] | CLAMP | KOB |
| 10. | YN02C03075P1 | [1] | PLATE | KOB |
| 11. | ZM66C06025 | [2] | BOLT | KOBM06x1.0x25mm (Incls. Washer & Lockwasher) |
| 12. | YT02C01109F1 | [1] | CATCH | KOB Superseded by part number: YN02C04422F1 |
| 13. | YT02C01124P1 | [1] | COVER | KOB |
| 14. | YN02C02117P2 | [1] | LEVER | KOB |
| 15. | YN02C03048P2 | [1] | BRACKET | KOB |
| 16. | YT02C01276P1 | [1] | COVER | KOB |
| 17. | HY25X09017G1 | [1] | WASHER | KOBID 09 x OD 17 x Th 1.60mm |
| 18. | YT02C01274P1 | [1] | COVER | KOB |
| 19. | YT02C01280P1 | [1] | SPACER | KOB |
| 20. | YT02C01275P1 | [1] | LABEL | KOB |
| 21. | YN02C02941P2 | [1] | PAD | KOB Superseded by part number: YN02C02941P3 |
| 22. | YN02C01820P1 | [3] | CLIP | KOB |
| 23. | YN02C01880P1 | [6] | RIVET,8.1mm OD x 25mm L | KOB |
| 24. | YT02C01129P1 | [2] | COVER | KOB |
| 25. | YT54S00018F1 | [1] | ANTENNA | KOB |
| 26. | YT02C01134P1 | [1] | HOOK | KOB |
| 27. | YN02C03321P1 | [1] | HANDLE | KOB |
| 28. | YN02C02983P1 | [1] | HANDRAIL | KOB |
| 29. | 2420Z1227D4 | [2] | SCREW | KOBM06x1.0x20mm |
| 30. | ZS18C08030 | [1] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 31. | ZM22C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| 32. | ZM27C10025 | [3] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| 33. | YN02C01292P1 | [2] | PLUG | KOBOD 8 x 14mm Long (Nylon) |
| 34. | ZS31C05010 | [2] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 35. | ZS32T40012 | [2] | SCREW | KOBM04x12mm Self-Taper |
| 36. | ZM66C06016 | [4] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 37. | ZM27C08025 | [2] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| 38. | YR02C01571D2 | [2] | SCREW | KOBM10x1.50x25mm |
| 39. | ZN13C10008 | [6] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 40. | ZN18F10008 | [1] | NUT | KOBM10x1.25mm |
| 41. | 2418T12753 | [1] | WASHER | KOBID 09 x OD 30 x Th 3.2mm |
| 42. | 2420T4505 | [2] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOBID 07 x OD 16 x Th 1.0mm |
| 43. | ZW11X10000 | [6] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 44. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 45. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 46. | ZW22X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 47. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 48. | ZM73C12020 | [2] | BOLT,M12x20mm - Course Thread | KOBM12x1.75x20mm (Incls. Washer) |
| 49. | 2420R372D14 | [1] | GROMMET | KOB |
| 50. | YT02C01261D1 | [6] | PLATE | KOB(NEUTRAL GRAY 971) |
| 51. | YT02C01235P1 | [1] | GROMMET | KOB |
| 52. | YT02C01514D2 | [1] | SEAL | KOB Superseded by part number: YR02C01511D2 |
| 53. | YT02C01567D1 | [4] | PLATE | KOBPLATE, (GRAYISH BLACK) |
| 54. | YT02C01567D3 | [3] | PLATE | KOB(GRAYISH BLACK) |
| 55. | YT02C01261D3 | [3] | PLATE | KOB(NEUTRAL GRAY 971) |
| 56. | YT02C01233P1 | [1] | CAP | KOB |
| 57. | YN02C03095P2 | [1] | STOP | KOB |
