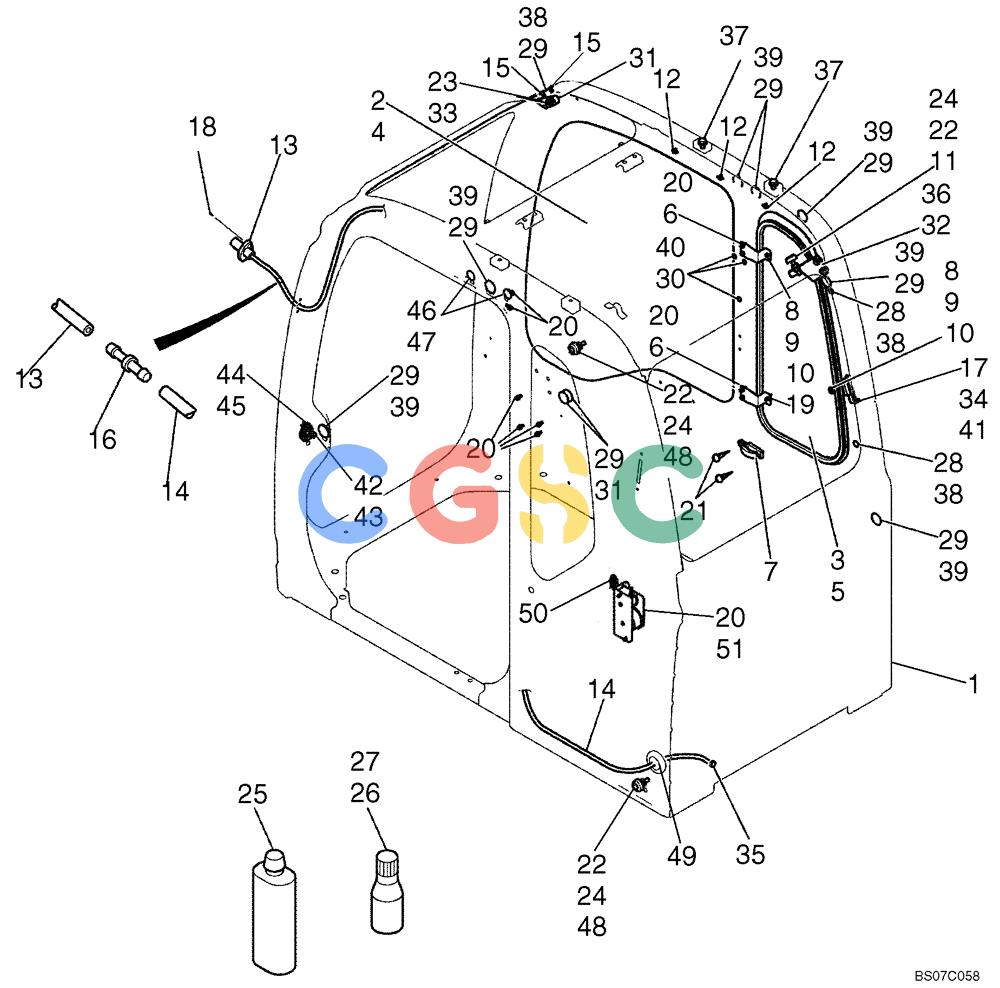

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-45[02]) - CAB ASSY (YN02C00156F1) PAGE 3 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
813 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN02C00150P1 | [1] | CAB | KOBCab |
| 2. | YN02C01794P1 | [1] | GLASS | KOB |
| 3. | YN02C01567P1 | [1] | GLASS | KOB |
| 4. | YN02C01821P1 | [1] | RUBBER | KOB |
| 5. | YN02C01825P1 | [1] | SEAL,2050mm L | KOB |
| 6. | YN02C01811P1 | [2] | PLATE | KOB |
| 7. | YN02C01656P1 | [1] | LOCK ASSY | KOB |
| 8. | YN02C01812P1 | [3] | SPACER,10mm ID x 20mm OD x 4mm L | KOB |
| 9. | YN02C01668P1 | [3] | RETAINER | KOB |
| 10. | YN02C01669P1 | [3] | PACKING | KOB |
| 11. | YT02C01066P1 | [1] | STOP | KOB |
| 12. | YN02C01820P1 | [3] | CLIP | KOB |
| 13. | YT54C00001P1 | [1] | WINDSHIELD WASHER | KOBWINDSHIELD WASHER |
| 14. | YT02C01126D1 | [1] | TUBE | KOB3500mm Long (137-51/64 in) |
| 15. | YN02C01292P1 | [2] | PLUG | KOBOD 8 x 14mm Long (Nylon) |
| 16. | PY21V01001P1 | [1] | CHECK VALVE | KOB |
| 17. | 2420Z1227D4 | [1] | SCREW | KOBM06x1.0x20mm |
| 18. | ZS32T40012 | [2] | SCREW | KOBM04x12mm Self-Taper |
| 19. | ZM66C05012 | [2] | BOLT | KOBM05x0.8x12mm (Incls. Washer & Lockwasher) |
| 20. | ZM66C06016 | [12] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 21. | YN17M01033D3 | [3] | SCREW | KOBM05x10mm |
| 22. | ZN18F10008 | [3] | NUT | KOBM10x1.25mm |
| 23. | 2420T4505 | [2] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOBID 07 x OD 16 x Th 1.0mm |
| 24. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 25. | YR01T01005P1 | [1] | ADHESIVE | KOB Superseded by part number: YN01T01067P1 |
| 26. | YR09T00002P1 | [1] | PAINT | KOB(25g) Superseded by part number: YN09T00009P1 |
| 27. | YR09T00003P1 | [1] | PAINT | KOB(25g) |
| 28. | YT02C01567D1 | [6] | PLATE | KOB(GRAYISH BLACK) |
| 29. | YT02C01567D3 | [10] | PLATE | KOB(GRAYISH BLACK) |
| 30. | YT02C01567D4 | [3] | PLATE | KOB(GRAYISH BLACK) |
| 31. | YN02C03094P2 | [1] | STOP | KOB |
| 32. | YN02C03077P1 | [1] | PLATE | KOB |
| 33. | ZM66C06025 | [2] | BOLT | KOBM06x1.0x25mm (Incls. Washer & Lockwasher) |
| 34. | YN02C03047P2 | [1] | BRACKET | KOB |
| 35. | YN02C03147P1 | [1] | RUBBER BAND | KOB |
| 36. | ZM27C08025 | [2] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| 37. | ZM73C12020 | [2] | BOLT,M12x20mm - Course Thread | KOBM12x1.75x20mm (Incls. Washer) |
| 38. | YT02C01261D1 | [4] | PLATE | KOB(NEUTRAL GRAY 971) |
| 39. | YT02C01261D3 | [10] | PLATE | KOB(NEUTRAL GRAY 971) |
| 40. | YT02C01261D4 | [3] | PLATE | KOB(NEUTRAL GRAY 971) |
| 41. | HY25X09017G1 | [1] | WASHER | KOBID 09 x OD 17 x Th 1.60mm |
| 42. | YT51C01021P1 | [1] | HOOK | KOB |
| 43. | YT51C01077D1 | [1] | SPACER | KOB |
| 44. | ZS68C08025 | [2] | SCREW,Pan, M4 x 12mm | KOBScrew -- M08x1.25x25mm |
| 45. | YT02C01229P1 | [2] | WASHER | KOBStar Lock -- ID 08.40 ± 0.30 x OD 16 x Th 0.6mm |
| 46. | YT02C01567D2 | [3] | PLATE | KOB(GRAYISH BLACK) |
| 47. | YT02C01261D2 | [6] | PLATE | KOB(NEUTRAL GRAY 971) |
| 48. | YN02C01823P1 | [2] | STOP | KOB |
| 49. | 2420R372D8 | [1] | GROMMET | KOB |
| 50. | YT02C01207P1 | [1] | SPRING | KOB |
| 51. | YN02C02970F1 | [1] | CABLE | KOB |
