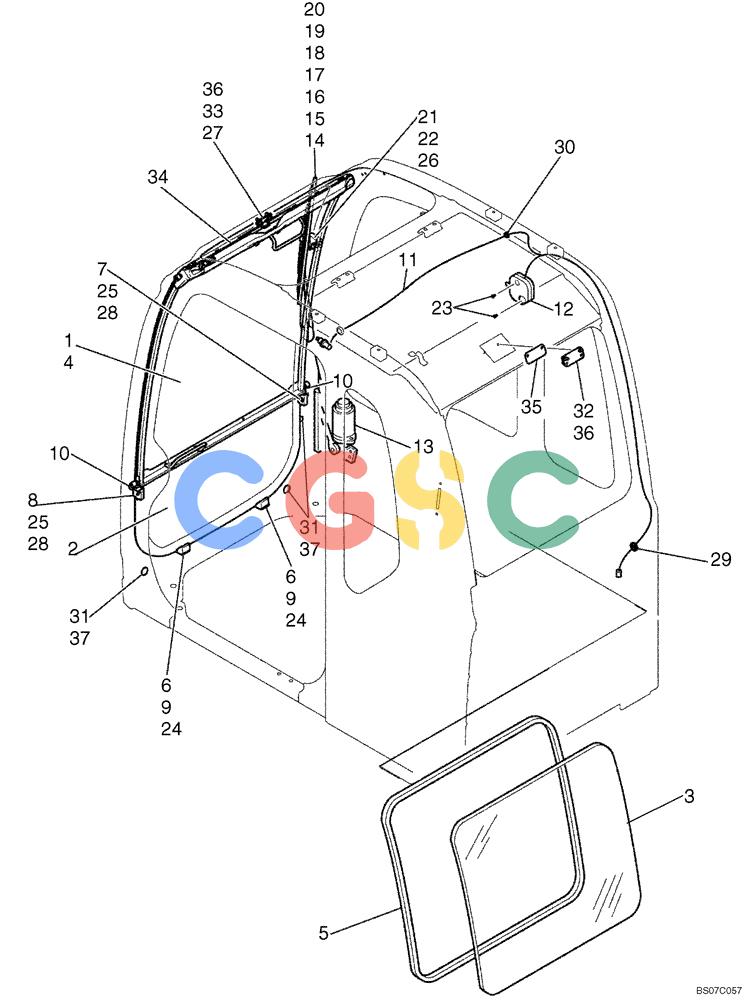

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-45[01]) - CAB ASSY (YN02C00156F1) PAGE 2 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
641 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN50C00005F1 | [1] | WINDOW | KOBFront Assembly |
| 2. | YN02C03160P1 | [1] | GLASS | KOBLower Front |
| 3. | YN02C01787P1 | [1] | GLASS | KOB |
| 4. | YN02C03006P1 | [1] | RUBBER BAND | KOB Superseded by part number: YN02C03006P2 |
| 5. | YT02C01115D3 | [1] | RUBBER SLEEVE | KOB |
| 6. | YN02C03004P2 | [2] | STOP | KOB Superseded by part number: YN02C03887P1 |
| 7. | YN02C02747P1 | [1] | GUIDE | KOB |
| 8. | YN02C02746P1 | [1] | GUIDE | KOB |
| 9. | YN02C03005P1 | [4] | SPACER | KOB |
| 10. | YT02C01136P1 | [2] | STOP | KOB |
| 11. | YN02C03098P1 | [1] | HARNESS | KOB |
| 12. | YT80S00001P1 | [1] | LIGHT | KOB Superseded by part number: 2456Z322F1 |
| 13. | YN53C00012F2 | [1] | WIPER MOTOR | KOBWiper Motor Assembly only -- No service parts |
| 14. | YN53C01003F1 | [1] | WIPER ARM | KOB-- is a complete arm & wiper assembly -- Incls. Refs. 15 & 20 |
| 15. | YN53C01003S001 | [1] | WIPER ARM | KOB-- is just the wiper arm, 505.6mm Long (19-29/32 in) |
| 16. | YN53C01003S002 | [1] | WIPER BLADE | KOB-- is just the wiper blade, 600mm Long (23-5/8 in) Superseded by part number: 47669054 |
| 17. | YN53C01003S003 | [2] | SCREW | KOB |
| 18. | YN53C01003S004 | [1] | COVER | KOB |
| 19. | YN53C01003S005 | [1] | STOP | KOB Superseded by part number: YN53C00002S003 |
| 20. | YN53C01003S006 | [2] | BRACKET | KOB |
| 21. | YN02C01294P1 | [1] | STOP | KOB |
| 22. | 2420Z1227D4 | [1] | SCREW | KOBM06x1.0x20mm |
| 23. | ZS31C05010 | [2] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOB |
| 24. | ZM46C06020 | [2] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| 25. | ZM66C06016 | [2] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 26. | 2418Z725D3 | [1] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 27. | YN02C03039P1 | [1] | SPACER | KOB |
| 28. | 2420T4505 | [2] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOB |
| 29. | 2420R372D14 | [1] | GROMMET | KOB |
| 30. | 2420R372D8 | [2] | GROMMET | KOB |
| 31. | YT02C01567D2 | [3] | PLATE | KOB(GRAYISH BLACK) |
| 32. | YN02C03056P1 | [1] | STRIKER PLATE | KOBStriker, Years: -12-MAR-14 |
| 32. | YN02C04757P1 | [1] | STRIKER | KOBIncl 32-1 - 32-2, Start Year: 12-MAR-14 |
| 32-1. | YN02C04758P1 | [1] | STRIKER PLATE | KOB, Start Year: 12-MAR-14 |
| 32-2. | YN02C04759P1 | [1] | BAR | KOB, Start Year: 12-MAR-14 |
| 33. | YN02C03055P1 | [1] | STRIKER | KOBStriker, Years: -12-MAR-14 |
| 33. | YN02C04754P1 | [1] | STRIKER | KOBIncl 33-1 - 33-2, Start Year: 12-MAR-14 |
| 33-1. | YN02C04755P1 | [1] | STRIKER PLATE | KOB, Start Year: 12-MAR-14 |
| 33-2. | YN02C04756P1 | [1] | BAR | KOB, Start Year: 12-MAR-14 |
| 34. | 2420R372D7 | [1] | GROMMET | KOB |
| 35. | YN02C03040P1 | [1] | SPACER | KOB |
| 36. | ZM27C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| 37. | YT02C01261D2 | [3] | PLATE | KOB(NEUTRAL GRAY 971) |
