神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-47[00]) - WINDOW ASSY, FRONT (YN50C00005F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
231 次

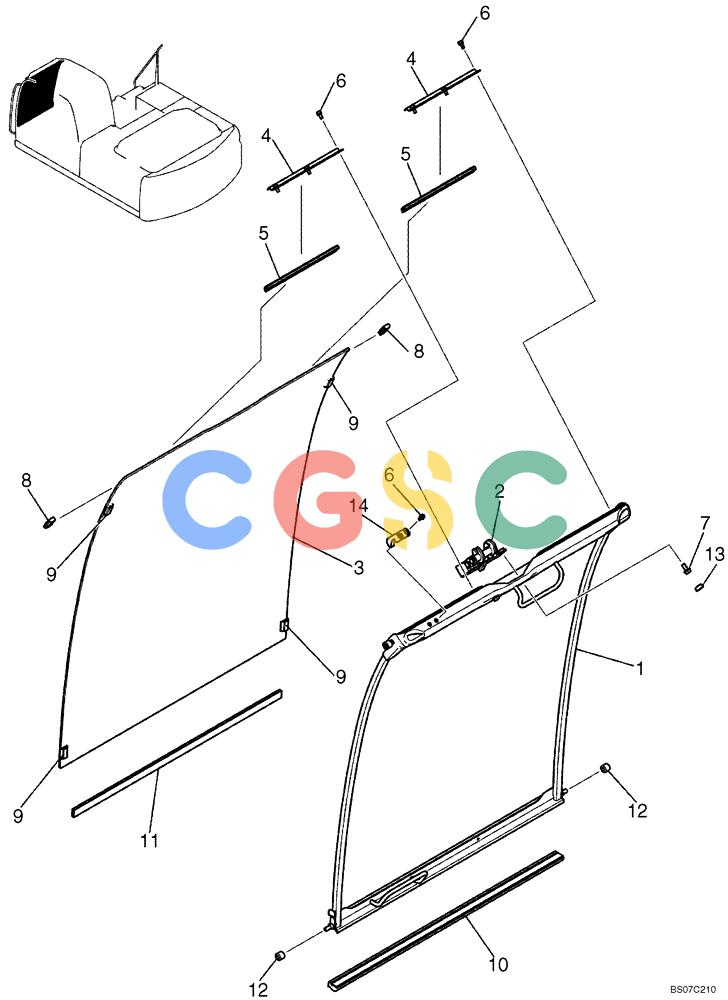

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN50C00005F1 | [1] | WINDOW | KOBFront Assembly; Includes 1 - 14 |
| 1. | YN50C01209P1 | [1] | FRAME | KOBAssembly Superseded by part number: YN50C01237P1, YN50C01246P1 |
| 2. | YN50C01189P1 | [1] | LOCK | KOBAssembly |
| 3. | YN50C01173P1 | [1] | GLASS | KOB |
| 4. | YN50C01170P1 | [2] | PLATE | KOB |
| 5. | YN50C01171P1 | [2] | RUBBER BAND | KOB |
| 6. | ZM66C06016 | [8] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 7. | ZM73C08020 | [2] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 8. | YN50C01172P1 | [2] | RUBBER BAND | KOB |
| 9. | YT50C01023P1 | [4] | RUBBER | KOB Superseded by part number: YN02C01176D3 |
| 10. | YN50C01194P1 | [1] | SEAL,834.4mm L | KOB834.4mm Long (32-55/64 in) |
| 11. | YN50C01024P1 | [1] | SEAL | KOB834.4mm Long (32-55/64 in) Superseded by part number: YN50C01246P1 |
| 12. | YT50C01012P1 | [4] | ROLLER,27mm ID x 57mm OD x 51mm L | KOB |
| 13. | 2414Z306D2 | [2] | CAP | KOB(PVC) ID13xOD20x11mm Long |
| 14. | YN50C01207P1 | [1] | PLATE | KOB |
