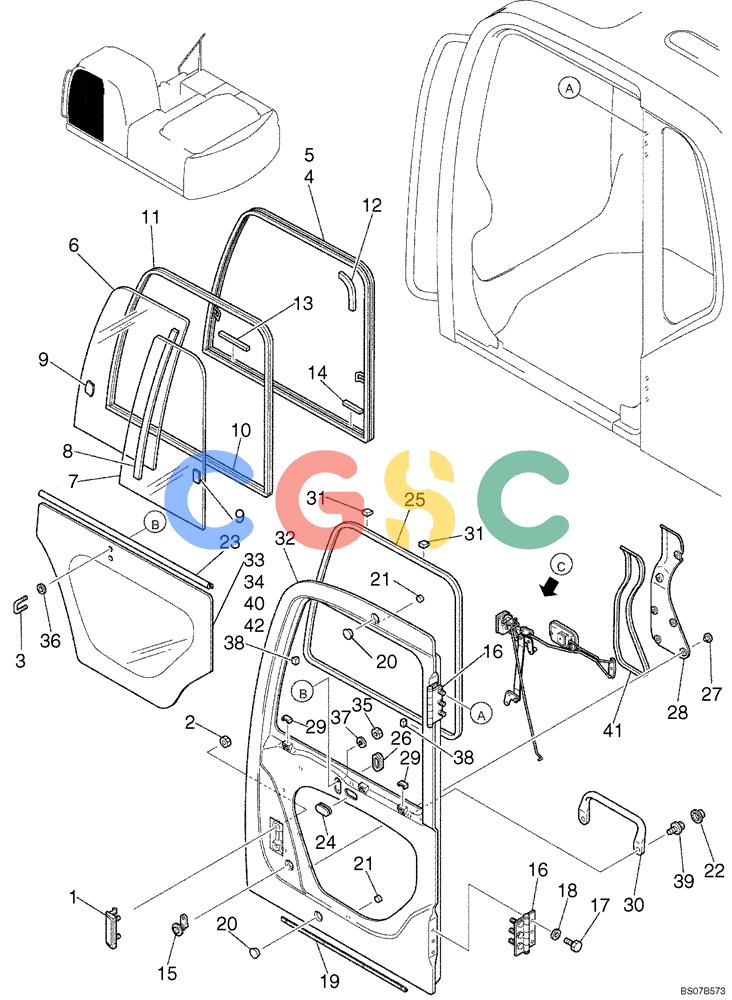

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-48[00]) - CAB DOOR (YN51C00010F2), PAGE 1 OF 2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
153 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN51C00010F2 | [1] | DOOR ASSY. | KOBCab, Page 1 of 2 |
| 1. | YN51C01045P1 | [1] | HANDLE | KOB |
| 2. | HN16C06000G1 | [2] | NUT | KOBM06x1.0mm |
| 3. | YN51C01043P1 | [1] | HOOK | KOB |
| 4. | YN02C02034F1 | [1] | CAB GLASS | KOBIncls. Refs. 5 - 14 |
| 5. | YN02C02034S001 | [1] | FRAME ASSY | KOB |
| 6. | YN02C02035P1 | [1] | GLASS | KOB |
| 7. | YN02C02036P1 | [1] | GLASS | KOB |
| 8. | YN02C02034S004 | [1] | SEAL | KOB |
| 9. | YN02C02034S005 | [2] | LOCK | KOB |
| 10. | YN02C02034S006 | [1] | SEAL | KOB |
| 11. | YN02C02034S007 | [1] | SEAL | KOB |
| 12. | YN02C02034S008 | [1] | STOP | KOB |
| 13. | YN02C02034S009 | [1] | STOP | KOB |
| 14. | YN02C02034S010 | [1] | STOP | KOB |
| 15. | YN51C01099P2 | [1] | LOCK | SM |
| 16. | YN02C01635P1 | [2] | HINGE | KOB |
| 17. | ZS13C10025 | [6] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 18. | ZW11X10000 | [6] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 19. | YN51C01023P1 | [1] | SEAL | KOB630mm Long (24-51/64 in) Superseded by part number: YN51C01180P1 |
| 20. | YT51C01065D1 | [2] | PLATE | KOB |
| 21. | YT02C01261D4 | [2] | PLATE | KOB(NEUTRAL GRAY 971) |
| 22. | YT02C01233P1 | [2] | CAP | KOB |
| 23. | YN51C01055P1 | [1] | TRIM PANEL | KOB |
| 24. | YT02C01246P1 | [1] | PLATE | KOB |
| 25. | YN51C01051P2 | [1] | RUBBER BAND | KOB |
| 26. | YT51C01039P1 | [1] | GROMMET | KOB |
| 27. | YT02C01296P1 | [6] | RIVET | KOB |
| 28. | YN51C01042P1 | [1] | COVER | KOB |
| 29. | YN51C01030P1 | [2] | RUBBER | KOB Superseded by part number: 2418R604 |
| 30. | YN51C01046P1 | [1] | HANDLE | KOB |
| 31. | YN51C01053P1 | [2] | RUBBER | KOB |
| 32. | YN51C01097P1 | [1] | PANEL ASSY. | KOB |
| 33. | YN51C01096P1 | [1] | GLASS | KOB |
| 34. | YT02C01514D4 | [1] | SEAL | KOBNot Shown -, Serial Range: glue-glass, Superseded by part number: YR02C01511D2 |
| 35. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 36. | YT51C01068P1 | [2] | WASHER | KOBID 08.1 x OD 15.5 x Th 2.5mm |
| 37. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 38. | YN51C01031P1 | [2] | RUBBER SLEEVE | KOB |
| 39. | ZM27C10025 | [2] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| 40. | YR01T01005P1 | [1] | ADHESIVE | KOB Superseded by part number: YN01T01067P1 |
| 41. | YT02C01295D2 | [1] | RUBBER | KOB |
| 42. | YT02C01515D3 | [1] | TRIM PANEL | KOBNot Shown Superseded by part number: YT02C01515D2 |
