神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-55-01[00]) - GUARD INSTALLATION, (PARTITION) (YM21C00014F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
705 次

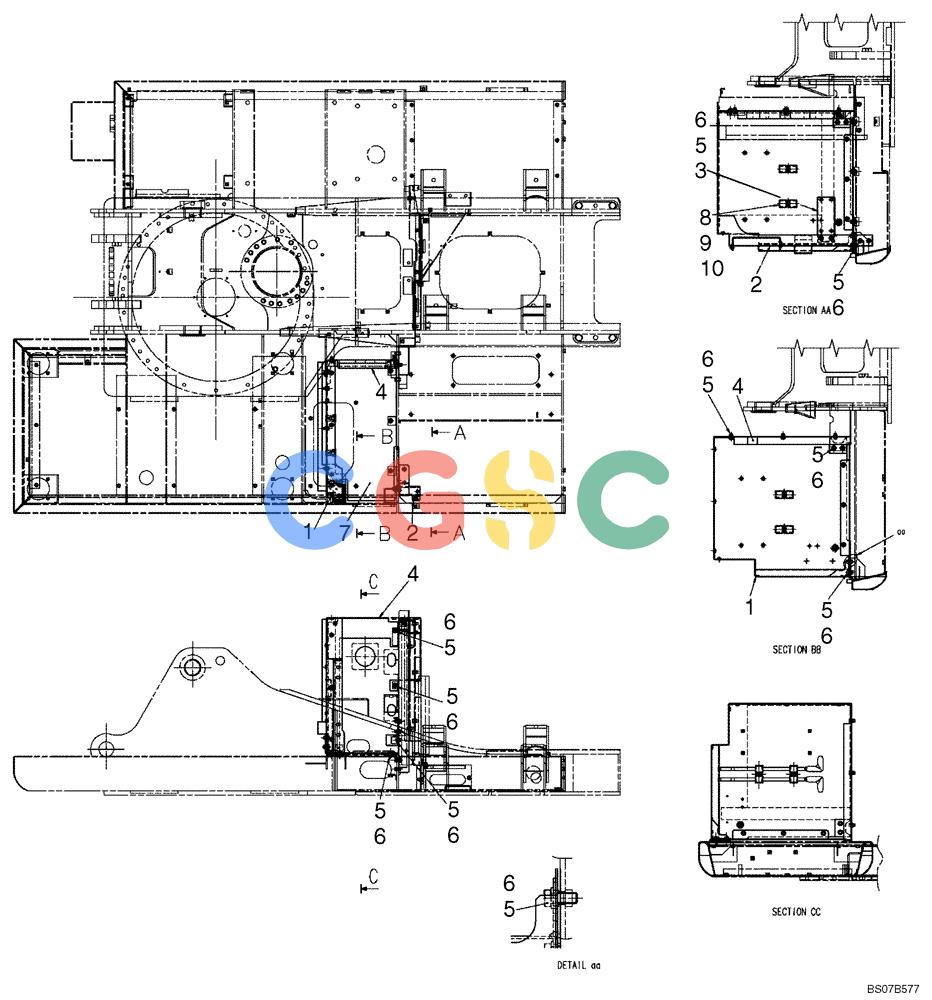

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM21C01280F1 | [1] | GUARD | KOBGuard Assembly, Incls. Refs. 1A - 1D Superseded by part number: YN21C03244P2, YM21C01281P1, YN21C03767P1, LC21C01986P2 |
| 1A. | NA | [1] | NOT SERVICED | FORGuard, Not Shown |
| 1B. | YN21C03244P2 | [1] | FOAM INSULATION | KOB590x590mm, Not Shown |
| 1C. | LC21C01986P2 | [1] | FOAM INSULATION | KOB740mm Long (29-1/8 in), Not Shown |
| 1D. | YN21C03767P1 | [1] | RUBBER BUSHING | KOBNot Shown |
| 2. | YM21C01283P1 | [1] | PILLAR | KOBPillar |
| 3. | YB21C01267P1 | [1] | BRACKET | KOB |
| 4. | YM21C01255F1 | [1] | Guard Assembly, Incls. Refs. 4A - AC | |
| 4A. | YM21C01258P1 | [1] | COVER | KOBNot Shown |
| 4B. | YM21C01257P1 | [1] | FOAM INSULATION | KOBNot Shown |
| 4C. | YM21C01286P1 | [1] | FOAM INSULATION | KOBNot Shown |
| 5. | ZS18C12025 | [21] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 6. | ZW16H12000 | [21] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 7. | YM21C01254P1 | [1] | COVER | KOB |
| 8. | YN21C03423P1 | [2] | CLAMP | KOBDouble -- Black Vinyl Covered |
| 9. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 10. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
