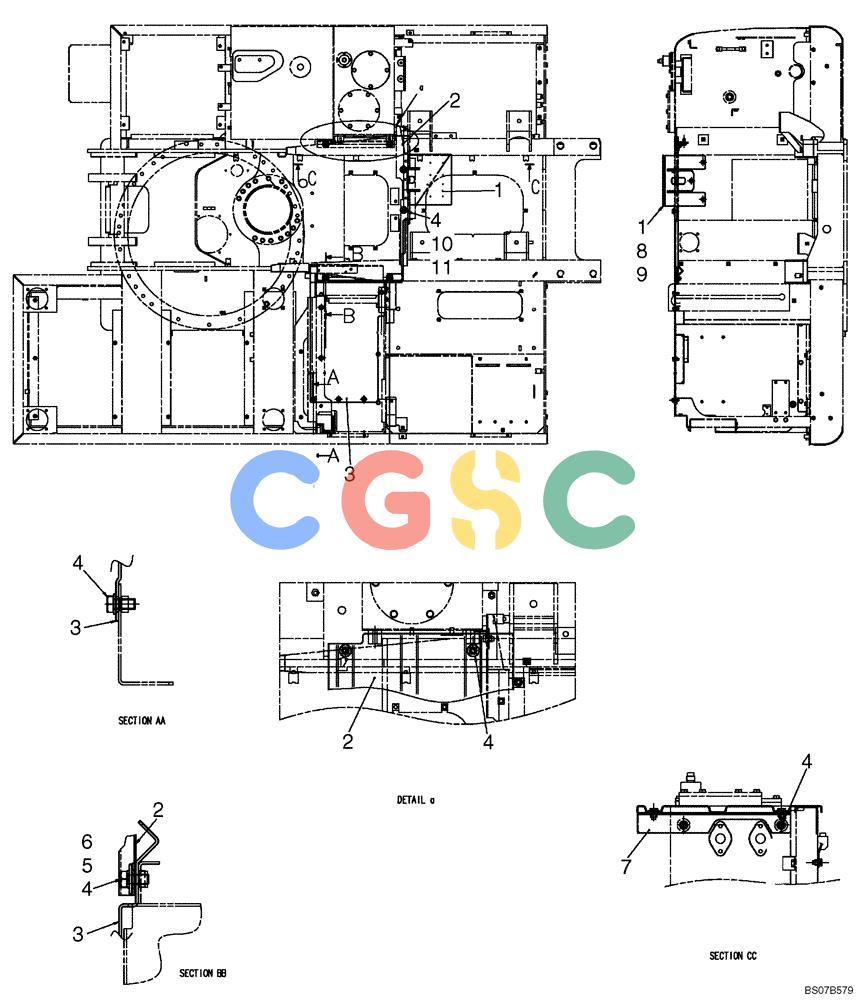

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-57-01[00]) - GUARD INSTALLATION, (COVERS) (YM21C00009F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
545 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB21C01446P1 | [1] | PLATE | KOB |
| 2. | YB21C01433P1 | [1] | GUARD | KOB |
| 3. | YM21C01260F1 | [1] | Cover Assembly, Incls. Refs. 3-1 & 3-2 | |
| 3-1. | YM21C01261P1 | [1] | COVER | KOB(Part of YM21C01260F1), Not Shown |
| 3-2. | YB21C01375P1 | [1] | FOAM INSULATION | KOB(Part of YM21C01260F1), Not Shown |
| 4. | ZM32C12025 | [14] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| 5. | YN21C01395P1 | [2] | WASHER | KOBID 23 x OD 38 x Th 2.0mm |
| 6. | YN21C01396P1 | [2] | WASHER | KOBID 13 x OD 22 x Th 4.5mm |
| 7. | YB21C01434P1 | [1] | BRACKET | KOB |
| 8. | ZS18C10020 | [3] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 9. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 10. | YN21C02138P1 | [2] | WASHER | KOBID 12.40 x OD 38 x Th 6.0mm |
| 11. | YN21C02147P1 | [2] | WASHER | KOBID 17.60 x OD 32.50 x Th 1.5mm |
