神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-56-01[00]) - GUARD INSTALLATION, (INSIDE) (YB21C00020F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
280 次

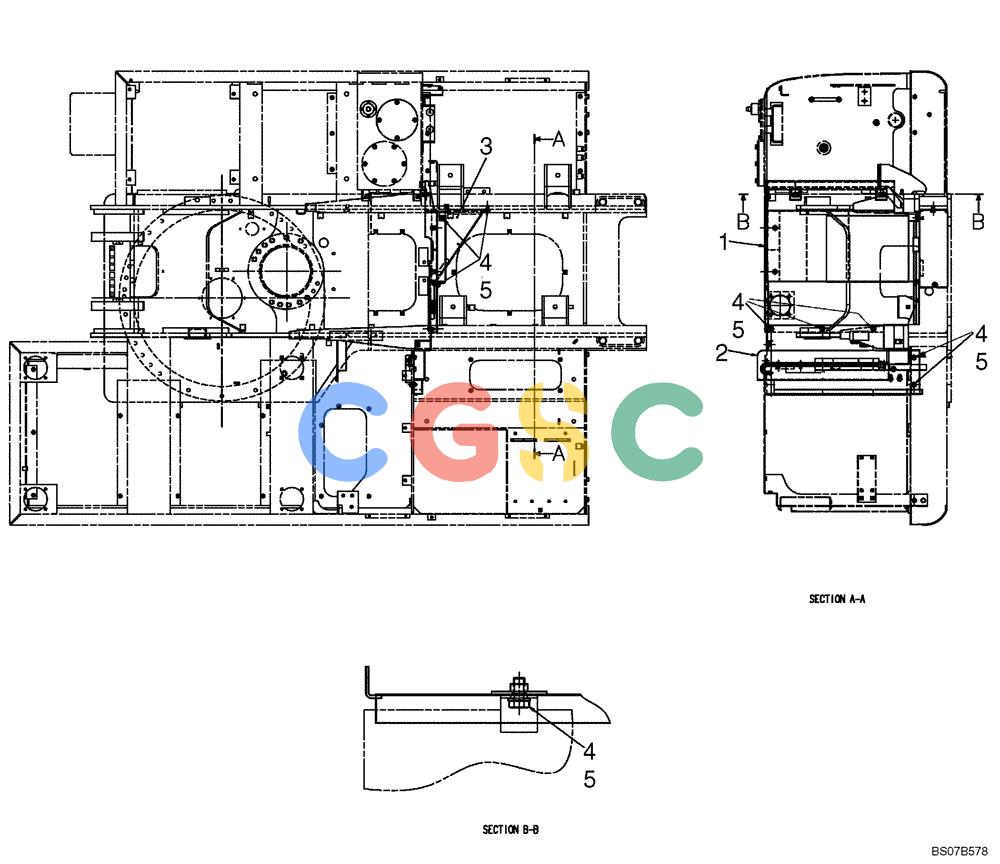

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB21C01249F1 | [1] | GUARD | KOBGuard Assembly, Incls. Refs. 1A - 1F |
| 1A. | YB21C01250P1 | [1] | GUARD ASSY. | KOB(Part of YB21C01249F1), Not Shown |
| 1B. | YB21C01256P1 | [1] | SOFT TRIM | KOB(Part of YB21C01249F1), Not Shown |
| 1C. | PM02C01035D2 | [1] | WEATHERSTRIP | KOB(Part of YB21C01249F1), Not Shown |
| 1D. | YB21C01258P1 | [1] | SOFT TRIM | KOB(Part of YB21C01249F1), Not Shown |
| 1E. | YB21C01259P1 | [1] | FOAM INSULATION | KOB(Part of YB21C01249F1), Not Shown |
| 1F. | YB21C01260P1 | [1] | FOAM INSULATION | KOB(Part of YB21C01249F1), Not Shown |
| 2. | YB21C01232F1 | [1] | GUARD | KOBGuard Assembly, Incls. Refs. 2A - 2C, Serial Range: -21YB21C01232F1 |
| 2A. | YB21C01233P1 | [1] | GUARD ASSY. | KOB(Part of YB21C01232F1), Not Shown |
| 2B. | YB21C01239P1 | [1] | INSULATION | KOBInsulation (Part of YB21C01232F1), Not Shown |
| 2C. | YB21C01240P1 | [1] | INSULATION | KOBInsulation (Part of YB21C01232F1), Not Shown |
| 3. | YB21C01216P1 | [1] | PLATE | KOBPlate Assembly |
| 4. | ZS18C12025 | [10] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 5. | ZW16H12000 | [10] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
