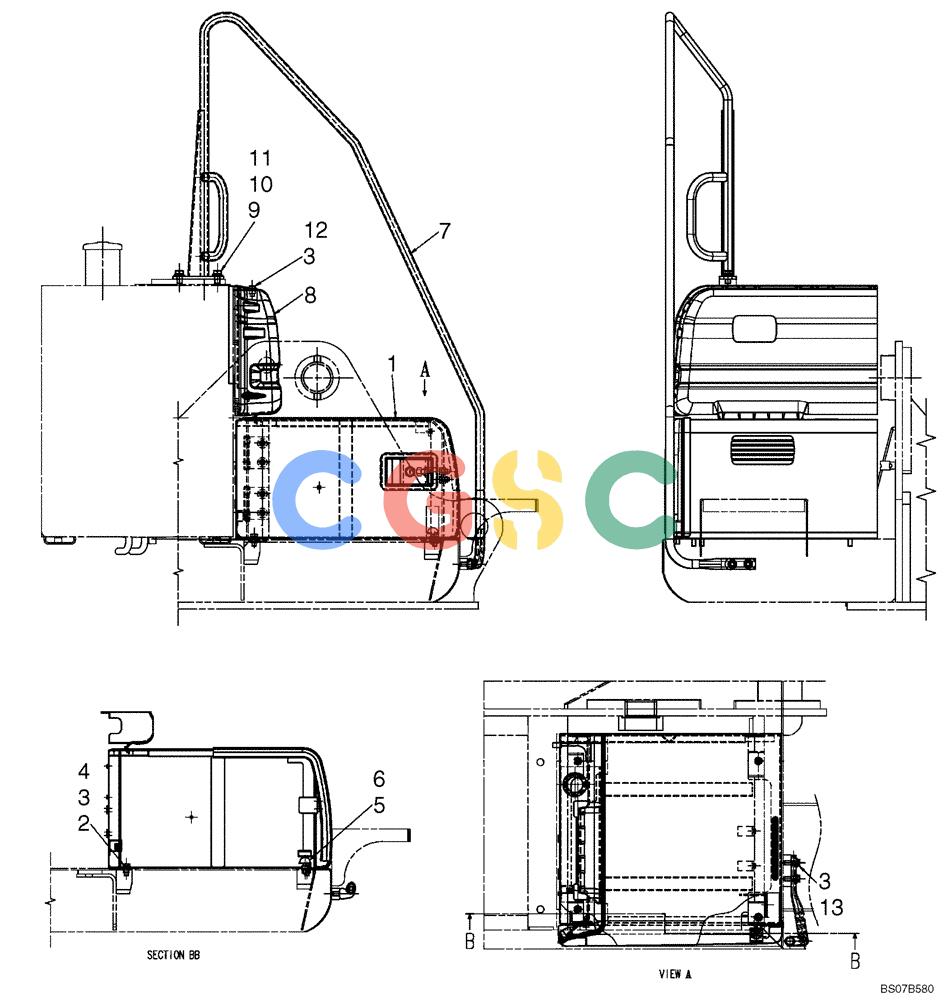

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-59-01[00]) - GUARD INSTALLATION, (TOOL BOX) (YB21C00026F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
826 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB21C01410F1 | [1] | BOX | KOBTool Assembly Superseded by part number: 87492196 |
| 2. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 3. | ZW16H12000 | [8] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 4. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 5. | YN21C03212P1 | [1] | STOP | KOBØ36 x 20mm Long (M10x1.25x33mm Long) |
| 6. | ZN18F10008 | [1] | NUT | KOBM10x1.25mm |
| 7. | YN21C03397P2 | [1] | PILLAR | SM Superseded by part number: 87718035 |
| 8. | YB21C01453F1 | [1] | COVER ASSY | KOB(Incls. Rubber YN21C03810P1 & Cover) Superseded by part number: 87598916 |
| . . | NA | [1] | NOT SERVICED | FORCover Assembly, (Part of YB21C01453F1), Not Shown |
| . . | YN21C03810P1 | [1] | RUBBER | KOB(Part of YB21C01453F1), Not Shown |
| 9. | ZS18C16030 | [2] | SCREW,Hex, M16 x 30mm | KOBM16x2.0x30mm |
| 10. | ZW26X16000 | [2] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 11. | ZW16H16000 | [2] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 12. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 13. | ZS18C12040 | [2] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
