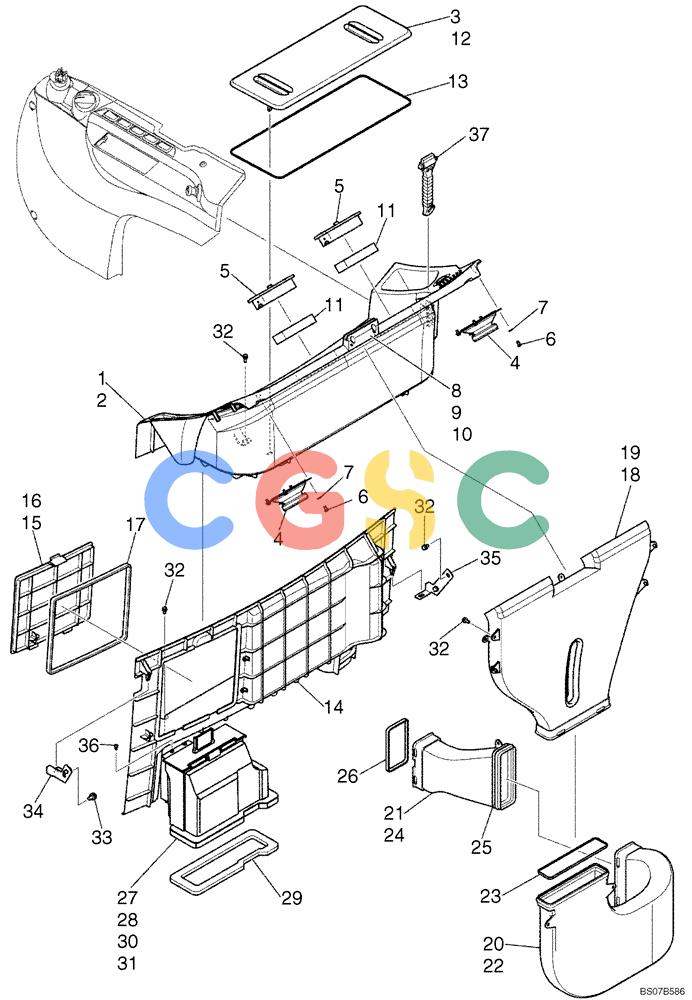

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-62[02]) - INSTRUMENT PANEL ASSEMBLY N&B (YN17M00063F1 & YN17M00056F1) PAGE 3 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
774 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN17M01328F1 | [1] | COVER ASSY | KOBIncls. Refs. 2 - 7 |
| 2. | YN17M01287F1 | [1] | GUARD | SMIncls. Refs. 8 - 11 |
| 3. | YN17M01291F1 | [1] | GUARD | SMIncls. Refs. 12 & 13 |
| 4. | YN54S00006P1 | [2] | SPEAKER | KOB Superseded by part number: YN54S00050P2 |
| 5. | YN20M01568P1 | [2] | GRILLE | SM |
| 6. | YN17M01262P1 | [8] | SCREW,Phillips Drive, Pan HD, M5 x 10mm | SMM05x10mm Self-Taper |
| 7. | ZW16P05000 | [8] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 8. | YN17M01280P1 | [1] | GASKET | SM |
| 9. | YN17M01259P1 | [2] | BOLT | SMM05x0.8x15mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C05016 |
| 10. | YN17M01260P1 | [2] | NUT | SMM05x0.8mm |
| 11. | YN17M01289P1 | [2] | FOAM INSULATION | KOB6x8x472mm Long (18-37/64 in) |
| 12. | YN17M01187P1 | [1] | COVER | KOB Superseded by part number: YN17M01187P2 |
| 13. | YN17M01292P1 | [1] | FOAM INSULATION | KOB4x5x1280mm Long (50-25/64 in) |
| 14. | YN17M01325F1 | [1] | GUARD | SMIncls. Refs. 15 Superseded by part number: YN17M01325F2 |
| 15. | YN17M01297F1 | [1] | GUARD | SMIncls. Refs. 16 & 17 Superseded by part number: YN17M01297F2 |
| 16. | YN17M01200P1 | [1] | COVER | KOB |
| 17. | YN17M01298P1 | [1] | FOAM INSULATION | KOB3x4x1000mm Long (39-3/8 in) |
| 18. | YN20M01628F1 | [1] | DUCT | SMIncls. Refs. 19 - 21 |
| 19. | YN20M01630P1 | [1] | DUCT | KOB |
| . . | YN20M01684P1 | [2] | Clip -- (Part of YN20M01628F1), Not Shown | |
| . . | YN20M01685P1 | [2] | Screw, Tapping -- (Part of YN20M01628F1), Not Shown | |
| 20. | YN20M01631F1 | [1] | DUCT | KOBIncls. Refs. 22 & 23 |
| 21. | YN20M01634F1 | [1] | DUCT | KOBIncls. Refs. 24 - 26 |
| 22. | YN20M01632P1 | [1] | DUCT | KOB |
| 23. | YN20M01633P1 | [1] | FOAM INSULATION | KOB6x8x550mm Long (21-21/32 in) |
| 24. | YN20M01635P1 | [1] | DUCT | KOB |
| 25. | YN20M01636P1 | [1] | FOAM INSULATION | KOB6x8x485mm Long (19-3/32 in) |
| 26. | YN20M01637P1 | [1] | FOAM INSULATION | KOB6x8x410mm Long (16-9/64 in) |
| 27. | YN20M01638F1 | [1] | DUCT | SMIncls. Refs. 28 & 29 |
| 28. | YN20M01639F1 | [1] | DUCT | KOB Superseded by part number: YN20M01638F1 |
| 29. | YN20M01642P1 | [1] | FOAM INSULATION | KOB104.5x10x300mm Long (11-13/16 in) |
| 30. | YN20M01640P1 | [1] | DUCT | KOB |
| 31. | YN20M01641P1 | [1] | DUCT | KOB |
| 32. | ZM66C06016 | [14] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 33. | ZM66C08016 | [2] | BOLT | KOBM08x1.25x16mm (Incls. Washer & Lockwasher) |
| 34. | YN17M01278P2 | [1] | BRACKET | SM |
| 35. | YN17M01279P1 | [1] | BRACKET | SM |
| 36. | ZS32T50012 | [2] | SCREW | KOBM05x12mm Self-Taper |
| 37. | YN01T01049F1 | [1] | HAMMER | SM |
