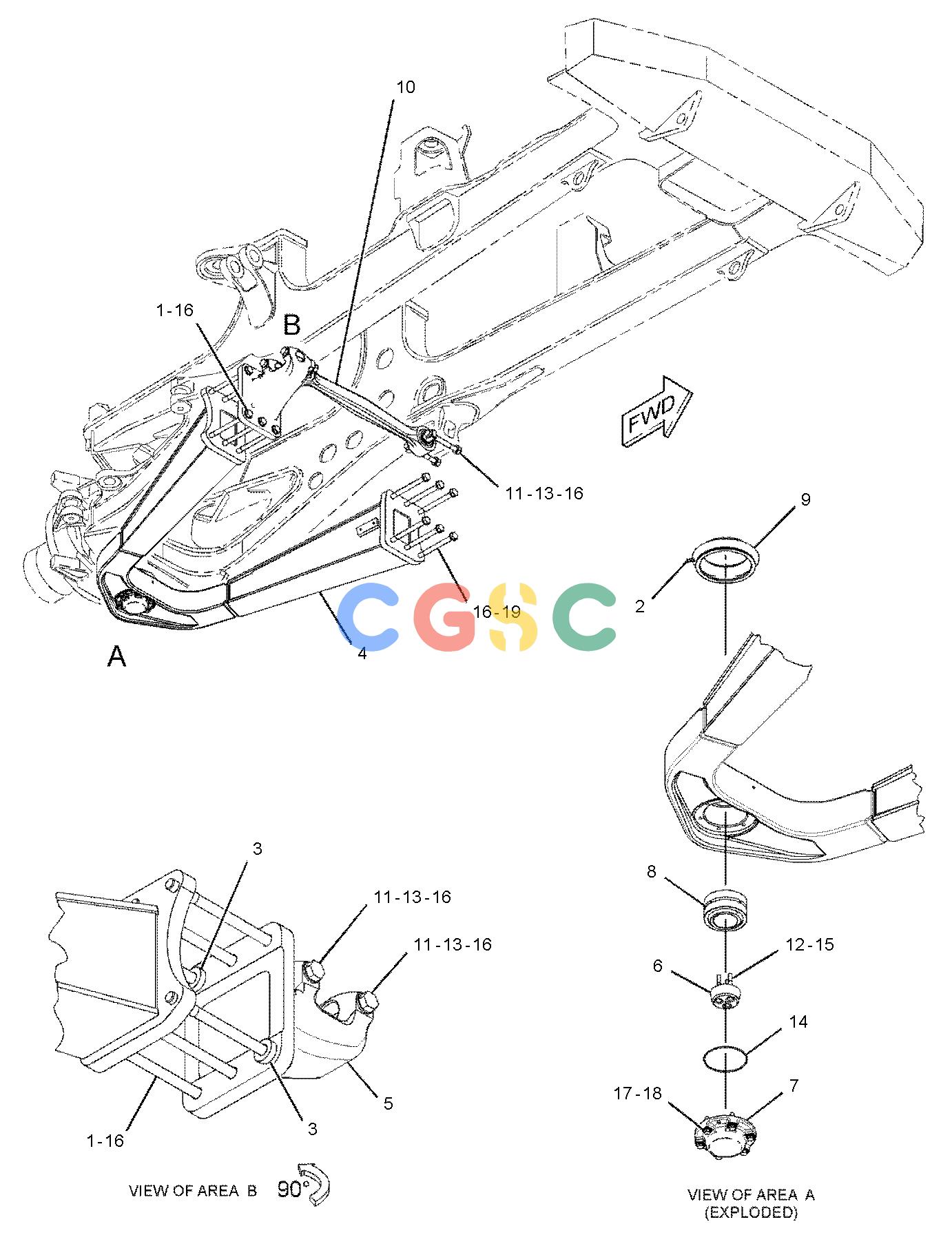

卡特零件查询（735） 353-3432: FRAME GP-FRONT SUSPENSION
广数供应链运营团队, 15 02月, 2025，浏览：
791 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 231-7071 | [6] | BOLT(M24X3X315-MM) | |
| 2. | 5U-7151 | [1] | CAP-GREASE | |
| 3. | 124-5529 | [2] | DOWEL | |
| 4. | 141-6898 | [1] | FRAME AS-SUSPENSION | |
| 5. | 159-1076 | [1] | BRACKET | |
| 6. | 233-9955 | [1] | WASHER-SPECIAL | |
| 7. | 254-0811 | [1] | COLLAR | |
| 8. | 341-0966 | [1] | BEARING-SPHERICAL | |
| 9. | 343-2874 | [1] | SEAL-BELLOWS | |
| 10. | 353-2230 | [1] | ROD AS | |
| | 178-3313 | [1] | ROD | |
| | 351-8204 | [2] | BUSHING | |
| 11. | 8T-0364M | [4] | BOLT(M24X3X220-MM) | |
| 12. | 8T-0372M | [3] | BOLT(M12X1.75X90-MM) | |
| 13. | 7X-0851M | [4] | NUT(M24X3-THD) | |
| 14. | 2H-3935 | [1] | SEAL-O-RING | |
| 15. | 5P-8245 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 6V-8237 | [20] | WASHER(26X44X4-MM THK) | |
| 17. | 8T-4194M | [6] | BOLT(M12X1.75X50-MM) | |
| 18. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-5397M | [6] | BOLT(M24X3X280-MM) | |
| | M | | METRIC PART |
