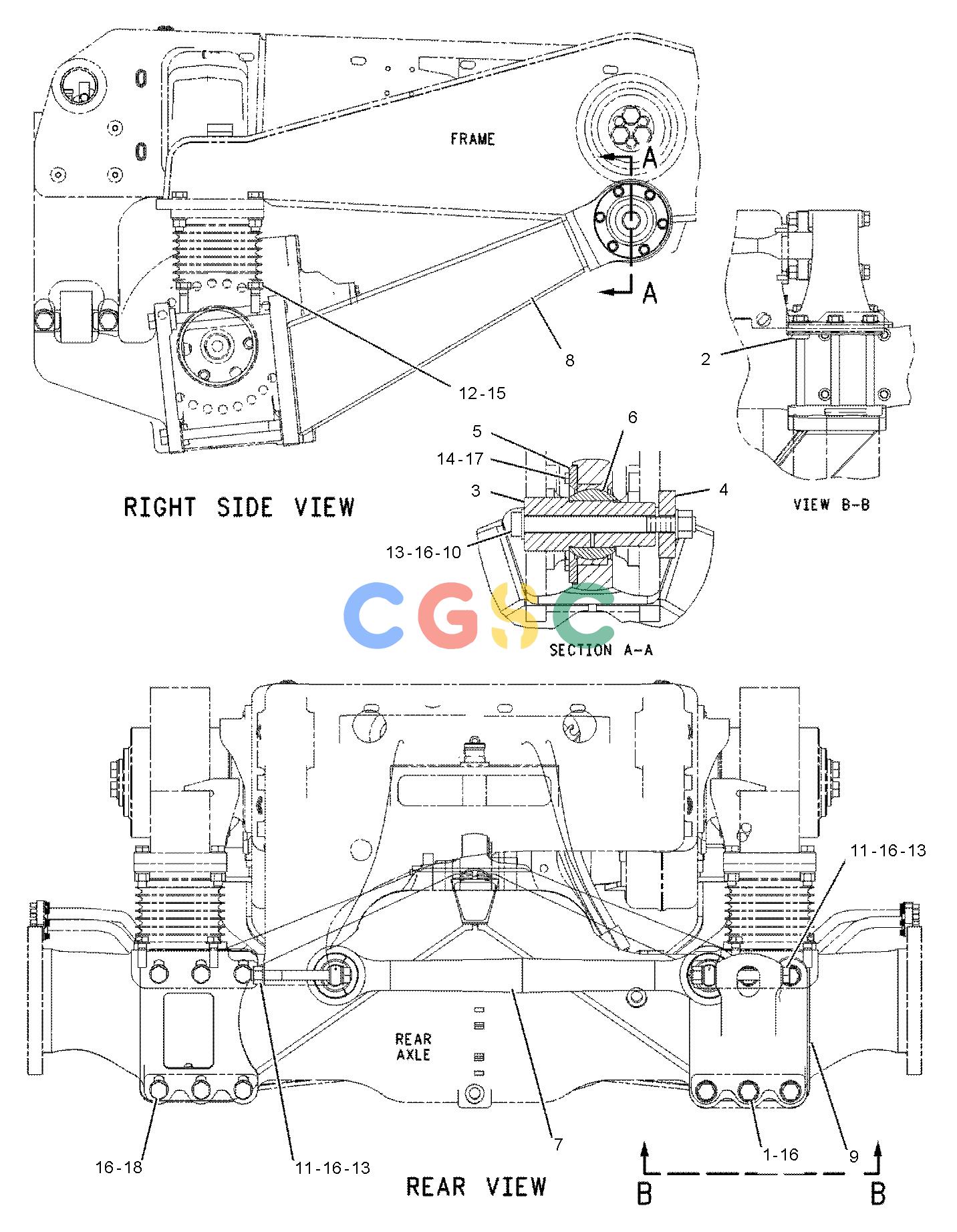

卡特零件查询（735） 178-3852: FRAME GP-REAR SUSPENSION
广数供应链运营团队, 15 02月, 2025，浏览：
290 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 231-7071 | [6] | BOLT(M24X3X315-MM) | |
| 2. | 124-5529 | [2] | DOWEL | |
| 3. | 155-0195 | [1] | PIN | |
| 4. | 155-0198 | [1] | WASHER(26X100X25-MM THK) | |
| 5. | 155-0385 | [1] | RING-CLAMP | |
| 6. | 155-3537 | [1] | BEARING | |
| 7. | 353-2230 | [1] | ROD AS | |
| | 351-8204 | [2] | BUSHING | |
| | 178-3313 | [1] | ROD | |
| 8. | 178-9223 | [1] | FRAME AS | |
| 9. | 180-8517 | [1] | BRACKET-STABILIZER | |
| 10. | 8T-0367M | [1] | BOLT(M24X3X260-MM) | |
| 11. | 8T-0364M | [4] | BOLT(M24X3X220-MM) | |
| 12. | 7X-2563M | [8] | BOLT(M20X2.5X60-MM) | |
| 13. | 7X-0851M | [5] | NUT(M24X3-THD) | |
| 14. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4123 | [8] | WASHER(3.62X5.75X0.375-MM THK) | |
| 16. | 6V-8237 | [22] | WASHER(26X44X4-MM THK) | |
| 17. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 18. | 8T-5397M | [6] | BOLT(M24X3X280-MM) | |
| | M | | METRIC PART |
