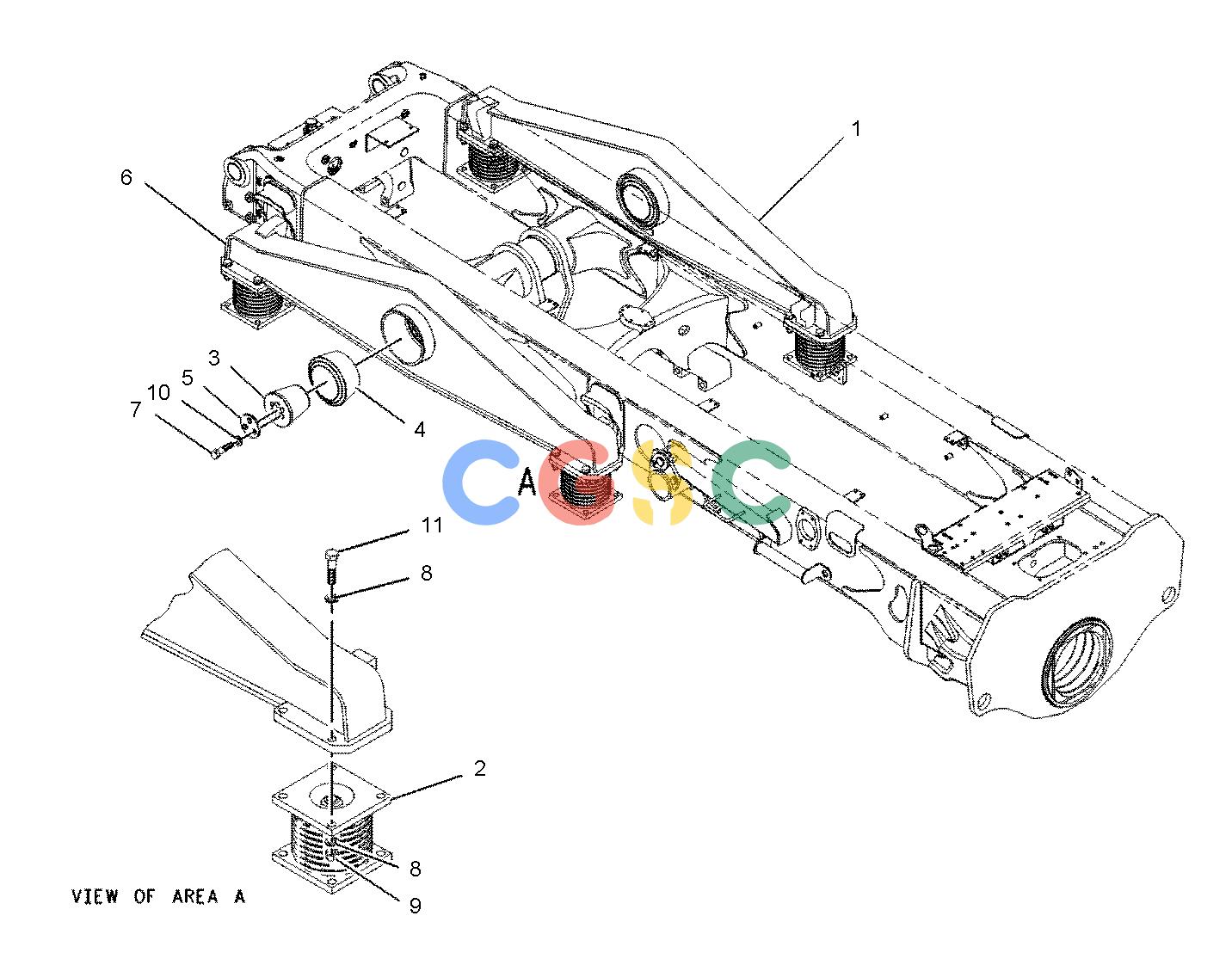

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 138-9223 | [1] | ARM AS(LH) | |
| 2. | 211-4987 | [4] | MOUNT AS | |
| 3. | 138-9226 | [2] | CAP-END | |
| 4. | 138-9231 | [4] | BUSHING | |
| 5. | 143-3911 | [2] | WASHER | |
| 6. | 148-3665 | [1] | ARM AS(RH) | |
| 7. | 8T-0666M | [6] | BOLT(M24X3X90-MM) | |
| 8. | 8T-4123 | [32] | WASHER(3.62X5.75X0.375-MM THK) | |
| 9. | 8T-4131M | [16] | NUT(M20X2.5-THD) | |
| 10. | 6V-8237 | [6] | WASHER(26X44X4-MM THK) | |
| 11. | 8T-4187M | [16] | BOLT(M20X2.5X80-MM) | |
| M | METRIC PART | |||
