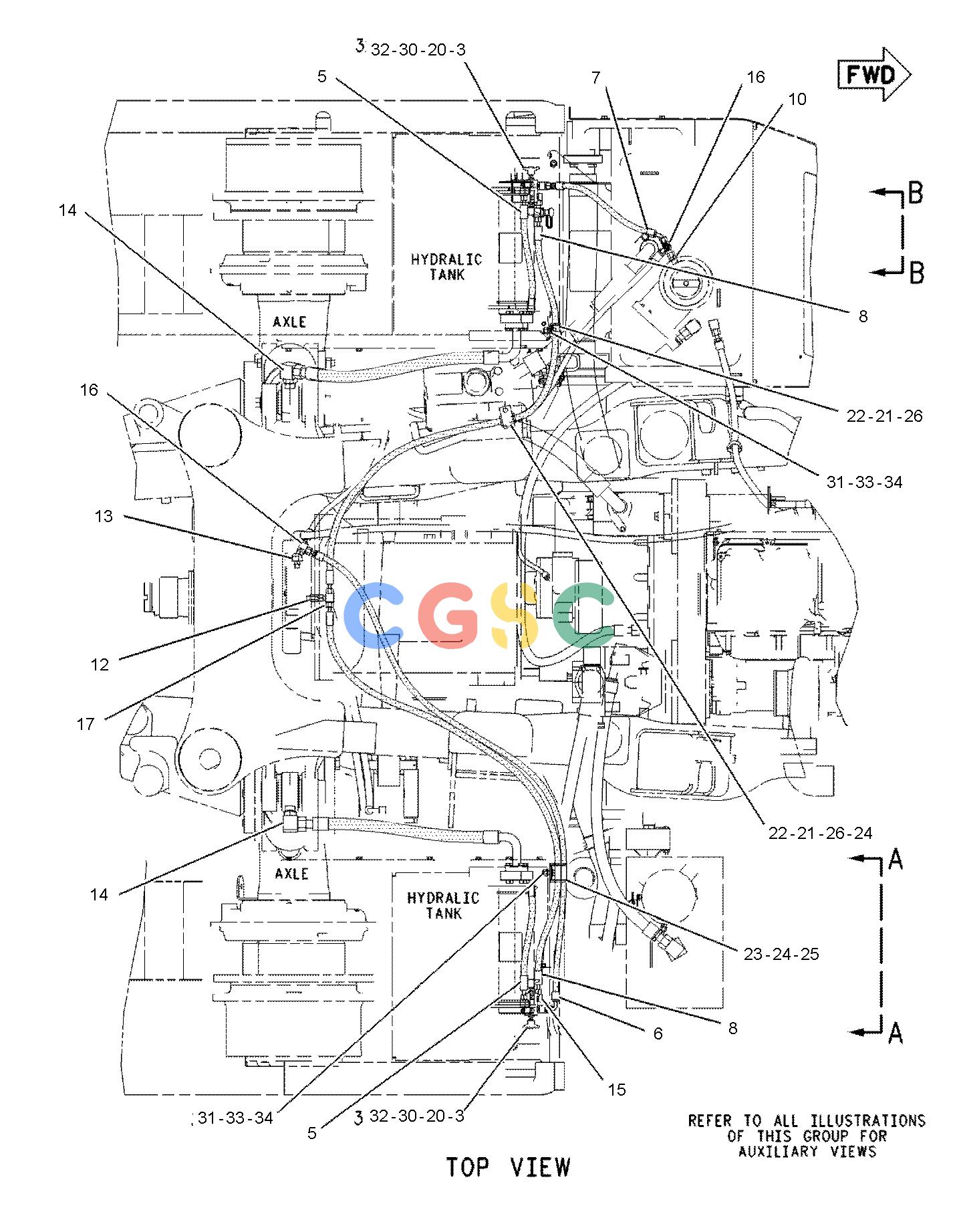

卡特零件查询（735） 166-3945: LINES GP-SUSPENSION
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8424 | [1] | TEE AS | |
| | 8T-8902 | [1] | ADAPTER-TEE | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 2. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 3. | 187-5092 | [2] | VALVE GP-MANUAL | |
| | | | (EACH INCLUDES) |
| | 208-9093 | [2] | VALVE GP-CONTROL(SUSPENSION) | |
| | | | (EACH INCLUDES) |
| | 6V-6560 | [1] | SEAL-O-RING | |
| 4. | 195-0794I | [2] | HOSE AS | |
| 5. | 195-0798I | [2] | HOSE AS | |
| 6. | 195-0799I | [1] | HOSE AS | |
| 7. | 195-0800I | [1] | HOSE AS | |
| 8. | 195-0803I | [2] | HOSE AS | |
| 9. | 207-0401 | [2] | FLANGE | |
| 10. | 148-8318 | [1] | CONNECTOR AS | |
| | 6V-8634 | [1] | CONNECTOR | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 11. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 12. | 148-8338 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-0075 | [1] | CONNECTOR | |
| 13. | 148-8353 | [1] | ELBOW AS | |
| | 6V-9001 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 14. | 148-8357 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9008 | [1] | ELBOW | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 15. | 148-8378 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8724 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 16. | 148-8433 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 17. | 148-8434 | [1] | TEE AS | |
| | 6V-9843 | [1] | TEE | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 18. | 150-3036 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-1905 | [1] | ELBOW | |
| 19. | 4J-0520 | [4] | SEAL-O-RING | |
| 20. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 21. | 5P-7462 | [2] | CLIP(SLOT) | |
| 22. | 5P-7463 | [2] | CLIP(TAB) | |
| 23. | 5P-7468 | [1] | CLIP(SLOT) | |
| 24. | 5P-7469 | [1] | CLIP(TAB) | |
| 25. | 5P-8444 | [1] | GROMMET(37-MM ID) | |
| 26. | 6V-0683 | [2] | GROMMET | |
| 27. | 6V-0852 | [1] | CAP-DUST | |
| 28. | 8C-3206 | [4] | FLANGE-HALF | |
| 29. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4197M | [4] | BOLT(M8X1.25X40-MM) | |
| 31. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 34. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 35. | 8T-6466M | [8] | BOLT(M10X1.5X60-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
