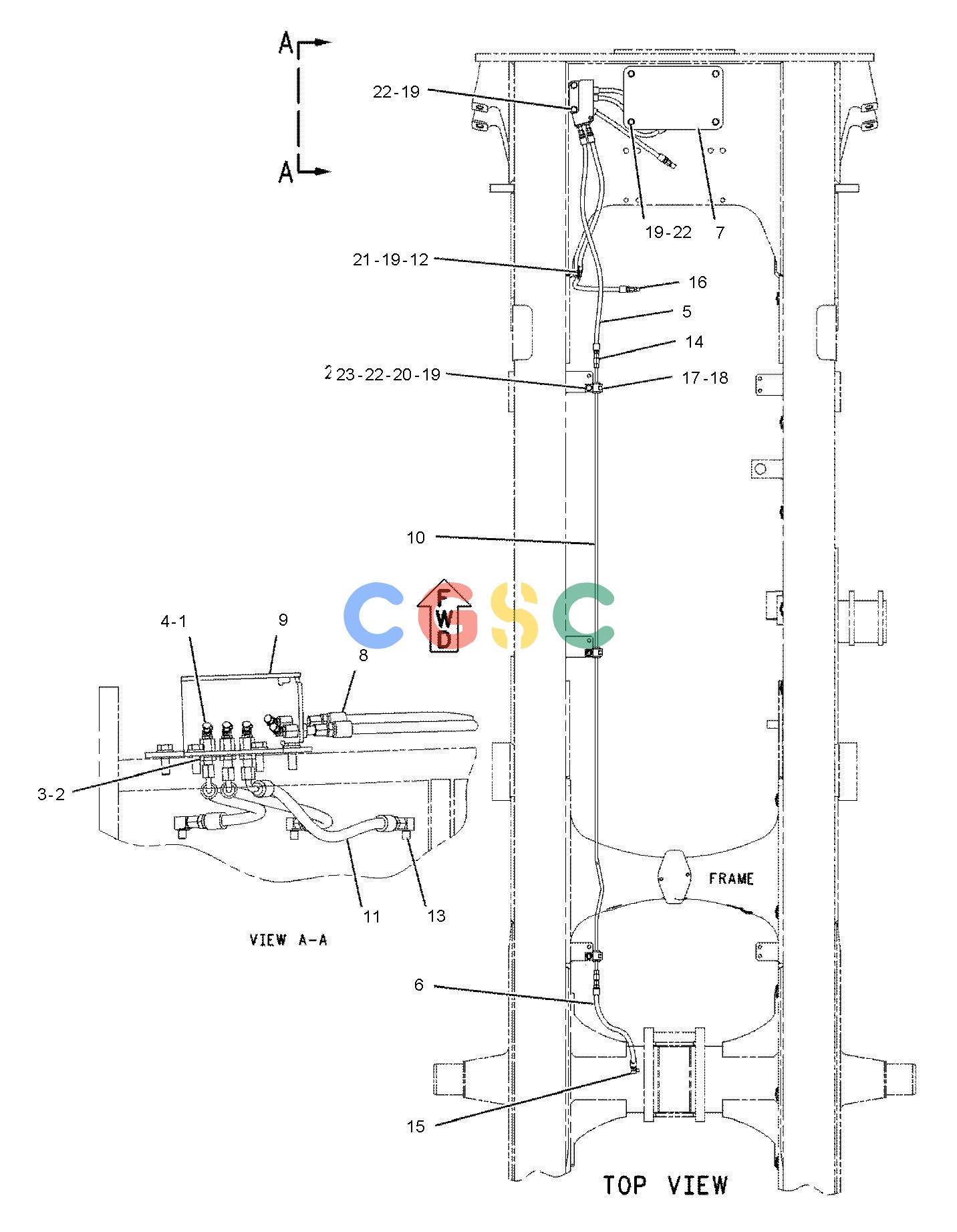

卡特零件查询（735） 152-6933: LINES GP-GREASE
广数供应链运营团队, 15 02月, 2025，浏览：
714 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-4132 | [4] | ELBOW | |
| 2. | 3B-8489 | [7] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 4U-1697 | [7] | ADAPTER-BULKHEAD | |
| 4. | 5B-3254 | [7] | NUT-JAM(7/16-20-THD) | |
| 5. | 5U-7151 | [7] | CAP-GREASE | |
| 6. | 195-3641I | [1] | HOSE AS | |
| 7. | 195-3642I | [2] | HOSE AS | |
| 8. | 195-3643I | [2] | HOSE AS | |
| 9. | 225-8819I | [2] | HOSE AS | |
| 10. | 2N-1287 | [3] | ELBOW-FLARED | |
| 11. | 6D-3479 | [7] | CLIP(LOOP) | |
| 12. | 6U-0455 | [4] | STRAP | |
| 13. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-5360 | [7] | WASHER(12X22.5X2.5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
