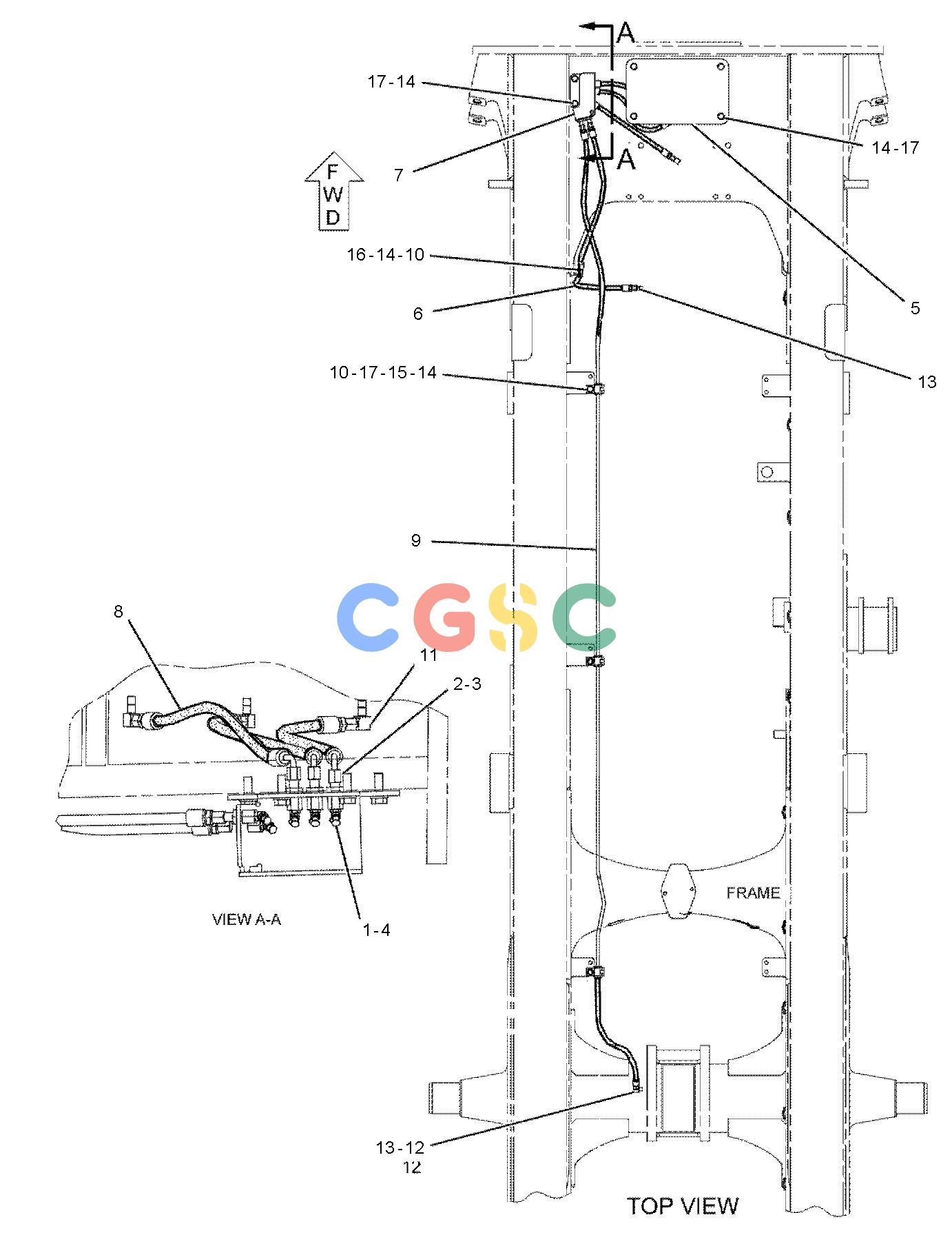

卡特零件查询（735） 152-7030: LINES GP-GREASE
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [5] | ELBOW | |
| 2. | 4U-1697 | [5] | ADAPTER-BULKHEAD | |
| 3. | 5B-3254 | [5] | NUT-JAM(7/16-20-THD) | |
| 4. | 5U-7151 | [5] | CAP-GREASE | |
| 5. | 145-1058I | [1] | HOSE AS | |
| 6. | 148-0168I | [1] | HOSE AS | |
| 7. | 153-8341 | [1] | PLATE-COVER | |
| 8. | 159-3122I | [1] | HOSE AS | |
| 9. | 159-7192 | [1] | BRACKET | |
| 10. | 191-7565 | [1] | TUBE AS | |
| 11. | 193-7864I | [3] | HOSE AS | |
| 12. | 124-0174 | [1] | CLIP(LOOP) | |
| 13. | 2N-1287 | [3] | ELBOW-FLARED | |
| 14. | 5P-5008 | [2] | REDUCER(FLARED) | |
| 15. | 7K-9197 | [1] | ELBOW | |
| 16. | 8L-6557 | [2] | CONNECTOR | |
| 17. | 8T-1887 | [3] | CLIP(SLOT) | |
| 18. | 8T-1888 | [3] | CLIP(TAB) | |
| 19. | 8T-4121 | [13] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 21. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 22. | 8T-4195M | [9] | BOLT(M10X1.5X30-MM) | |
| 23. | 8W-8909 | [3] | SLEEVE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
