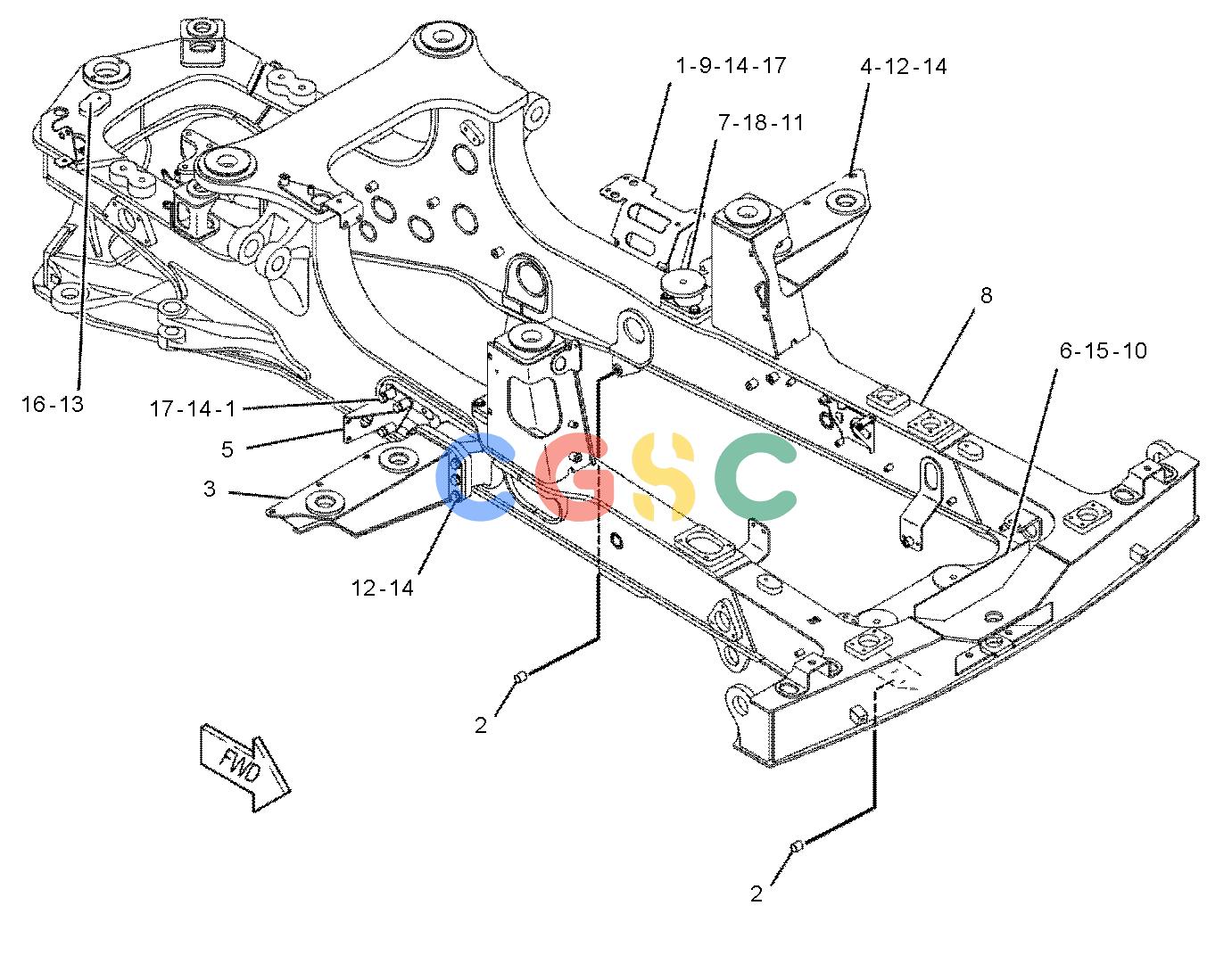

卡特零件查询（735） 141-6855: FRAME GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
210 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 112-8517 | [2] | BUSHING | |
| 2. | 141-6869 | [1] | FRAME AS-REAR | |
| | 7T-1099 | [9] | LINK | |
| | 9G-9155 | [2] | CLIP | |
| 3. | 142-0050 | [2] | BUSHING | |
| 4. | 142-0539 | [1] | STRUT AS | |
| | 3U-8952 | [1] | PIN AS | |
| 5. | 144-4083 | [1] | BRACKET | |
| 6. | 151-8455 | [1] | PIN AS | |
| 7. | 162-5516 | [2] | BUSHING | |
| 8. | 162-5517 | [2] | SEAL | |
| 9. | 162-5518 | [2] | RING-RETAINING | |
| 10. | 174-6769 | [1] | FRAME AS-GUARD | |
| 11. | 189-2070 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [7] | NUT-WELD(M12X1.75-THD) | |
| | 153-8340 | [1] | BRACKET | |
| 12. | 189-2908 | [1] | CLAMP AS-BAND | |
| 13. | 194-5012 | [1] | DEFLECTOR | |
| 14. | 7X-2557M | [1] | BOLT(M16X2X140-MM) | |
| 15. | 8T-0365M | [6] | BOLT(M24X3X240-MM) | |
| 16. | 8T-4132M | [1] | NUT(M16X2-THD) | |
| 17. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 18. | 6V-8237 | [6] | WASHER(26X44X4-MM THK) | |
| 19. | 8T-4183M | [8] | BOLT(M12X1.75X40-MM) | |
| 20. | 8T-4194M | [1] | BOLT(M12X1.75X50-MM) | |
| 21. | 8T-4223 | [22] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 22. | 8T-4244M | [9] | NUT(M12X1.75-THD) | |
| 23. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
