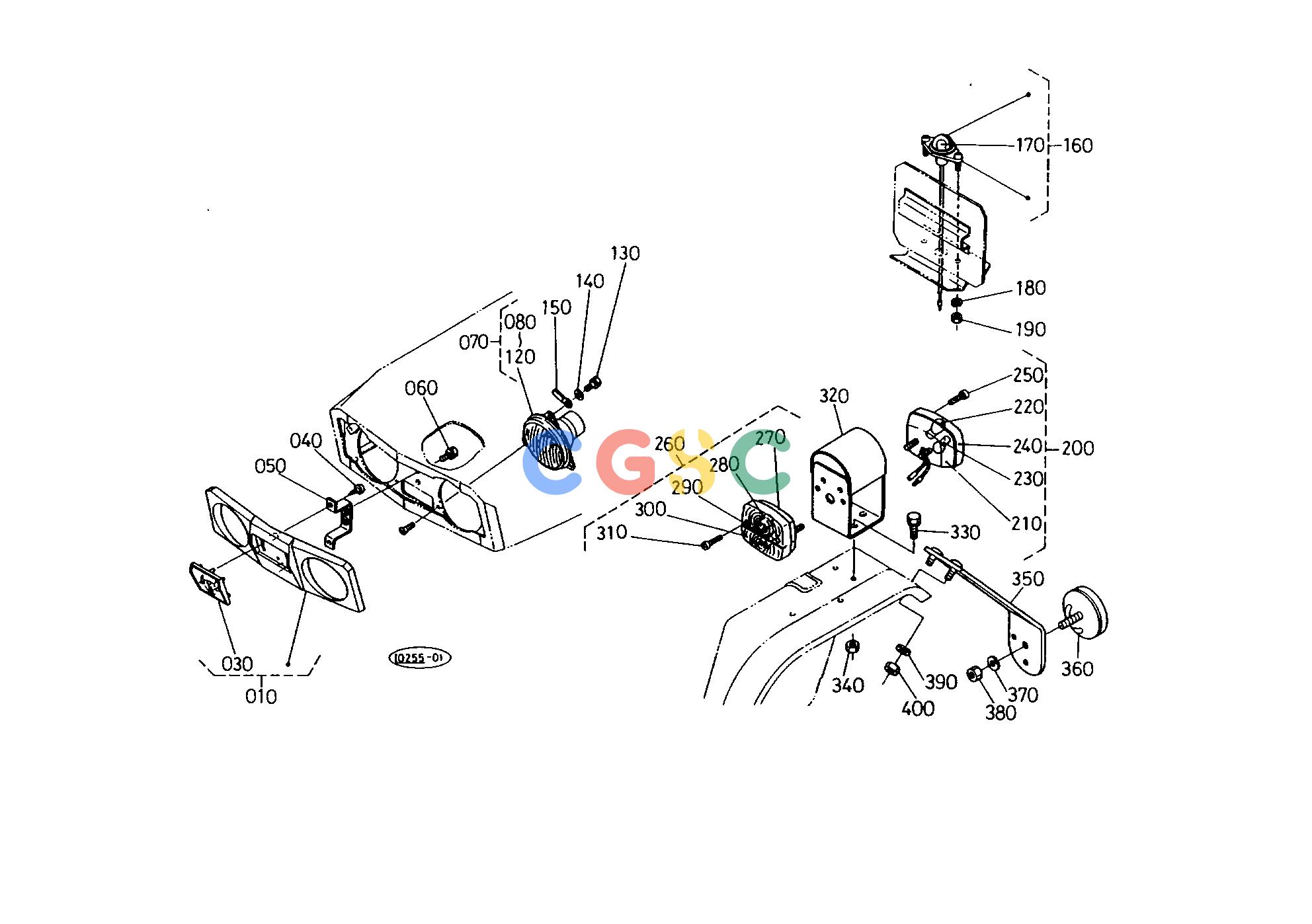

久保田零件查询T04002 LIGHT [FR] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6784054200
|
[1] |
ASSY GRILLE LIGHT
|
0.5940(lbs); 0.270
|
| 030. |
6711154240
|
[1] |
MASCOT
|
0.0440(lbs); 0.020
|
| 040. |
0371450614
|
[6] |
SCREW
|
0.0044(lbs); 0.002
|
| 050. |
6784054242
|
[1] |
STAY LIGHT
|
0.0880(lbs); 0.040
|
| 060. |
0102350612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 070. |
6784055660
|
[2] |
UNIT LAMP HEAD
|
1.2980(lbs); 0.590
|
| 080. |
3526133900
|
[2] |
ASSY LIGHT HEAD
|
0.0000(lbs); 0.000
|
| 090. |
6670655610
|
[2] |
BULB
|
0.0000(lbs); 0.000
|
| 100. |
3526133910
|
[2] |
BULB
|
0.0000(lbs); 0.000
|
| 110. |
3526133920
|
[2] |
SOCKET
|
0.0000(lbs); 0.000
|
| 120. |
6784055630
|
[2] |
CONNECTOR
|
0.0000(lbs); 0.000
|
| 130. |
0120250616
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 140. |
0401350060
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 150. |
1524167580
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 160. |
3325175860
|
[1] |
ASSY LIGHT NUMBER
|
0.1650(lbs); 0.075
|
| 170. |
3620075830
|
[1] |
BULB LIGHT
|
0.0330(lbs); 0.015
|
| 180. |
0451250040
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 190. |
0205450040
|
[3] |
NUT
|
0.0066(lbs); 0.003
|
| 200. |
6670655730
|
[2] |
ASSY LAMP FLASHER
|
0.7480(lbs); 0.340
|
| 200. |
H667055700
|
[2] |
ASSY LAMP FLASHER
|
0.7480(lbs); 0.340
|
| 210. |
6670655910
|
[2] |
SOCKET
|
0.4224(lbs); 0.192
|
| 220. |
6670655920
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 230. |
6670655930
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 240. |
6670655940
|
[2] |
LENS
|
0.3300(lbs); 0.150
|
| 250. |
6670655950
|
[4] |
BOLT
|
0.0088(lbs); 0.004
|
| 250. |
H667055950
|
[4] |
BOLT
|
0.0088(lbs); 0.004
|
| 260. |
3517134200
|
[2] |
ASSY LAMP FLASHER
|
0.8140(lbs); 0.370
|
| 270. |
6670655910
|
[2] |
SOCKET
|
0.4224(lbs); 0.192
|
| 280. |
6670655920
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 290. |
6670655930
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 300. |
3517134210
|
[2] |
LENS
|
0.3300(lbs); 0.150
|
| 310. |
6670655950
|
[4] |
BOLT
|
0.0088(lbs); 0.004
|
| 310. |
H667055950
|
[4] |
BOLT
|
0.0088(lbs); 0.004
|
| 320. |
6784055510
|
[2] |
HOLDER LAMP
|
0.7480(lbs); 0.340
|
| 330. |
0120250614
|
[4] |
BOLT
|
0.0132(lbs); 0.006
|
| 340. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 350. |
6784055540
|
[2] |
STAY REFLECTOR
|
0.4840(lbs); 0.220
|
| 360. |
6760155730
|
[2] |
ASSY REFLETOR
|
0.0440(lbs); 0.020
|
| 370. |
0451250050
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 380. |
0205450050
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 390. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 400. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
