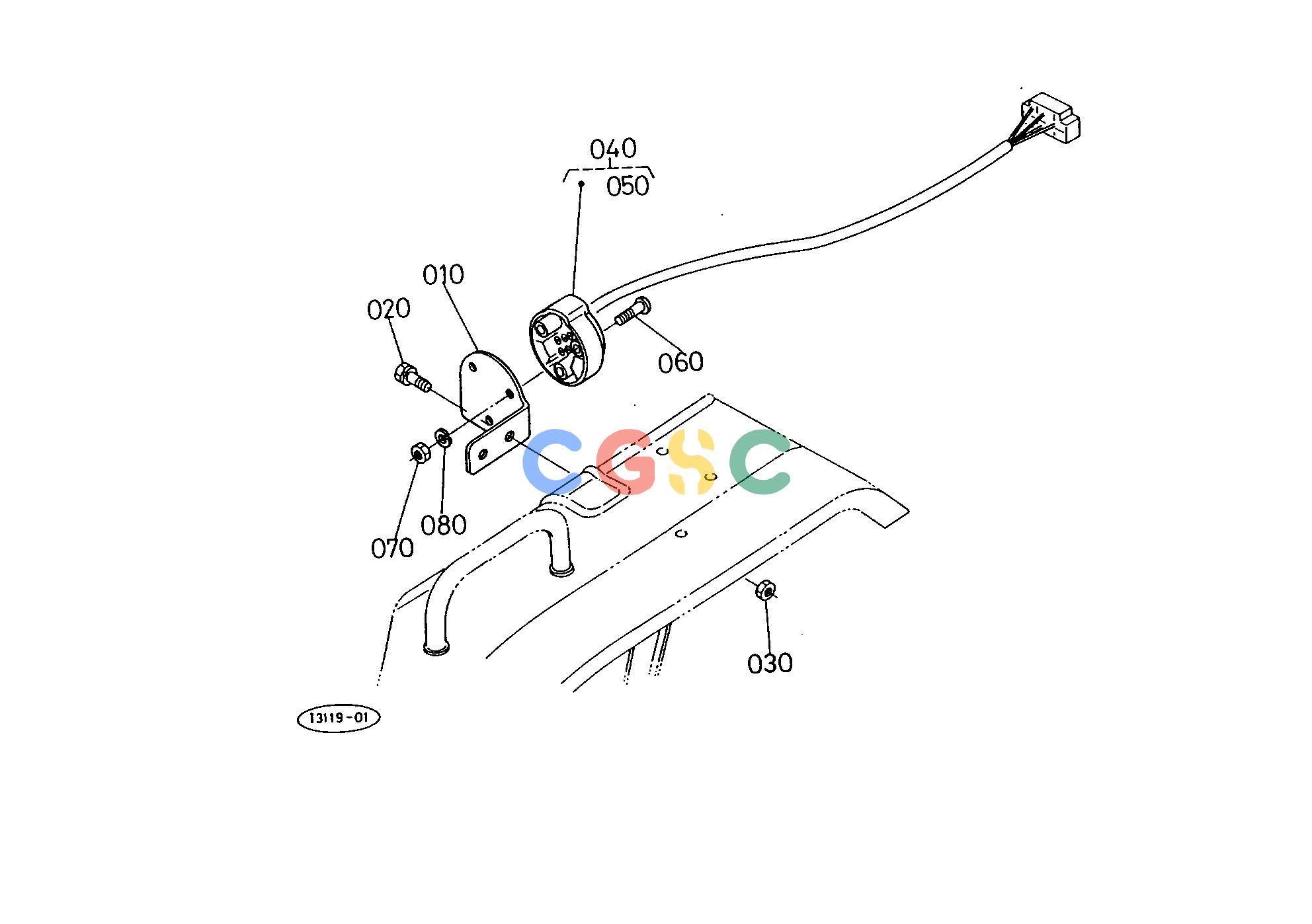

久保田零件查询T04003 TRAILER SOCKET [FR] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
639 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6784052170
|
[1] |
PLATE TRAILERSOCKET
|
0.2420(lbs); 0.110
|
| 020. |
0112350814
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 030. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 040. |
6670955850
|
[1] |
ASSY SOCKET TRAILER
|
0.0000(lbs); 0.000
|
| 050. |
6670955250
|
[1] |
WIRE HARNESS
|
0.0000(lbs); 0.000
|
| 060. |
0305450530
|
[3] |
SCREW PAN HEAD
|
0.0110(lbs); 0.005
|
| 070. |
0205450050
|
[3] |
NUT
|
0.0044(lbs); 0.002
|
| 080. |
0451250050
|
[3] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
