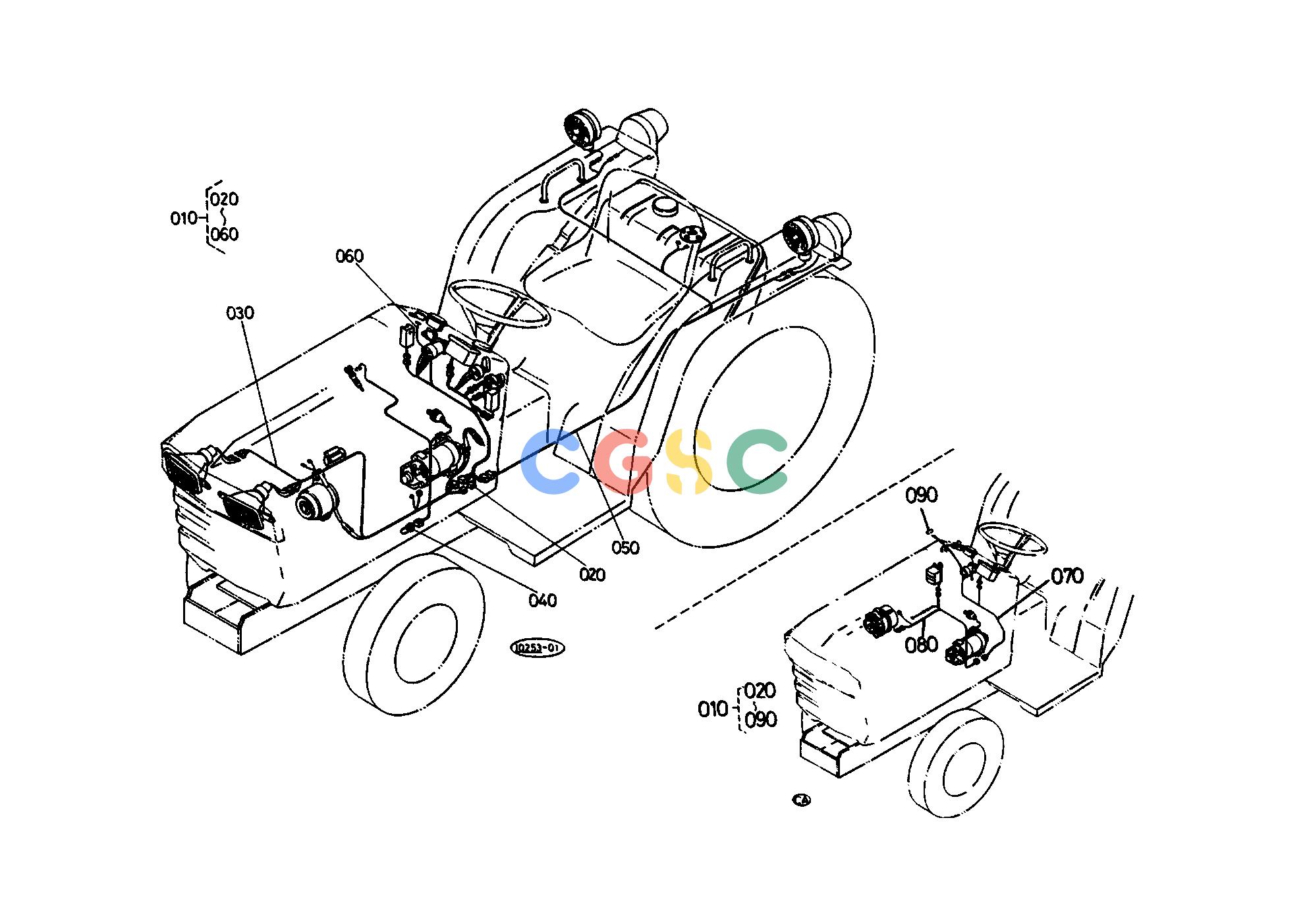

久保田零件查询T04301 WIRE HARNESS [A CA AU] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
170 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6636155100
|
[1] |
ASSY WIRE HARNESS
|
1.9800(lbs); 0.900
|
| 010. |
6637355100
|
[1] |
ASSY WIRE HARNESS
|
2.4200(lbs); 1.100
|
| 020. |
6636155110
|
[1] |
WIRE HARNESS
|
0.7480(lbs); 0.340
|
| 030. |
6636155120
|
[1] |
WIRE HARNESS
|
0.8580(lbs); 0.390
|
| 040. |
6711155190
|
[1] |
RING FUSIBLE
|
0.0110(lbs); 0.005
|
| 050. |
6636155130
|
[1] |
WIRE HARNESS
|
0.4620(lbs); 0.210
|
| 060. |
6760155240
|
[1] |
WIRE HARNESS
|
0.0330(lbs); 0.015
|
| 070. |
6782055152
|
[1] |
HARNESS ALTERNATOR
|
0.1760(lbs); 0.080
|
| 080. |
6782055160
|
[1] |
HARNESS ALTERNATOR
|
0.2376(lbs); 0.108
|
| 090. |
6690755190
|
[1] |
TUBE VINYL
|
0.0022(lbs); 0.001
|
