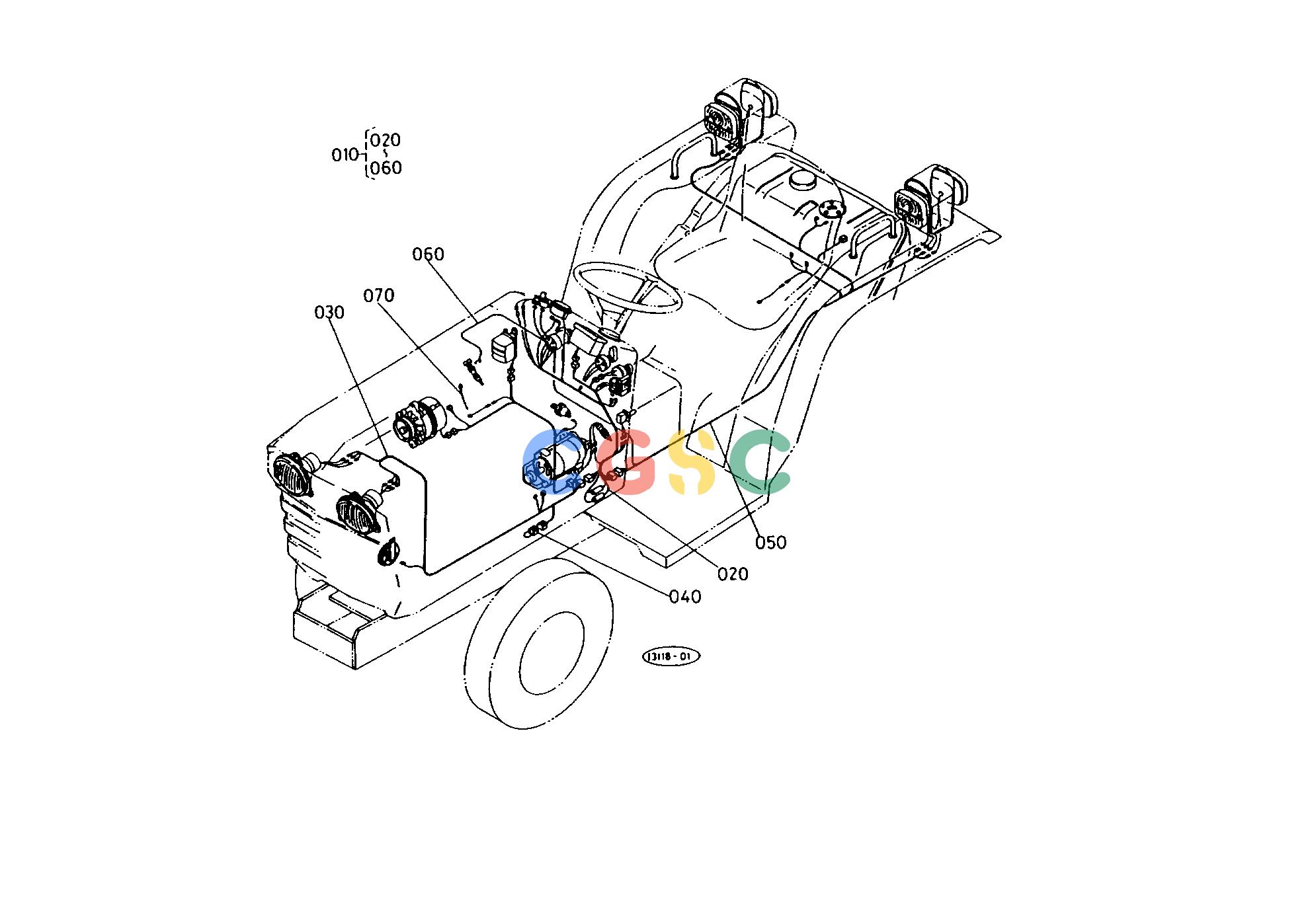

久保田零件查询T04302 WIRE HARNESS [FR] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
456 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6637455100
|
[1] |
ASSY WIRE HARNESS
|
2.4640(lbs); 1.120
|
| 020. |
6784055113
|
[1] |
WIRE HARNESS
|
0.0000(lbs); 0.000
|
| 030. |
6637455120
|
[1] |
WIRE HARNESS
|
0.9020(lbs); 0.410
|
| 040. |
6711155190
|
[1] |
RING FUSIBLE
|
0.0110(lbs); 0.005
|
| 050. |
6637455130
|
[1] |
WIRE HARNESS
|
0.9680(lbs); 0.440
|
| 060. |
6780055140
|
[1] |
WIRE HARNESS
|
0.1320(lbs); 0.060
|
| 070. |
3435029380
|
[1] |
BAND CORD
|
0.0022(lbs); 0.001
|
