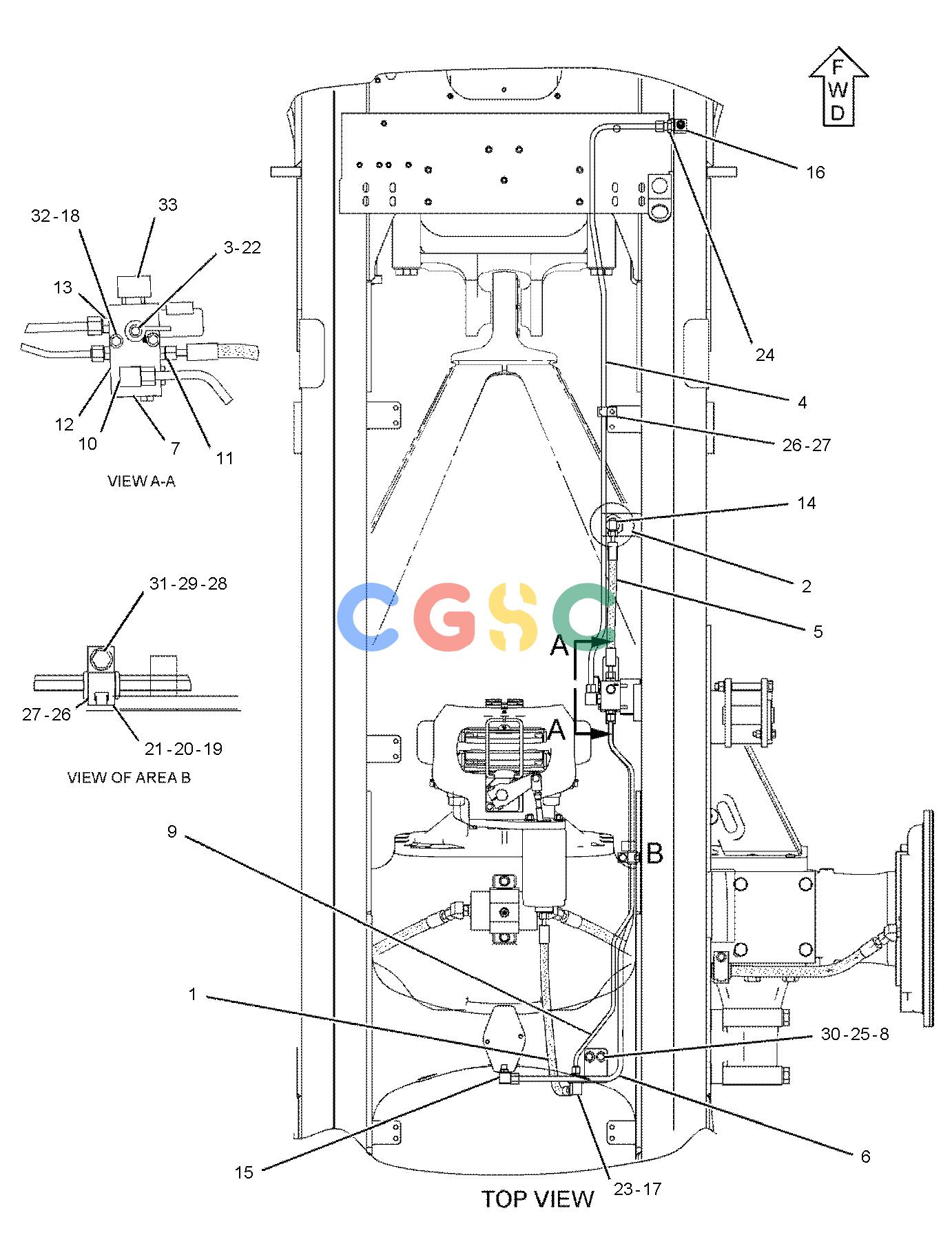

卡特零件查询（735） 152-7029: CONTROL GP-PARKING BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
573 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 128-4197I | [1] | HOSE AS | |
| 2. | 163-5632Y | [1] | ACCUMULATOR GP-BRAKE(CHARGED) | |
| 3. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 4. | 171-1978 | [1] | TUBE AS | |
| 5. | 190-6278I | [1] | HOSE AS | |
| 6. | 190-6282 | [1] | TUBE AS | |
| 7. | 190-6290Y | [1] | VALVE GP-BRAKE CONTROL(PARKING) | |
| 8. | 202-3063 | [1] | BRACKET | |
| 9. | 221-5281I | [1] | HOSE AS | |
| 10. | 222-5608 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 222-5609 | [1] | ELBOW | |
| 11. | 222-6869 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2614 | [1] | CONNECTOR | |
| 12. | 148-8336 | [1] | CONNECTOR AS | |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 13. | 148-8340 | [1] | CONNECTOR AS | |
| | 6V-8639 | [1] | CONNECTOR | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 14. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 6V-9200 | [1] | ELBOW | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 15. | 148-8365 | [1] | ELBOW AS | |
| | 8T-6876 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 16. | 148-8375 | [1] | ELBOW AS | |
| | 6V-8981 | [1] | ELBOW | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| 17. | 148-8377 | [1] | ELBOW AS | |
| | 6V-8980 | [1] | ELBOW | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 18. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 19. | 5P-7462 | [2] | CLIP(SLOT) | |
| 20. | 5P-7463 | [2] | CLIP(TAB) | |
| 21. | 6V-0683 | [2] | GROMMET | |
| 22. | 6V-0852 | [1] | CAP-DUST | |
| 23. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 24. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 25. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 26. | 8T-1885 | [3] | CLIP(SLOT) | |
| 27. | 8T-1886 | [3] | CLIP(TAB) | |
| 28. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 30. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 31. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 32. | 8T-6870M | [2] | BOLT(M8X1.25X70-MM) | |
| 33. | 294-2547 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 101-4845 | [1] | PLUG-ORIFICE | |
| | 294-2630 | [1] | ELBOW | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
