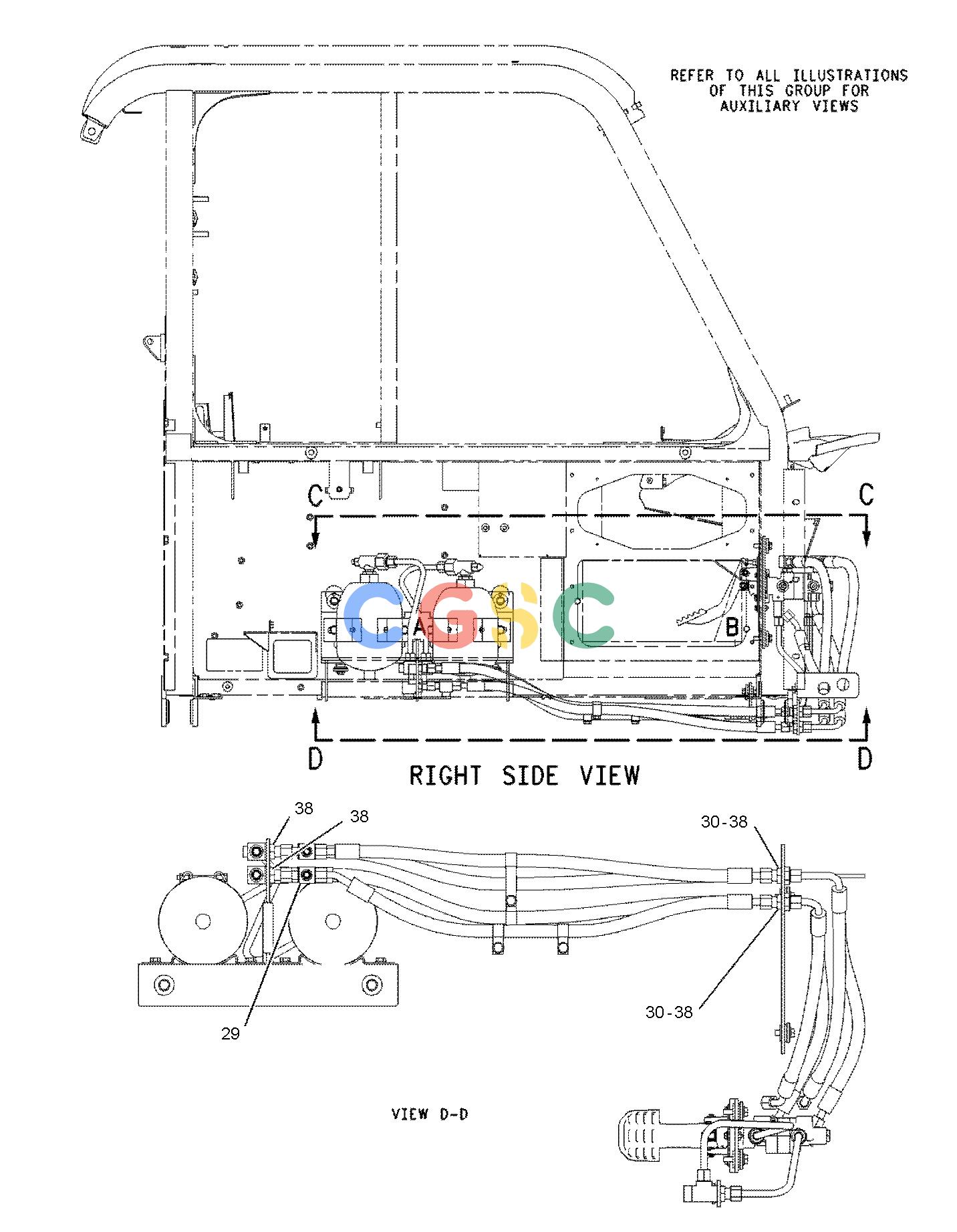

卡特零件查询（735） 200-8472: CONTROL GP-SERVICE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
749 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-2345 | [2] | ADAPTER-TEE | |
| 2. | 6N-6984 | [11] | MOUNT-RUBBER | |
| 3. | 9F-2167 | [2] | SCREW-PURGE(3/8-24X1.164-IN) | |
| 4. | 108-8393 | [2] | CAP | |
| 5. | 169-7403 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6G-3432 | [1] | ADAPTER | |
| 6. | 172-5761 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 126-8306 | [1] | TEE-O-RING | |
| 7. | 172-6525 | [1] | PLATE | |
| 8. | 179-4327 | [1] | TUBE AS | |
| 9. | 179-4328 | [1] | TUBE AS | |
| 10. | 180-8145 | [1] | SEAL | |
| 11. | 191-0888 | [1] | PLATE | |
| 12. | 194-4072Y | [1] | ACCUMULATOR GP-BRAKE(CHARGED) | |
| 13. | 217-9037 | [1] | VALVE GP-BRAKE CONTROL(SERVICE) | |
| | 204-0281L | [1] | PEDAL GP-BRAKE | |
| | 217-9036P | [1] | VALVE AS-BRAKE(SERVICE) | |
| 14. | 200-8473 | [1] | PLATE AS | |
| 15. | 200-8475 | [1] | TUBE AS | |
| 16. | 200-8476 | [1] | TUBE AS | |
| 17. | 200-8481 | [1] | GASKET | |
| 18. | 208-7969I | [1] | HOSE AS | |
| 19. | 208-7970I | [1] | HOSE AS | |
| 20. | 208-7971I | [1] | HOSE AS | |
| 21. | 208-7972I | [1] | HOSE AS | |
| 22. | 208-7973I | [1] | HOSE AS | |
| 23. | 208-7974I | [1] | HOSE AS | |
| 24. | 208-7975I | [1] | HOSE AS | |
| 25. | 209-9136I | [1] | HOSE AS | |
| 26. | 148-8364 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 27. | 148-8418 | [2] | REDUCER AS(ORFS) | |
| | | | (EACH INCLUDES) |
| | 6V-8942 | [1] | REDUCER-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 28. | 148-8427 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 8T-6895 | [1] | TEE-UNION | |
| | 6V-8398 | [3] | SEAL-O-RING | |
| 29. | 148-8444 | [2] | TEE AS-SWIVEL | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 30. | 148-8457 | [4] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 31. | 153-6241 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8C-8989 | [1] | ELBOW | |
| 32. | 164-5580 | [1] | TEE AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9489 | [1] | TEE-BULKHEAD | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 33. | 164-6864 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8T-1810 | [1] | ELBOW | |
| 34. | 164-8908 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-0077 | [1] | CONNECTOR | |
| 35. | 3D-2824 | [2] | SEAL-O-RING | |
| 36. | 6V-1228 | [1] | CLIP | |
| 37. | 6V-8556 | [2] | NUT(1-3/16-12-THD) | |
| 38. | 6V-9169 | [9] | NUT(13/16-16-THD) | |
| 39. | 6V-9746 | [2] | SEAL-O-RING | |
| 40. | 8M-4069 | [11] | WASHER(10.3X38.1X5-MM THK) | |
| 41. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 42. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 43. | 8T-4186M | [6] | BOLT(M10X1.5X40-MM) | |
| 44. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 45. | 8T-4971M | [3] | BOLT(M6X1X30-MM) | |
| 46. | 9X-8250 | [4] | CLIP | |
| 47. | 9X-8256 | [3] | WASHER(6.6X12X2-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 204-0275L | [1] | KIT-REPAIR | |
| | | | (INCLUDES CLIP, BUSHING & BEARING) |
| | 204-0273P | [1] | KIT-REPAIR | |
| | | | (INCLUDES SEALS & BOOT) |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | Y | | SEPARATE ILLUSTRATION |
