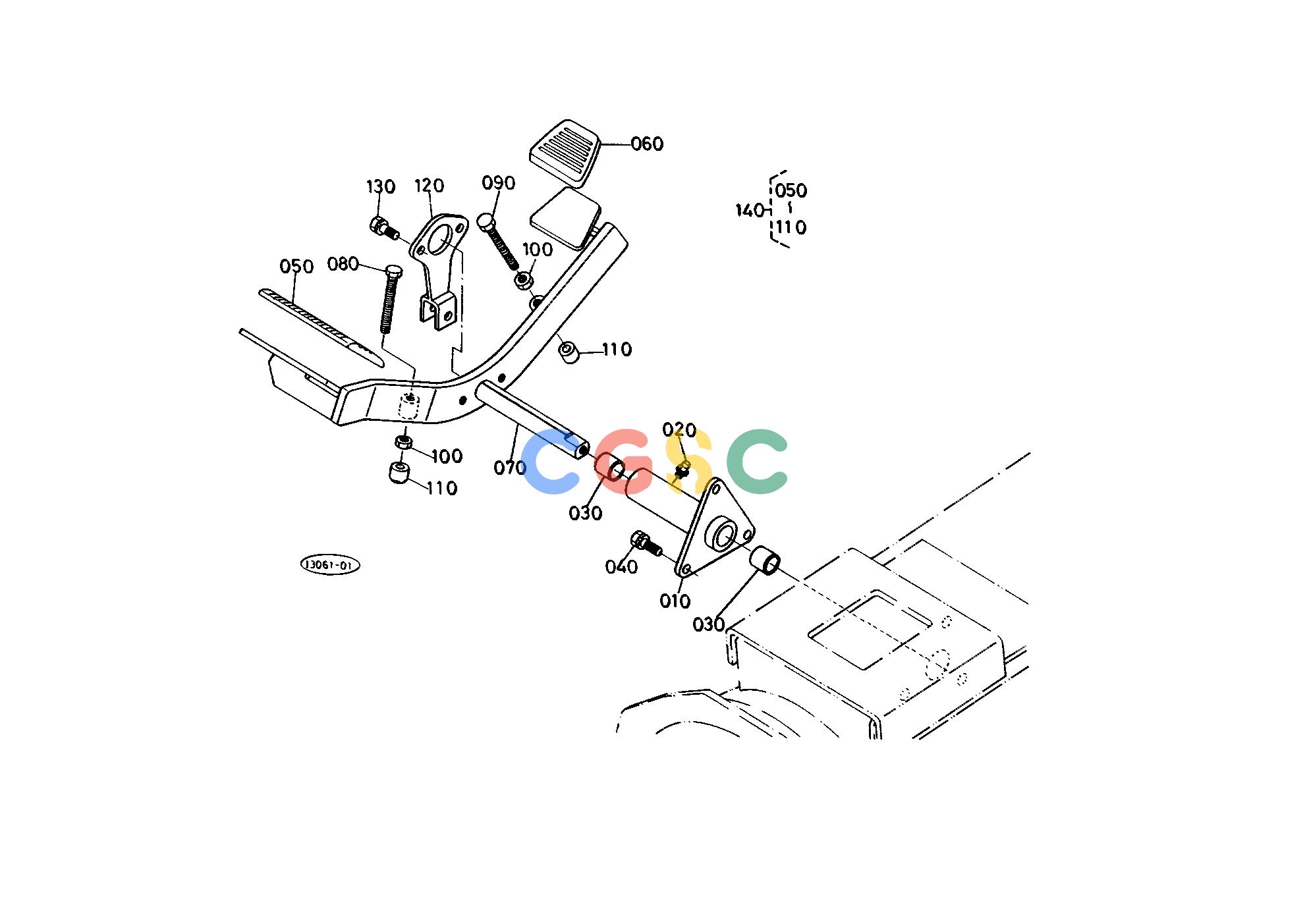

久保田零件查询T06000 SPEED CONTROL PEDAL TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6630143370
|
[1] |
HOLDER PEDAL
|
1.1000(lbs); 0.500
|
| 020. |
6721142940
|
[1] |
NIPPLE GREASE
|
0.0022(lbs); 0.001
|
| 030. |
6620443550
|
[2] |
BUSH
|
0.0000(lbs); 0.000
|
| 030. |
0851101815
|
[7] |
BUSH
|
0.0154(lbs); 0.007
|
| 040. |
0112350820
|
[3] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
6620443390
|
[1] |
COVER PEDAL FRONT
|
0.1320(lbs); 0.060
|
| 060. |
6620443410
|
[1] |
COVER PEDAL REAR
|
0.1320(lbs); 0.060
|
| 070. |
6636143380
|
[1] |
PEDAL SPEED CHANGE
|
3.0800(lbs); 1.400
|
| 080. |
0115250860
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 090. |
0115250850
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 100. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 110. |
6630143390
|
[2] |
CUSHION
|
0.0044(lbs); 0.002
|
| 120. |
6630143410
|
[1] |
BRACKET DAMPER
|
0.2640(lbs); 0.120
|
| 130. |
0112350816
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 140. |
6636143300
|
[1] |
ASSY PEDAL S-CHANGE
|
3.5420(lbs); 1.610
|
