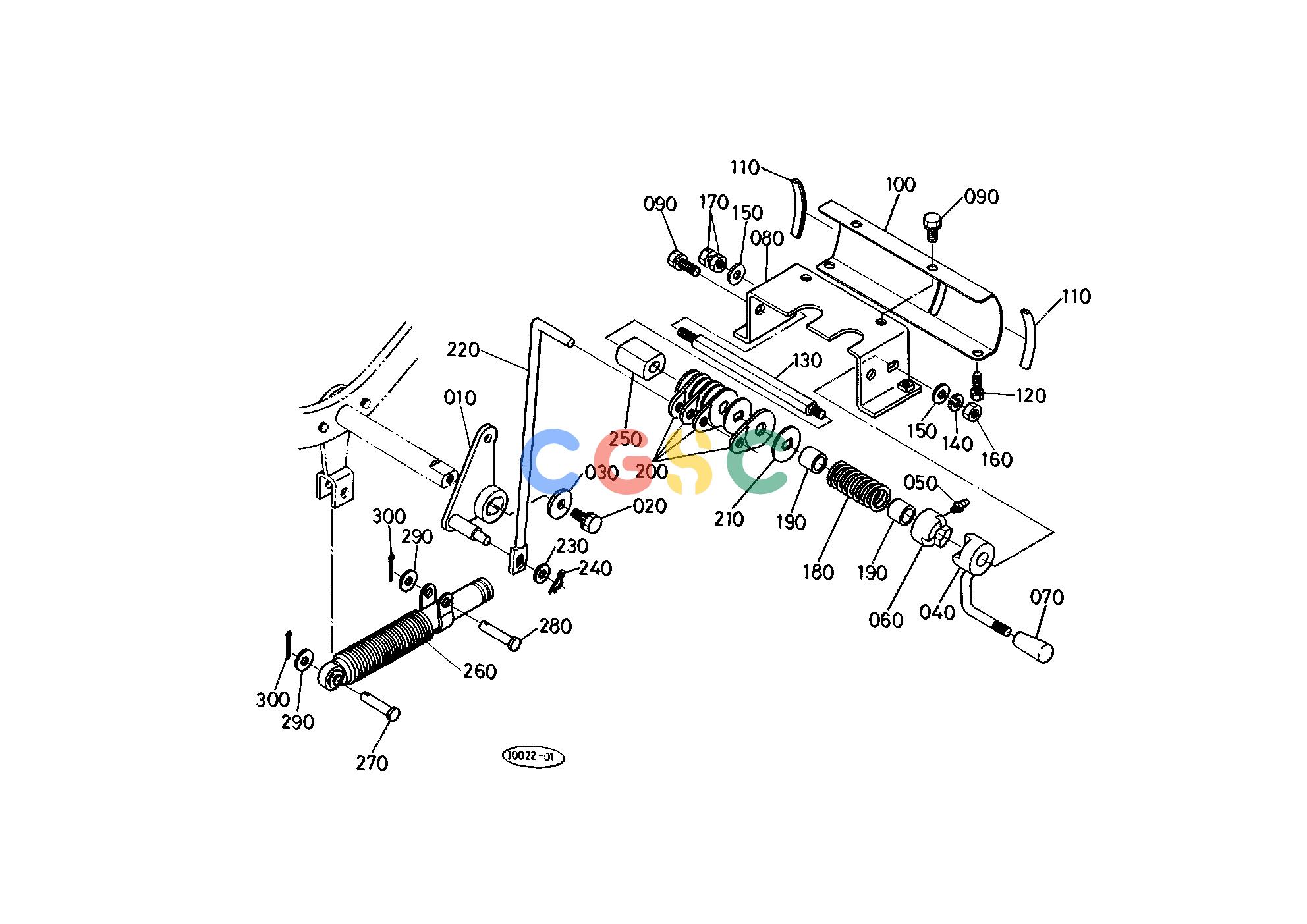

久保田零件查询T06100 SPEED CHANGE PLATE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6630143420
|
[1] |
PLATE SPEED CHANGE
|
0.4400(lbs); 0.200
|
| 020. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 030. |
6630143430
|
[1] |
WASHER PLAIN
|
0.0352(lbs); 0.016
|
| 040. |
6630143510
|
[1] |
CAM
|
0.1650(lbs); 0.075
|
| 050. |
6721142940
|
[1] |
NIPPLE GREASE
|
0.0022(lbs); 0.001
|
| 060. |
6630143520
|
[1] |
CAM
|
0.2640(lbs); 0.120
|
| 070. |
3325180170
|
[1] |
GRIP
|
0.0176(lbs); 0.008
|
| 080. |
6630143560
|
[1] |
BRACKET
|
0.7700(lbs); 0.350
|
| 090. |
0112350816
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 100. |
6630143570
|
[1] |
COVER
|
0.2728(lbs); 0.124
|
| 110. |
6630143550
|
[2] |
COVER PROTECTOR
|
0.0066(lbs); 0.003
|
| 120. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 130. |
6630143580
|
[1] |
BOLT
|
0.2596(lbs); 0.118
|
| 140. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 150. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 160. |
0205450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 170. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 180. |
6630143590
|
[1] |
SPRING
|
0.1540(lbs); 0.070
|
| 190. |
6630143660
|
[2] |
SEALING
|
0.0066(lbs); 0.003
|
| 200. |
6630143610
|
[4] |
LEVER DISK
|
0.0220(lbs); 0.010
|
| 210. |
6630143620
|
[5] |
PLATE STEEL
|
0.0264(lbs); 0.012
|
| 220. |
6630143630
|
[1] |
ROD
|
0.2750(lbs); 0.125
|
| 230. |
0471700800
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 240. |
0551550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 250. |
6630143640
|
[1] |
GUIDE
|
0.1760(lbs); 0.080
|
| 260. |
6630143710
|
[1] |
DAMPER LEVER
|
0.5940(lbs); 0.270
|
| 270. |
0512250830
|
[1] |
PIN JOINT
|
0.0308(lbs); 0.014
|
| 280. |
0512250835
|
[1] |
PIN JOINT
|
0.0330(lbs); 0.015
|
| 290. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 300. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
