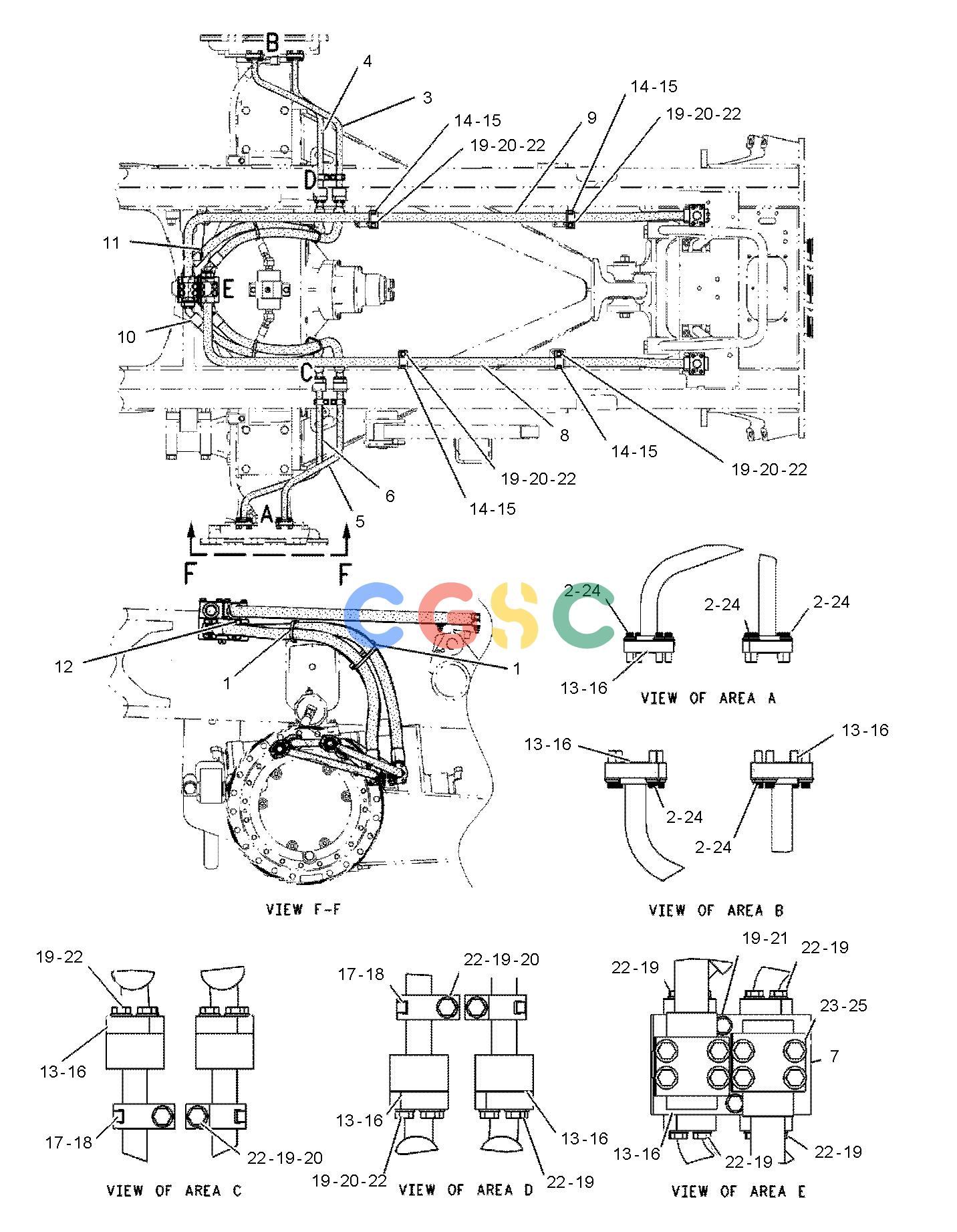

卡特零件查询（735） 166-3946: LINES GP-BRAKE COOLING
广数供应链运营团队, 15 02月, 2025，浏览：
484 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [4] | STRAP | |
| 2. | 118-9573M | [16] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| 3. | 153-2942 | [1] | TUBE AS | |
| 4. | 153-2943 | [1] | TUBE AS | |
| 5. | 153-2944 | [1] | TUBE AS | |
| 6. | 153-2945 | [1] | TUBE AS | |
| 7. | | [1] | MANIFOLD |
| 8. | 162-5532 | [1] | TUBE AS | |
| 9. | 162-5533 | [1] | TUBE AS | |
| 10. | 195-3763I | [2] | HOSE AS | |
| 11. | 197-4926I | [2] | HOSE AS | |
| 12. | 1P-3705 | [2] | SEAL-RECTANGULAR | |
| 13. | 4J-0520 | [12] | SEAL-O-RING | |
| 14. | 7S-8920 | [4] | CLIP(SLOT) | |
| 15. | 7S-8921 | [4] | CLIP(TAB) | |
| 16. | 8C-3206 | [24] | FLANGE-HALF | |
| 17. | 8T-1889 | [4] | CLIP(SLOT) | |
| 18. | 8T-1890 | [4] | CLIP(TAB) | |
| 19. | 8T-4121 | [50] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 21. | 8T-4178M | [2] | BOLT(M10X1.5X90-MM) | |
| 22. | 8T-4196M | [40] | BOLT(M10X1.5X35-MM) | |
| 23. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 24. | 8T-4896 | [16] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 25. | 8T-6868M | [8] | BOLT(M12X1.75X80-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
