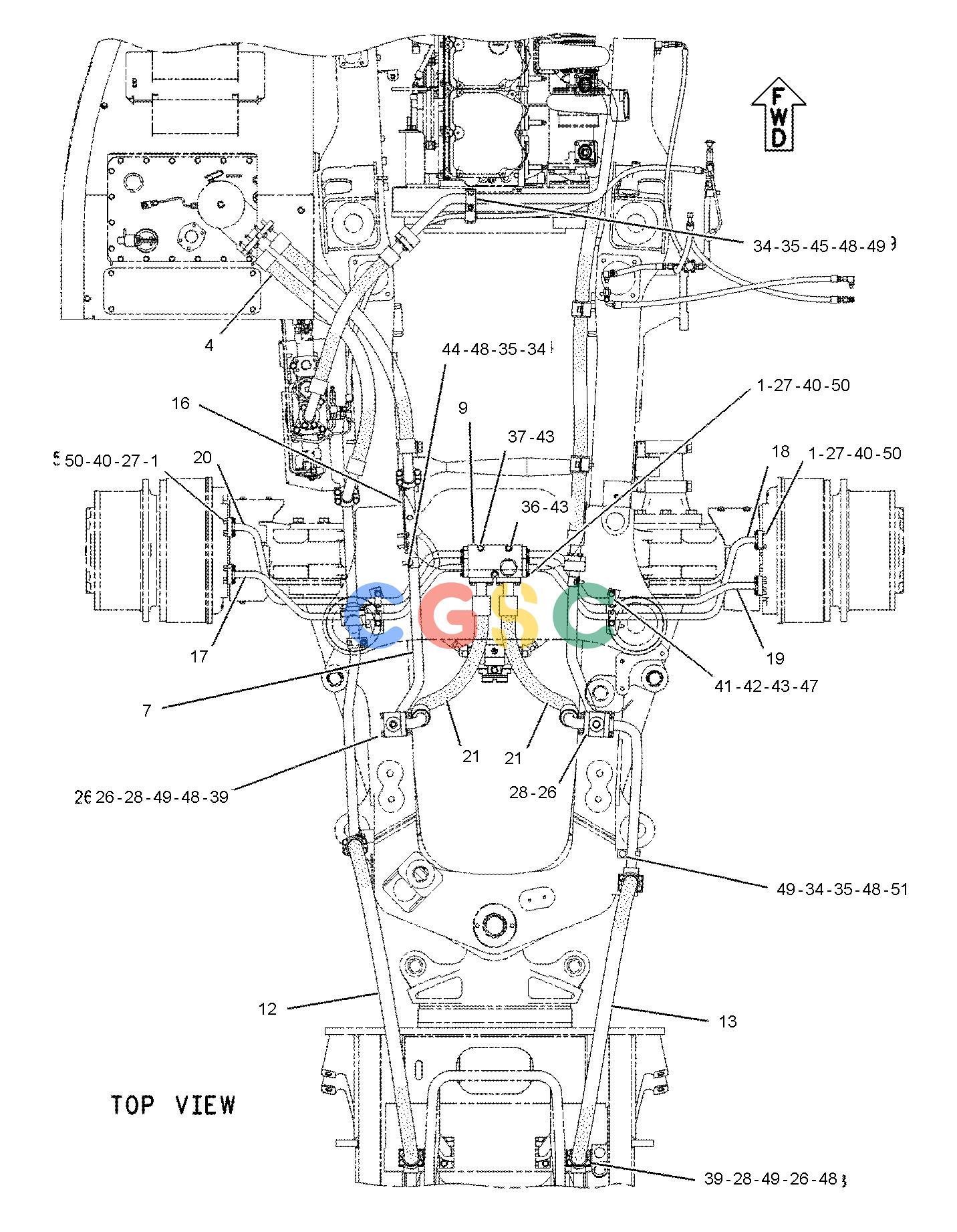

卡特零件查询（735） 166-3950: LINES GP-BRAKE COOLING
广数供应链运营团队, 15 02月, 2025，浏览：
924 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 118-9573M | [32] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| 2. | 147-7330 | [4] | FLANGE-HALF | |
| 3. | 190-0879 | [1] | TUBE AS | |
| 4. | 190-0881I | [2] | HOSE AS | |
| 5. | 192-8687 | [1] | TUBE AS | |
| 6. | 192-8688 | [1] | TUBE AS | |
| 7. | 192-8689 | [1] | TUBE AS | |
| 8. | 194-0708 | [1] | TUBE AS | |
| 9. | 194-4016 | [1] | MANIFOLD | |
| 10. | 194-4018 | [1] | ANGLE | |
| 11. | 194-5013 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 12. | 194-6932I | [1] | HOSE AS | |
| 13. | 194-6933I | [1] | HOSE AS | |
| 14. | 194-6963I | [1] | HOSE AS | |
| 15. | 194-8472 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 16. | 195-3243 | [1] | PLATE | |
| 17. | 199-3624 | [1] | TUBE AS | |
| 18. | 199-3625 | [1] | TUBE AS | |
| 19. | 199-3626 | [1] | TUBE AS | |
| 20. | 199-3627 | [1] | TUBE AS | |
| 21. | 199-4150I | [2] | HOSE AS | |
| 22. | 203-6942 | [1] | TUBE AS | |
| 23. | 216-7657I | [1] | HOSE AS | |
| 24. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 25. | 1N-5998 | [1] | PLUG | |
| 26. | 1P-4579 | [34] | FLANGE-HALF | |
| 27. | 4J-0520 | [8] | SEAL-O-RING | |
| 28. | 4J-0524 | [19] | SEAL-O-RING | |
| 29. | 4L-9337 | [8] | BOLT(3/8-16X1.5-IN) | |
| 30. | 5P-7470 | [2] | CLIP(SLOT) | |
| 31. | 5P-7471 | [2] | CLIP(TAB) | |
| 32. | 5P-7703 | [2] | GROMMET(52-MM ID) | |
| 33. | 6K-6307 | [1] | SEAL-O-RING | |
| 34. | 7S-8920 | [8] | CLIP(SLOT) | |
| 35. | 7S-8921 | [8] | CLIP(TAB) | |
| 36. | 7X-2543M | [2] | BOLT(M10X1.5X120-MM) | |
| 37. | 7X-2544M | [1] | BOLT(M10X1.5X140-MM) | |
| 38. | 7X-2549M | [4] | BOLT(M12X1.75X100-MM) | |
| 39. | 7X-2550M | [12] | BOLT(M12X1.75X110-MM) | |
| 40. | 8C-3206 | [16] | FLANGE-HALF | |
| 41. | 8T-1889 | [4] | CLIP(SLOT) | |
| 42. | 8T-1890 | [4] | CLIP(TAB) | |
| 43. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 44. | 8T-4139M | [13] | BOLT(M12X1.75X30-MM) | |
| 45. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 46. | 8T-4184M | [44] | BOLT(M12X1.75X45-MM) | |
| 47. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 48. | 8T-4223 | [105] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 49. | 8T-4244M | [25] | NUT(M12X1.75-THD) | |
| 50. | 8T-4896 | [41] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 51. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 52. | 8T-5001M | [3] | BOLT(M12X1.75X130-MM) | |
| 53. | 8T-5041M | [1] | BOLT(M12X1.75X120-MM) | |
| 54. | 9B-7237 | [1] | BOLT(3/8-16X1.25-IN) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
