卡特零件查询（735） 190-6280: LINES GP-SERVICE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
589 次

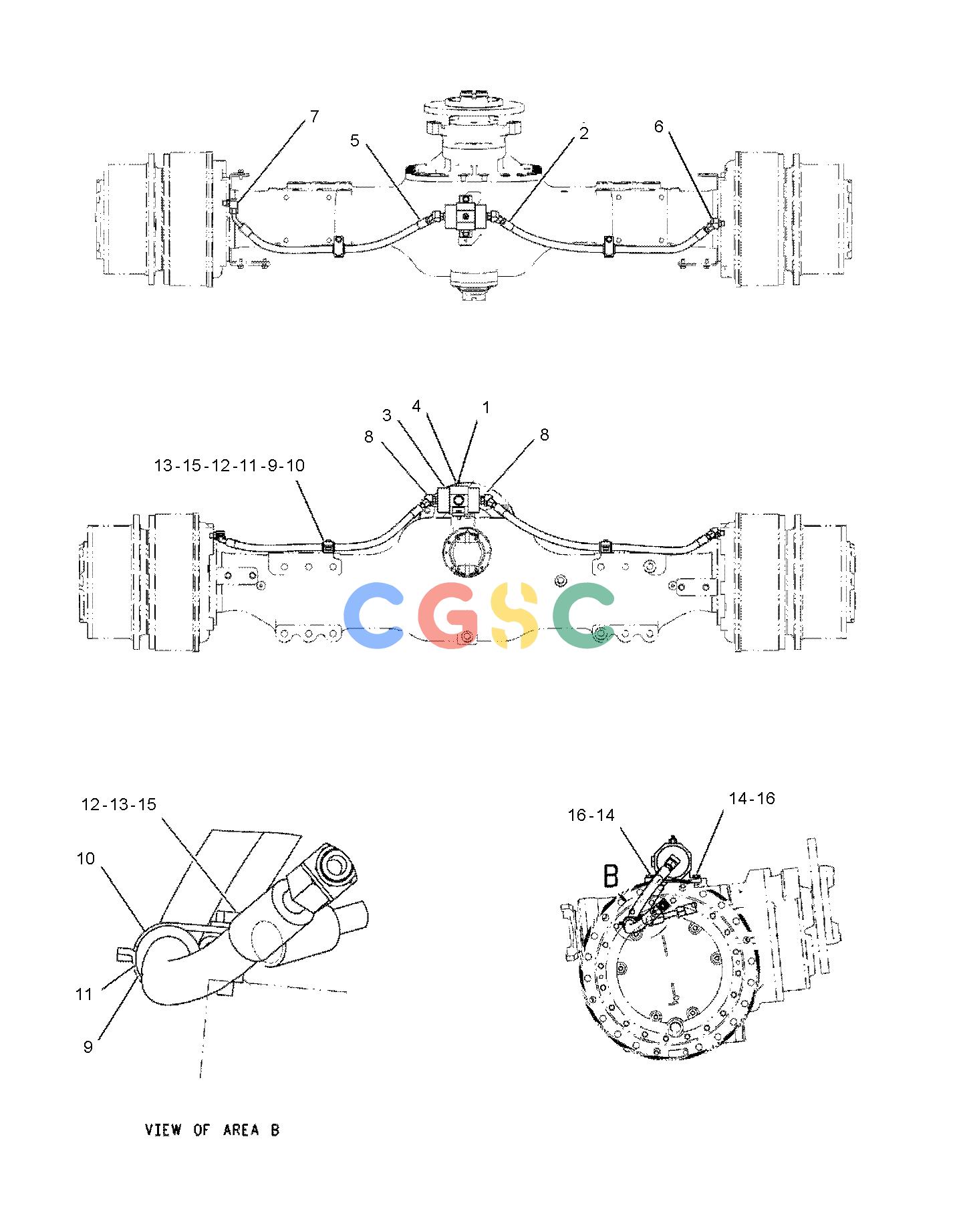

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9F-2167 | [1] | SCREW-PURGE(3/8-24X1.164-IN) | |
| 2. | 163-8374I | [1] | HOSE AS | |
| 3. | 169-3655Y | [1] | SLACK ADJUSTER GP | |
| 4. | 169-7403 | [1] | ADAPTER AS | |
| | 6G-3432 | [1] | ADAPTER | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 5. | 190-6281I | [1] | HOSE AS | |
| 6. | 150-3037 | [1] | ELBOW AS | |
| | 8T-2530 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 7. | 150-4048 | [1] | ELBOW AS | |
| | 6V-8722 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 8. | 155-3504 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9003 | [1] | ELBOW | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 9. | 5P-7464 | [2] | CLIP(SLOT) | |
| 10. | 5P-7465 | [2] | CLIP(TAB) | |
| 11. | 6V-7359 | [2] | GROMMET(25-MM ID, 37-MM OD) | |
| 12. | 3J-5696 | [2] | PIPE | |
| 13. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 15. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 16. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
