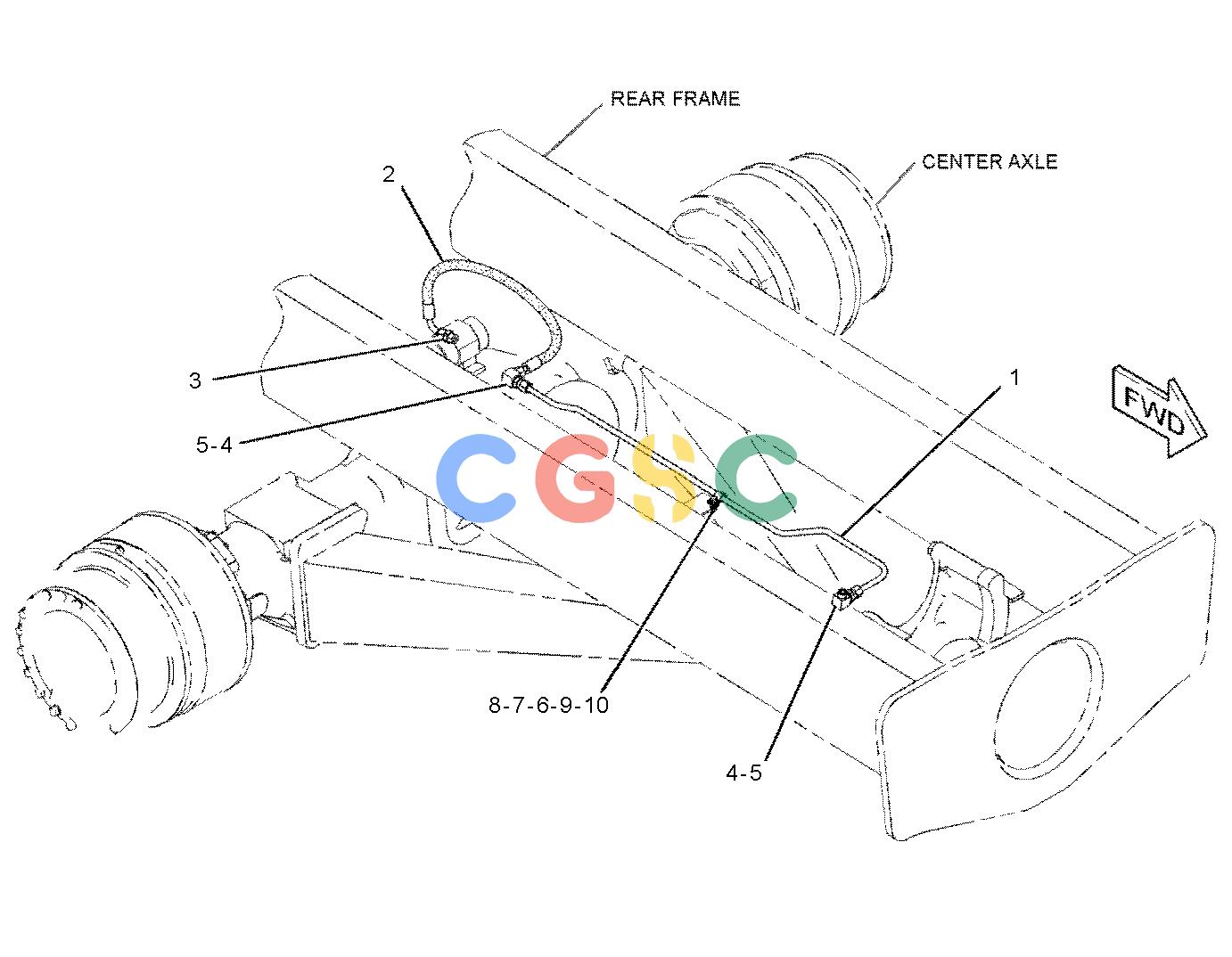

卡特零件查询（735） 152-7033: LINES GP-SERVICE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 171-1977 | [1] | TUBE AS | |
| 2. | 177-0105I | [1] | HOSE AS | |
| 3. | 148-8341 | [1] | CONNECTOR AS | |
| | 6V-8713 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 4. | 169-7404 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8982 | [1] | ELBOW | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 5. | 6V-9170 | [2] | NUT-BULKHEAD(1-14-THD) | |
| 6. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 8. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 9. | 9R-1004 | [1] | CLIP(TAB) | |
| 10. | 9R-1005 | [1] | CLIP(SLOT) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
