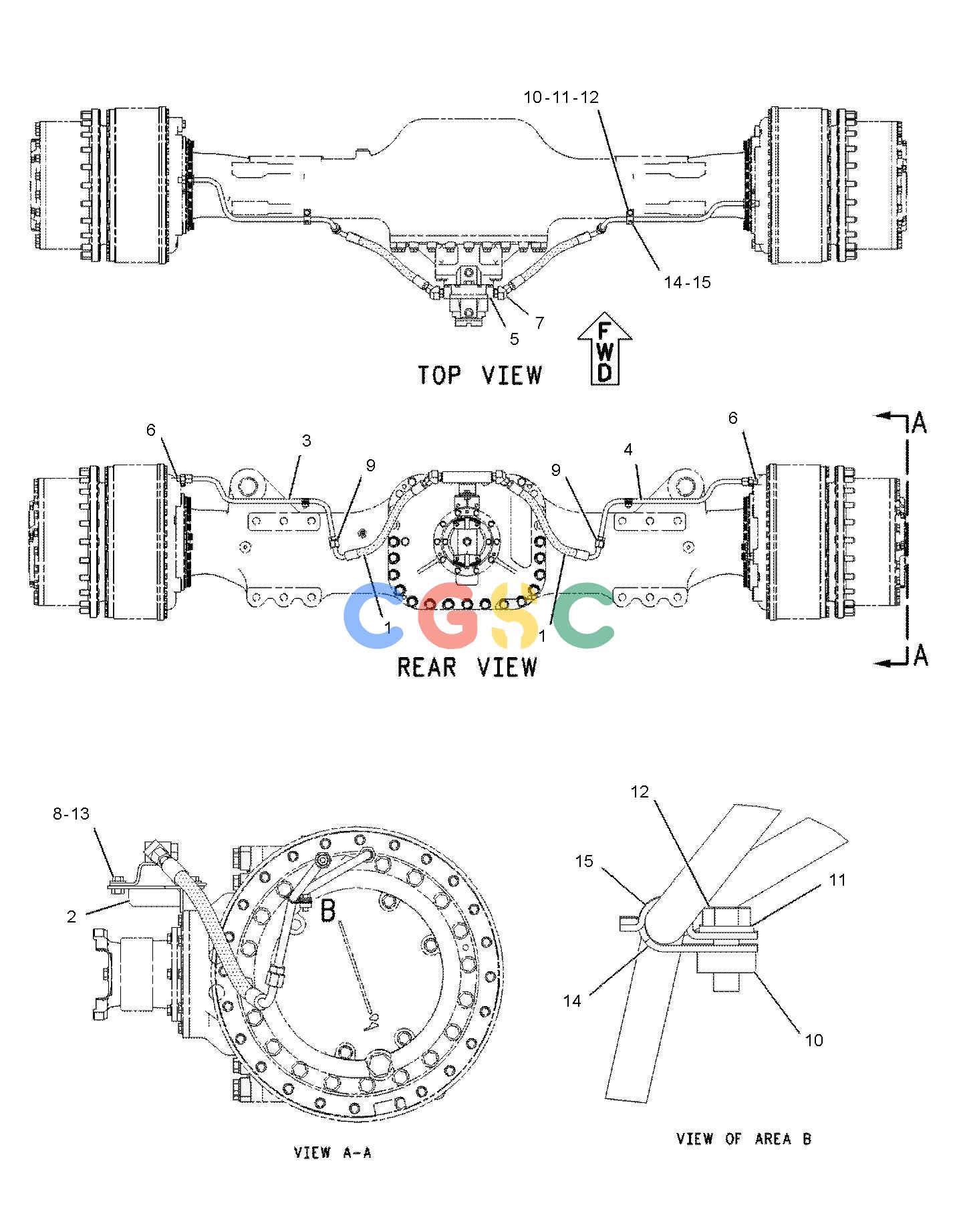

卡特零件查询（735） 226-7365: LINES GP-SERVICE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
285 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9R-3695I | [2] | HOSE AS | |
| 2. | 151-9817 | [1] | BRACKET AS | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 3. | 198-6823 | [1] | TUBE AS | |
| 4. | 198-6824 | [1] | TUBE AS | |
| 5. | 224-2454 | [1] | MANIFOLD AS | |
| 6. | 148-8342 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8632 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 7. | 155-3504 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9003 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 8. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 9. | 7J-9108 | [2] | SEAL-O-RING | |
| 10. | 7X-0732 | [2] | WASHER-HARD(10X22.5X8-MM THK) | |
| 11. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 14. | 9R-1004 | [2] | CLIP(TAB) | |
| 15. | 9R-1005 | [2] | CLIP(SLOT) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
